Instruments - Offset, 1969-89

Part No: LWZ403
  In Stock
£0.25 inc VAT
£0.21 ex VAT
Part No: 13H5270
  In Stock
BULBHOLDER-SMITHS OFFSET INSTRUMENT PACK
Required Quantity: As Required
4 points earn (£0.04)
£4.92 inc VAT
£4.10 ex VAT
Part No: 13H5891
  Available to Customer Order
£0.00 inc VAT
£0.00 ex VAT
Part No: 13H5892
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 13H5893
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 13H5894
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 13H5898
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 13H5899
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 13H5900
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 13H5941
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 13H5943
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 13H9346
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 13H9348
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 13H9350
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 13H9352
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 13H9354
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 13H9356
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 13H9418
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 13H9420
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 37H4659
  In Stock
£0.95 inc VAT
£0.79 ex VAT
Part No: 37H4880
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 37H4881
  In Stock

53 points earn (£0.53)
£64.09 inc VAT
£53.41 ex VAT
Part No: 37H4882
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 37H4883
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 37H4884
  No Longer Available
RING-SLIP-SMITHS OFFSET GAUGES
Required Quantity: 2/3
£0.00 inc VAT
£0.00 ex VAT
Part No: 37H4885
  No Longer Available
GLASS-SMITHS OFFSET INSTRUMENTS
Required Quantity: 2/3
£0.00 inc VAT
£0.00 ex VAT
Part No: 37H4887
  No Longer Available
USE: YYH10003
Required Quantity: 3
£0.00 inc VAT
£0.00 ex VAT
Part No: 37H4888
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 37H4889
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 37H4890
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 37H4891
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 37H4895
  No Longer Available
USE: BAU1930
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: 5L90
  In Stock
£0.94 inc VAT
£0.78 ex VAT
Part No: AAU1866
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: AAU4948
  No Longer Available
USE: CA110001C
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: ADU1197
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: ADU2277
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: ADU2279
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: ADU2281
  Available to Customer Order
91 points earn (£0.91)
£110.36 inc VAT
£91.97 ex VAT
Part No: ADU2283
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: ADU2291
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: ADU2293
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: ADU6142
  In Stock

214 points earn (£2.14)
£257.40 inc VAT
£214.50 ex VAT
Part No: ADU6144
  Available to Customer Order
71 points earn (£0.71)
£85.73 inc VAT
£71.44 ex VAT
Part No: ADU6455
  Available to Customer Order
27 points earn (£0.27)
£32.48 inc VAT
£27.07 ex VAT
Part No: ADU6456
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: ADU6974
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: AFU2770
  No Longer Available
USE: 5L90
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: BAU1930
  In Stock

49 points earn (£0.49)
£59.16 inc VAT
£49.30 ex VAT
Part No: BAU2055
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: BAU2056
  Available to Customer Order
£0.43 inc VAT
£0.36 ex VAT
Part No: BAU2058
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: BAU2264
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: BAU2265
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: BAU2266
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: BAU5296
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: BAU5402
  In Stock

163 points earn (£1.63)
£196.68 inc VAT
£163.90 ex VAT
Part No: BAU5403
  In Stock
47 points earn (£0.47)
£57.47 inc VAT
£47.89 ex VAT
Part No: BAU5404
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: BAU5405
  In Stock
60 points earn (£0.60)
£72.60 inc VAT
£60.50 ex VAT
Part No: BAU5406
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: BAU5407
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: BAU5408
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: BAU5409
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: BMK1539A
  In Stock
13 points earn (£0.13)
£16.70 inc VAT
£13.92 ex VAT
Part No: CZG3178
  No Longer Available
USE: DA608041
Required Quantity: 3/4
£0.00 inc VAT
£0.00 ex VAT
Part No: GLB2132
  In Stock
£1.15 inc VAT
£0.96 ex VAT
Part No: GPS133
  In Stock
4 points earn (£0.04)
£5.40 inc VAT
£4.50 ex VAT
Part No: GSD402
  No Longer Available
USE: GSD487
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: GSD415
  In Stock

8 points earn (£0.08)
£10.72 inc VAT
£8.93 ex VAT
Part No: GTR101
  In Stock

5 points earn (£0.05)
£6.18 inc VAT
£5.15 ex VAT
Part No: PTP603
  In Stock
£0.84 inc VAT
£0.70 ex VAT
Part No: RFR208
  No Longer Available
USE: RFN306
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Offset Instruments, 1969-89
The parts listed in this section are for the instrument packs manufactured by Smiths and latterly Lucas, from 1969-89. From late 1989 onwards, Minis used instruments which, while appearing at first glance to be a continuation of the Smiths design, were in many ways quite different in construction and operation. These later instruments, manufactured by Nippon Seiki, are detailed in the next section.

Speedometers
These speedometers are calibrated for use on the models shown, so long as original wheel and tyre dimensions are also used and the original ratio final drive (differential) is fitted. Any variation from standard wheel dimensions or final drive ratio will probably - unless you are very careful - change the overall gearing of the car and will result in the speedometer requiring recalibration.

Some speedometers are available as outright new purchases. Others are not and in these instances a reconditioned unit may be offered, in exchange for your old speedometer assembly. This process is dependent on your old speedometer being in a reconditionable state; if it isn't, or you have no old speedometer to exchange, a surcharge will be levied. Please see our price list or contact us to find out whether your speedometer is available new or as a reconditioned exchange item.

To identify your old speedometer before ordering a replacement, you will find an 'SN' number in small print on the face of the instrument. This is the original Smiths Instruments part number, and it can be cross-referenced to the BMC/BL/Rover part number shown below. By the way, the 'TPM' figure also displayed in small print on the face indicates the number of turns per mile the speedometer is calibrated for. Two different speedometers with the same TPM figure will work just as effectively on the same car.

Clubman Saloon and Estate, 1275 GT and Special, 1969-80

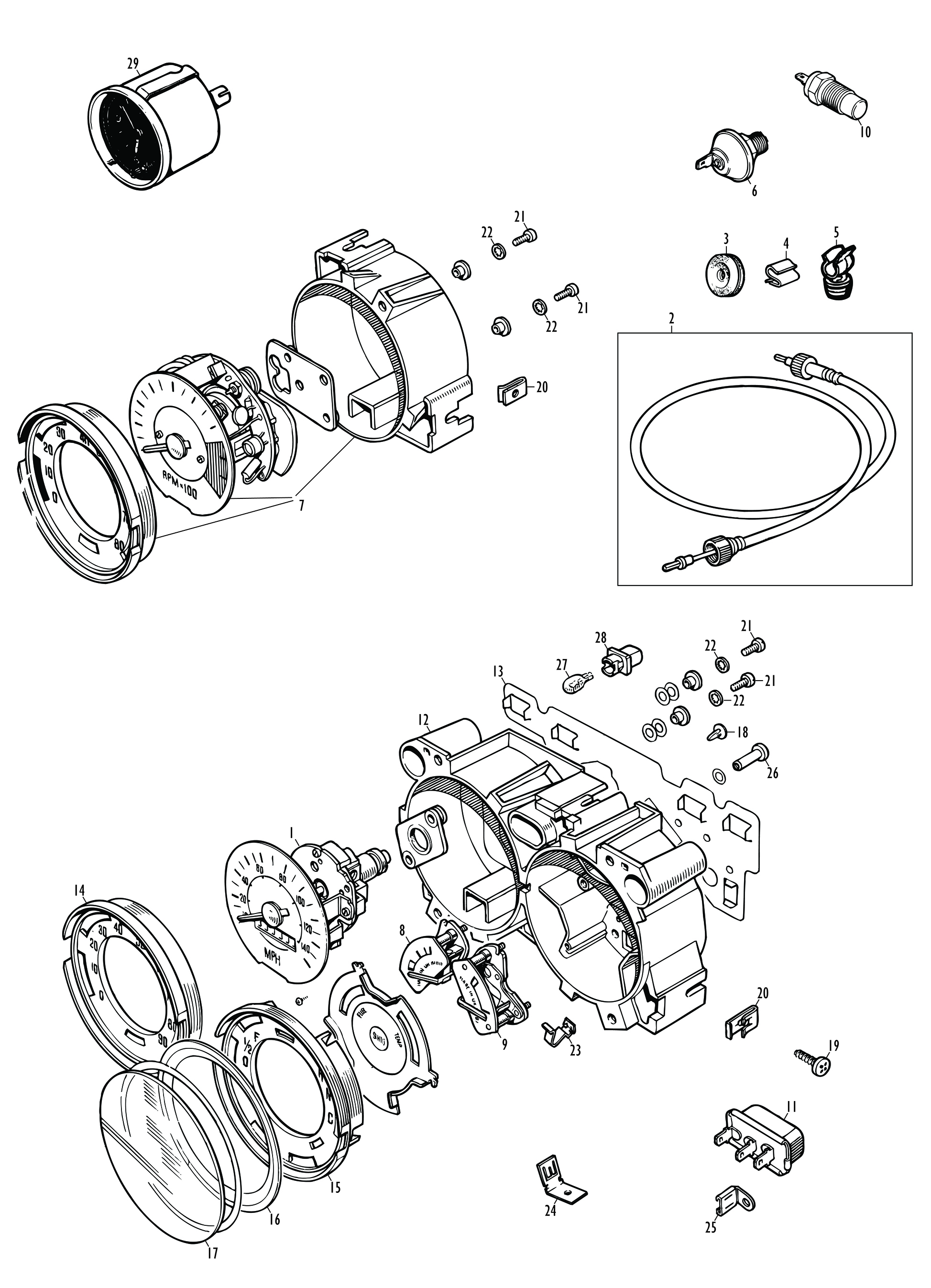

Ill. No. Part No. Description Qty. Rqd. Remarks
1 13H5891 SPEEDOMETER ASSEMBLY, black face, MPH 1 SNT3328/00; Clubman manual, 1969-73.
  13H9346 SPEEDOMETER ASSEMBLY, black face, MPH 1 SNT3328/00AS; Clubman manual, 1973-75.
  ADU2281 SPEEDOMETER ASSEMBLY, black face, MPH 1 SNT3328/00SA; Clubman manual, 1975-80.
  13H5941 SPEEDOMETER ASSEMBLY, black face, MPH 1 SNT3328/06; Clubman automatic, 1969-73.
  13H9354 SPEEDOMETER ASSEMBLY, black face, MPH 1 SNT3328/06AS; Clubman automatic, 1973-75.
  ADU2291 SPEEDOMETER ASSEMBLY, black face, MPH 1 SNT3328/06SA; Clubman automatic, 1975-80.
  13H5898 SPEEDOMETER ASSEMBLY, black face, MPH 1 SNT3328/02; 1275 GT, 1969-70.
  13H9350 SPEEDOMETER ASSEMBLY, black face, MPH 1 SNT3328/16 or 16AS; 1275 GT, 1970-74.
  13H9418 SPEEDOMETER ASSEMBLY, black face, MPH 1 SNT3328/18S; 1275 GT, 1974-75.
  ADU2277 SPEEDOMETER ASSEMBLY, black face, MPH 1 SNT3328/18SA; 1275 GT, 1975-80.
  13H9418 SPEEDOMETER ASSEMBLY, black face, MPH 1 SNT3328/18S; Mini Special, 1979.
  13H5892 SPEEDOMETER ASSEMBLY, black face, KPH 1 SNT3328/01; Clubman manual, 1969-73.
  13H9348 SPEEDOMETER ASSEMBLY, black face, KPH 1 SNT3328/01AS; Clubman manual, 1973-75.
  ADU2283 SPEEDOMETER ASSEMBLY, black face, KPH 1 SNT3328/01SA; Clubman manual, 1975-80.
  13H5943 SPEEDOMETER ASSEMBLY, black face, KPH 1 SNT3328/07; Clubman automatic, 1969-73.
  13H9356 SPEEDOMETER ASSEMBLY, black face, KPH 1 SNT3328/07AS; Clubman automatic, 1973-75.
  ADU2293 SPEEDOMETER ASSEMBLY, black face, KPH 1 SNT3328/07SA; Clubman automatic, 1975-80.
  13H5899 SPEEDOMETER ASSEMBLY, black face, KPH 1 SNT3328/03; 1275 GT, 1969-70.
  13H9352 SPEEDOMETER ASSEMBLY, black face, KPH 1 SNT3328/17 or 17AS; 1275 GT, 1970-74.
  13H9420 SPEEDOMETER ASSEMBLY, black face, KPH 1 SNT3328/19S; 1275 GT, 1974-75.
  ADU2279 SPEEDOMETER ASSEMBLY, black face, KPH 1 SNT3328/19SA; 1275 GT, 1975-80.
  ADU2279 SPEEDOMETER ASSEMBLY, black face, KPH 1 SNT3328/19SA; Mini Special, 1977-80.

HL Saloon and Estate, HLE, Mayfair, Special, Sprite and Mini 25, 1980-85
All Models, 1985-89
Ill. No. Part No. Description Qty. Rqd. Remarks
  ADU2281 SPEEDOMETER ASSEMBLY, black face, MPH 1 SNT3328/00SA; HL manual, 1980-82.
  ADU2291 SPEEDOMETER ASSEMBLY, black face, MPH 1 SNT3328/06SA; HL automatic, 1980-82.
  ADU6142 SPEEDOMETER ASSEMBLY, black face, MPH 1 SNT3328/23; HLE and Mayfair, 1982-85.
  ADU2277 SPEEDOMETER ASSEMBLY, black face, MPH 1 SNT3328/18SA; Sprite and Mini 25, 1983-84.
  BAU5402 SPEEDOMETER ASSEMBLY, black face, MPH 1 SNT3328/30; all models, 1985-89.
  ADU2283 SPEEDOMETER ASSEMBLY, black face, KPH 1 SNT3328/01SA; HL manual, 1980-82.
  ADU2293 SPEEDOMETER ASSEMBLY, black face, KPH 1 SNT3328/07SA; HL automatic, 1980-82.
  ADU6144 SPEEDOMETER ASSEMBLY, black face, KPH 1 SNT3328/24; HLE and Mayfair, 1982-85 except Europe.
  ADU2279 SPEEDOMETER ASSEMBLY, black face, KPH 1 SNT3328/19SA; HLE and Mayfair, 1982-85 Europe except Germany.
  BAU5296 SPEEDOMETER ASSEMBLY, black face, KPH 1 SNT3328/27; HLE and Mayfair, 1982-85 Germany.
  ADU6974 SPEEDOMETER ASSEMBLY, black face, KPH 1 SNT3328/25; HLE with 850 engine, 1982.
  ADU2279 SPEEDOMETER ASSEMBLY, black face, KPH 1 SNT3328/19SA; Mini Special, 1980-81 except Germany.
  BAU5296 SPEEDOMETER ASSEMBLY, black face, KPH 1 SNT3328/27; Mini Special, 1980-81 Germany.
  ADU2279 SPEEDOMETER ASSEMBLY, black face, KPH 1 SNT3328/19SA; Mini Sprite and Mini 25, 1983-84 except Germany.
  BAU5296 SPEEDOMETER ASSEMBLY, black face, KPH 1 SNT3328/27; Mini Sprite and Mini 25, 1983-84 Germany.
  BAU5403 SPEEDOMETER ASSEMBLY, black face, KPH 1 SNT3328/31; all models, 1985-89.

Speedometer Cables
Ill. No. Part No. Description Qty. Rqd. Remarks
2 GSD415 CABLE ASSEMBLY, speedometer 1 RHD.
  GSD402 CABLE ASSEMBLY, speedometer 1 LHD.
3 RFR208 GROMMET, cable through dash 1 If required.
4 5L90 CLIP, metal, cable to dash crossmember 1 1969-82.
5 AFU2770 CLIP, plastic, cable to dash crossmember 1 1982-89.

Oil Pressure Warning Light Switch
Ill. No. Part No. Description Qty. Rqd. Remarks
6 GPS133 SWITCH, oil pressure warning light 1 Operates warning light in instrument pack.

Tachometers
Please see the notes under 'Speedometers' for information about new and reconditioned exchange units.

Ill. No. Part No. Description Qty. Rqd. Remarks
7 13H5900 TACHOMETER ASSEMBLY, black face 1 RVI2435/00; 1275 GT, 1969-75.
  AAU1866 TACHOMETER ASSEMBLY, black face 1 RVC2430/00; 1275 GT, 1975-77.
  ADU1197 TACHOMETER ASSEMBLY, black face 1 RVC2433/00F; 1275GT, Special, Sprite and Mini 25, 1977-84.
  BAU5404 TACHOMETER ASSEMBLY, black face 1 Mayfair, plus certain limited editions, 1985-89.

Fuel and Temperature Gauges
Ill. No. Part No. Description Qty. Rqd. Remarks
8 13H5894 GAUGE, fuel, black face 1 BF8122/00; 1969-82.
  ADU6455 GAUGE, fuel, black face 1 1982-85.
  BAU5405 GAUGE, fuel, black face 1 1985-89.
9 13H5893 GAUGE, water temperature, black face 1 BT8120/00; 1969-82.
  ADU6456 GAUGE, water temperature, black face 1 1982-85.
  BAU5406 GAUGE, water temperature, black face 1 1985-89.
10 GTR101 TRANSMITTER, water temperature 1
11 BMK1539A VOLTAGE STABILIZER   BR1303/20.

Instrument Case and Fittings
Ill. No. Part No. Description Qty. Rqd. Remarks
12 37H4880 CASE, instrument 1
13 37H4881 CIRCUIT AND OVERLAY, printed 1 For twin instrument pack models.
  37H4895 CIRCUIT AND OVERLAY, printed 1 For triple instrument pack models, 1969-76.
  BAU1930 CIRCUIT AND OVERLAY, printed 1 For triple instrument pack models, 1976-89.
14 37H4882 MASK, speedometer, MPH (shows KPH) 1 Clubman and HL, 1969-82.
  37H4890 MASK, speedometer, MPH (shows KPH) 1 1275 GT, Special, Sprite and Mini 25, 1969-84.
  BAU2264 MASK, speedometer, MPH (shows KPH) 1 HLE and Mayfair, 1982-85.
  BAU5407 MASK, speedometer, MPH (shows KPH) 1 All models, 1985-89.
  37H4889 MASK, speedometer, KPH (shows MPH) 1 Clubman and HL, 1969-82.
  37H4891 MASK, speedometer, KPH (shows MPH) 1 1275 GT, Special, Sprite and Mini 25, 1969-84.
  BAU2265 MASK, speedometer, KPH (shows MPH) 1 HLE and Mayfair, 1982-85.
  BAU5408 MASK, speedometer, KPH (shows MPH) 1 All models, 1985-89.
15 37H4883 MASK, fuel and temperature gauges 1 All models except HLE and Mayfair, 1969-84.
  BAU2266 MASK, fuel and temperature gauges 1 HLE and Mayfair, 1982-85.
  BAU5409 MASK, fuel and temperature gauges 1 All models, 1985-89.
16 37H4884 RING, slip 2/3 Quantity increases for triple instrument pack models.
17 37H4885 GLASS, instrument 2/3 Quantity increases for triple instrument pack models.
18 37H4888 BUTTON, circuit to case 6/9 Quantity increases for triple instrument pack models.
19 CZG3178 SCREW, instrument pack securing 3/4 Quantity increases for triple instrument pack models.
20 37H4887 NUT, spire 3
21 PTP603 SCREW, instruments to case 4
22 LWZ403 WASHER, shakeproof 4
23 BAU2055 CLIP, instrument pack to cowl 4/6 Quantity increases for triple instrument pack models.
24 BAU2056 NUT, spring, cowl fastening 4
25 37H4659 CONNECTOR, female, Lucar 3
26 BAU2058 TUBE NUT, terminals 4
27 GLB2132 BULB, instrument illumination A/R
28 13H5270 BULB HOLDER A/R

Clock
Mini Special RHD, 1979
Ill. No. Part No. Description Qty. Rqd. Remarks
29 AAU4948 CLOCK, analogue 1
View as:
Show items
Items 1 to 12 of 73 total
1 2 3 4 5 6 ...
Part No: RFR208
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: PTP603
  In Stock
£0.84 inc VAT
£0.70 ex VAT
Part No: GTR101
  In Stock

5 points earn (£0.05)
£6.18 inc VAT
£5.15 ex VAT
Part No: GSD415
  In Stock

8 points earn (£0.08)
£10.72 inc VAT
£8.93 ex VAT
Part No: GSD402
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: GPS133
  In Stock
4 points earn (£0.04)
£5.40 inc VAT
£4.50 ex VAT
Part No: GLB2132
  In Stock
£1.15 inc VAT
£0.96 ex VAT
Part No: CZG3178
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: BMK1539A
  In Stock
13 points earn (£0.13)
£16.70 inc VAT
£13.92 ex VAT
Part No: BAU5409
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: BAU5408
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: BAU5407
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Add to cart
Items 1 to 12 of 73 total
1 2 3 4 5 6 ...
Request a free catalogue
