Interior trim - estates, van and pick up

Important Notes for Ordering Interior Trim:
Please state model and year of your Mini, plus the colour(s) you require along with the part numbers when placing your order. This will help us to make sure you receive exactly the trim you need. Note that because of the complex nature of trim colours and material types, only very popular items and colours (usually black) are held in stock - all others will be obtained to order, for which there will be a short lead time.

Traveller and Countryman Mk I and Mk II
1960-69
As with the Mk I saloon, complete interior trim kits are not available for 1960-61 models, due to the 'mix and match' nature of the trim fitted during this period. Please determine - with our assistance, if required - which style of each component from the doors forwards is correct for your car and order the components individually. From the rear of the doors backwards the trim for 1960-61 models is available as a kit. This does not usually include the fuel tank liners for the earliest 1960 cars with the tank mounted inside, rather than underneath. If you are retrimming one of these very rare vehicles, please tell us when ordering your trim - we can get the tank panels specially made for you.

Complete interior trim kits are available for 1961-69 models (the trim design remaining unchanged throughout this period); each includes two door liners, two rear quarter liners, B post, cant rail, rear pillar and rear seat support covers, four door fillet panels, two door pocket liners, two door check straps, two dash liners, front parcel shelf liner, two companion box liners and the fuel filler cover.

For 1960-61 Mk I models, the following colour schemes are available: Black/Grey Fleck, Porcelain Green/Grey Fleck, Tartan Red/Grey Fleck, Powder Blue/Grey Fleck, Spanish Red/Grey Fleck, Spanish Blue/Grey Fleck.

For 1961-67 Mk I models, the following colour schemes are available: Cumulus Grey, Dove Grey, Porcelain Green, Powder Blue, Tartan Red.

For 1967-69 Mk II models, the following colour schemes are available: Black, Tartan Red, Cumulus Grey.

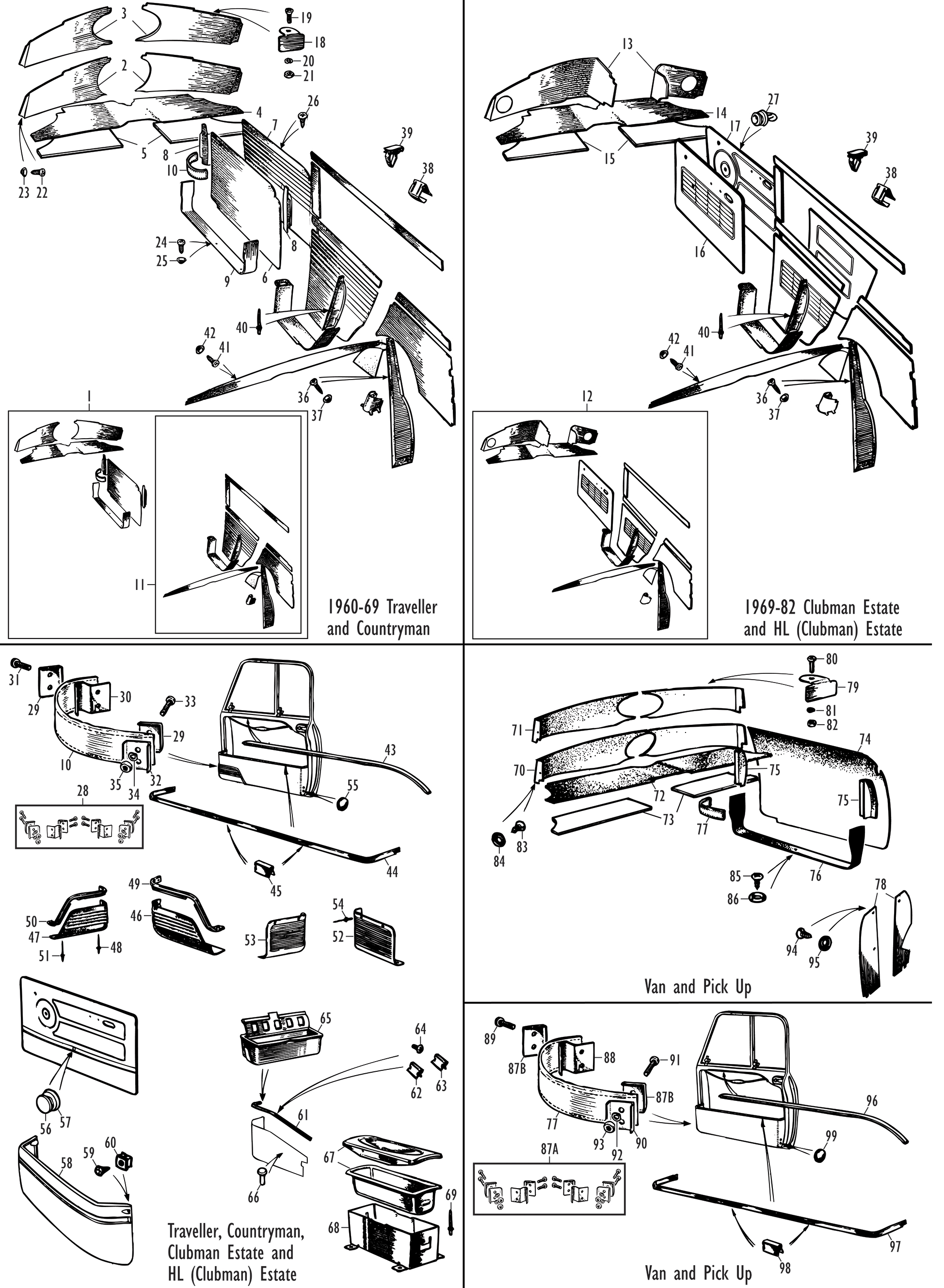

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
1	-	INTERIOR TRIM KIT, complete	1	1960-61. Not available; purchase trim items separately as required.
	TK3070	INTERIOR TRIM KIT, complete (state colour)	1	1961-69. For round instrument binnacle models.
	TK3075	INTERIOR TRIM KIT, complete (state colour)	1	1961-69. For oval instrument binnacle models.

Fascia Trim
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
2	ALE2927/31	DASH LINERS, pair, Black	1	1967-69 (will fit earlier models). Round or oval instrument binnacle type.
	DT3024	DASH LINERS, pair (state colour)	1	1960-69. Round instrument binnacle type.
3	DT3021	DASH LINERS, pair (state colour)	1	1961-69. Oval instrument binnacle type.
4	VGA1995	FRONT PARCEL SHELF LINER, Black	1	1967-69 (will fit earlier models).
	DT3022	FRONT PARCEL SHELF LINER (state colour)	1	1960-69.
5	UDL001	STIFFENING BOARD SET, front parcel shelf liner	1	1960-69.
The UDL001 stiffening board set may be used under the parcel shelf liner to support it if the parcel shelf itself has been replaced with the later, non-solid type.

Door Trim
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
6	DP3101	DOOR LINERS, pair, plain (state colour)	1	1960-61.
7	ALE1226/7	DOOR LINERS, pair, ribbed, Black	1	1967-69 (will fit earlier models).
	DP3021	DOOR LINERS, pair, ribbed (state colour)	1	1960-69.
8	ALE1222/3	DOOR FILLET PANELS, pair, Black	2	For one door. 1967-69 (will fit earlier models).
	DP3022	DOOR FILLET PANELS, pair (state colour)	2	For one door. 1960-69.
9	14E6518	DOOR POCKET LINERS, pair, Grey	1	1960-69.
10	ALE1221	DOOR CHECK STRAP, Black	2
	14E4289	DOOR CHECK STRAP, Red	2
	14E4291	DOOR CHECK STRAP, Green	2
	14E4290	DOOR CHECK STRAP, Grey	2
	DC3005	DOOR CHECK STRAP (state colour)	2	Contact us for other available colours.

Rear Trim
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
11	TK3101	REAR INTERIOR TRIM KIT (state colour)	1	1960-69.
Fuel tank liners for the earliest 1960 models can be supplied as a special order to supplement this kit.

Clubman Estate and HL (Clubman) Estate
1969-82
Complete interior trim kits are available for these models ; each includes two door liners, two rear quarter liners, B post, cant rail, rear pillar and rear seat support covers, two dash liners, front parcel shelf liner, two companion box liners and the fuel filler cover.

For 1969-75 models, the following colour schemes are available: Black, Navy.

Many colours were offered between 1976 and 1982, the most popular of which are currently available: 1976-80 Clubman Estate (to match vinyl, 'Deckchair' striped nylon or plain cropped nylon seats): Black, Navy, Beige.

1980-82 HL Estate (to match plaid fabric seats): Golden Tan, Blue

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
12	TK3091	INTERIOR TRIM KIT, complete (state colour)	1	1969-75; RHD.
	TK3092	INTERIOR TRIM KIT, complete (state colour)	1	1969-75; LHD.
	TK3087	INTERIOR TRIM KIT, complete (state colour)	1	1976-82; RHD.
	TK3088	INTERIOR TRIM KIT, complete (state colour)	1	1976-82; LHD.

Fascia Trim
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
13	VGA1749/51	DASH LINERS, offset instruments, pair, Black vinyl	1	RHD.
	VGA1482/4	DASH LINERS, offset instruments, pair, Black vinyl	1	LHD.
14	VGA1995	FRONT PARCEL SHELF LINER, padded, Black	1	Cut to fit around offset instruments.
	DT3027A	FRONT PARCEL SHELF LINER, Black	1	Alternative; cut to fit around offset instruments.
15	UDL001	STIFFENING BOARD SET, front parcel shelf liner	1
The UDL001 stiffening board set is used under the parcel shelf liner to support it on parcel shelves of the later, non-solid type.

Door Trim
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
16	V2A702/3	DOOR LINERS, pair, Black	1	1969-75.
	DP3047N	DOOR LINERS, pair, Navy	1	1969-75.
17	X2A7420/1	DOOR LINERS, pair, Black	1	1976-82.
	DP3048	DOOR LINERS, pair (state colour)	1	1976-82.

Interior Trim Fixings
Traveller, Countryman, Clubman Estate and HL Estate
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
18	14A7634	BRACKET, dash liner retaining	4	When heater not fitted.
19	PMZ306	SCREW, bracket to upper fascia	4
20	WL700101	WASHER, locking	4
21	FNZ103	NUT	4
22	RTP604	SCREW, self tapping, liner to dash	2	Traveller and Countryman.
23	FWP306	WASHER, cup	2	Traveller and Countryman.
24	RTP603	SCREW, self tapping, liner to door pocket	6	Traveller and Countryman.
25	FWP306	WASHER, cup	6	Traveller and Countryman.
26	RTP603	SCREW, door and rear quarter liners to body	12	Traveller and Countryman; if required.
27	GFK7509	CLIP, door liner to door	24	Clubman and HL Estate.
28	DCSK001	FITTING KIT, for two check straps	1	Includes retainers, brackets, stiffeners, screws, washers and nuts.
29	14A764	RETAINER, check strap	4	Traveller and Countryman.
30	14A6745	BRACKET, check strap	2	Traveller and Countryman.
31	RMP414	SCREW, check strap to A post	4	Traveller and Countryman.
32	14A6744	STIFFENER, check strap	2	Traveller and Countryman.
33	RMP414	SCREW, check strap to door	4	Traveller and Countryman.
34	LWZ204	WASHER, locking	4	Traveller and Countryman.
35	FNZ104	NUT	4	Traveller and Countryman.
36	RTZ604	SCREW, rear pillar liner to body	2
37	FWP406	WASHER, cup	2
38	14A8095	CLIP, luggage compartment liners to body	28
39	13H201	CLIP, luggage compartment liners to body	30
40	RA608123	RIVET, seat extension liner to body	2
41	RTZ604	SCREW, rear door aperture liner to body	4
42	FWP406	WASHER, cup	4

Interior Trim Fittings
Traveller, Countryman, Clubman Estate and HL Estate
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
43	24A1517	STRIP, safety, top of door flange covering	2	Traveller and Countryman.
44	24A1169	MOULDING, door pocket	2	Traveller and Countryman.
45	EYC10048	CLIP, moulding to door pocket	8	Traveller and Countryman.
46	ADA3733	PROTECTOR, door pocket, RH	1	1960-62, Traveller.
47	ADA3734	PROTECTOR, door pocket, LH	1	1960-62, Traveller.
48	DAP1023	RIVET, protector to door pocket	4	1960-62, Traveller.
49	ADA3735	MOULDING, protector, RH	1	1960-62, Traveller.
50	ADA3736	MOULDING, protector, LH	1	1960-62, Traveller.
51	BDA499	RIVET, moulding and protector to door pocket	14	1960-62, Traveller.
52	14A7176	PROTECTOR, door pocket, RH	1	1960-62, Countryman. 1962-69, Traveller and Countryman.
53	14A7177	PROTECTOR, door pocket, LH	1	1960-62, Countryman. 1962-69, Traveller and Countryman.
54	DAP1023	RIVET, protector to door pocket	8	1960-62, Countryman. 1962-69, Traveller and Countryman.
55	2H7274	PLUG, unused check strap screw hole in door pocket	4	Traveller and Countryman.
56	XGA7438	DRIVE FASTENER, fabric door pocket, Black	2	1976-80, Clubman Estate.
	XGN7438	DRIVE FASTENER, fabric door pocket, Navy	2	1976-80, Clubman Estate.
	XGX7438AK	DRIVE FASTENER, fabric door pocket, Beige	2	1976-80, Clubman Estate.
57	AAU7409	RETAINER, fastener	2	1976-80, Clubman Estate.
58	YGA452	DOOR BIN, Black	2	1980-82, HL (Clubman) Estate.
59	AD610055A	SCREW, door bin to door	10	1980-82, HL (Clubman) Estate.
60	GFK3428	LOKUT NUT, in door frame	4	1980-82, HL (Clubman) Estate.
61	CZH963	MOULDING, companion box, RH	1
	CZH964	MOULDING, companion box, LH	1
62	EYC10048	CLIP, moulding to companion box	4	Traveller and Countryman.
63	EYC10048	CLIP, moulding to companion box	8	Clubman and HL Estate.
64	53K3241	SCREW, moulding to companion box	4	Traveller and Countryman.
65	8D2490	ASHTRAY, companion box	2
66	ALH1473	BUFFER, rubber, companion box	4
67	ARA71	ASHTRAY, floor tunnel	1	If fitted.
68	ADA2484	HOLDER, floor tunnel ashtray	1
69	RU608123	RIVET, holder to floor tunnel	4

Mini Van and Pick Up
1960-84
Interior trim for the Mini Van and Pick Up is, as you would expect from their commercial nature, very basic indeed. Trim panels consisted of painted, grained millboard without a trace of material or padding. Originally earlier models were trimmed in Tan or the rather more sumptuous sounding (but in reality still very spartan) Arizona Beige, supplemented by Black from 1969 onwards and brief flirtations with Navy during the 1970s and Brushwood Brown in the 1980s. That's the history...
The vast majority of surviving vehicles were and are Black trimmed, so that is what is available. That's not to say that you couldn't liven up the interior with some coloured Mk I or Mk II saloon trim, of course - you can find the appropriate parts listed in 'Interior Trim - Saloons 1959-69'.

Fascia Trim
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
70	VGA4186/7	DASH LINERS, pair, black millboard	1	Round instrument binnacle type.
71	VGA4192/3	DASH LINERS, pair, black millboard	1	Oval instrument binnacle type; for modified vehicles.
72	VGA1995	FRONT PARCEL SHELF LINER, black	1
73	UDL001	STIFFENING BOARD SET, front parcel shelf liner	1
The UDL001 stiffening board set is used under the parcel shelf liner to support it on parcel shelves of the later, non-solid type.

Door Trim
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
74	ALE3450/1	DOOR LINERS, pair, black	1
75	ALE3452/3	DOOR FILLET PANELS, pair, black	2	For one door.
76	ALE3447	DOOR POCKET LINERS, pair, black	1
77	ALE1221	DOOR CHECK STRAP, black	2

Rear Trim
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
78	24E7184/5	TAIL LAMP LINERS, pair	1	Van with metal load floor.
	24E7168/9	TAIL LAMP LINERS, pair	1	Van with wooden load floor.

Interior Trim Fixings
Mini Van and Pick Up
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
79	14A7634	BRACKET, dash liner retaining	4	When heater not fitted.
80	PMZ306	SCREW, bracket to upper fascia	4
81	WL700101	WASHER, locking	4
82	FNZ103	NUT	4
83	RTP604	SCREW, self tapping, liner to dash	2
84	FWP306	WASHER, cup	2
85	RTP603	SCREW, self tapping, liner to door pocket	6
86	FWP306	WASHER, cup	6
87A	DCSK001	FITTING KIT, for two check straps	1	Includes retainers, brackets, stiffeners, screws, washers and nuts.
87B	14A764	RETAINER, check strap	4
88	14A6745	BRACKET, check strap	2
89	RMP414	SCREW, check strap to A post	4
90	14A6744	STIFFENER, check strap	2
91	RMP414	SCREW, check strap to door	4
92	LWZ204	WASHER, locking	4
93	FNZ104	NUT	4
94	PTZ604	SCREW, self tapping, tail lamp liner to body	6
95	PWZ102	WASHER, plain	6

Door Pocket Fittings
Mini Van and Pick Up
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
96	24A1517	STRIP, safety, top of door flange covering	2
97	24A1169	MOULDING, door pocket	2
98	EYC10048	CLIP, moulding to door pocket	8
99	2H7274	PLUG, check strap screw hole in door pocket	4	Use in redundant holes at other end of pocket.
