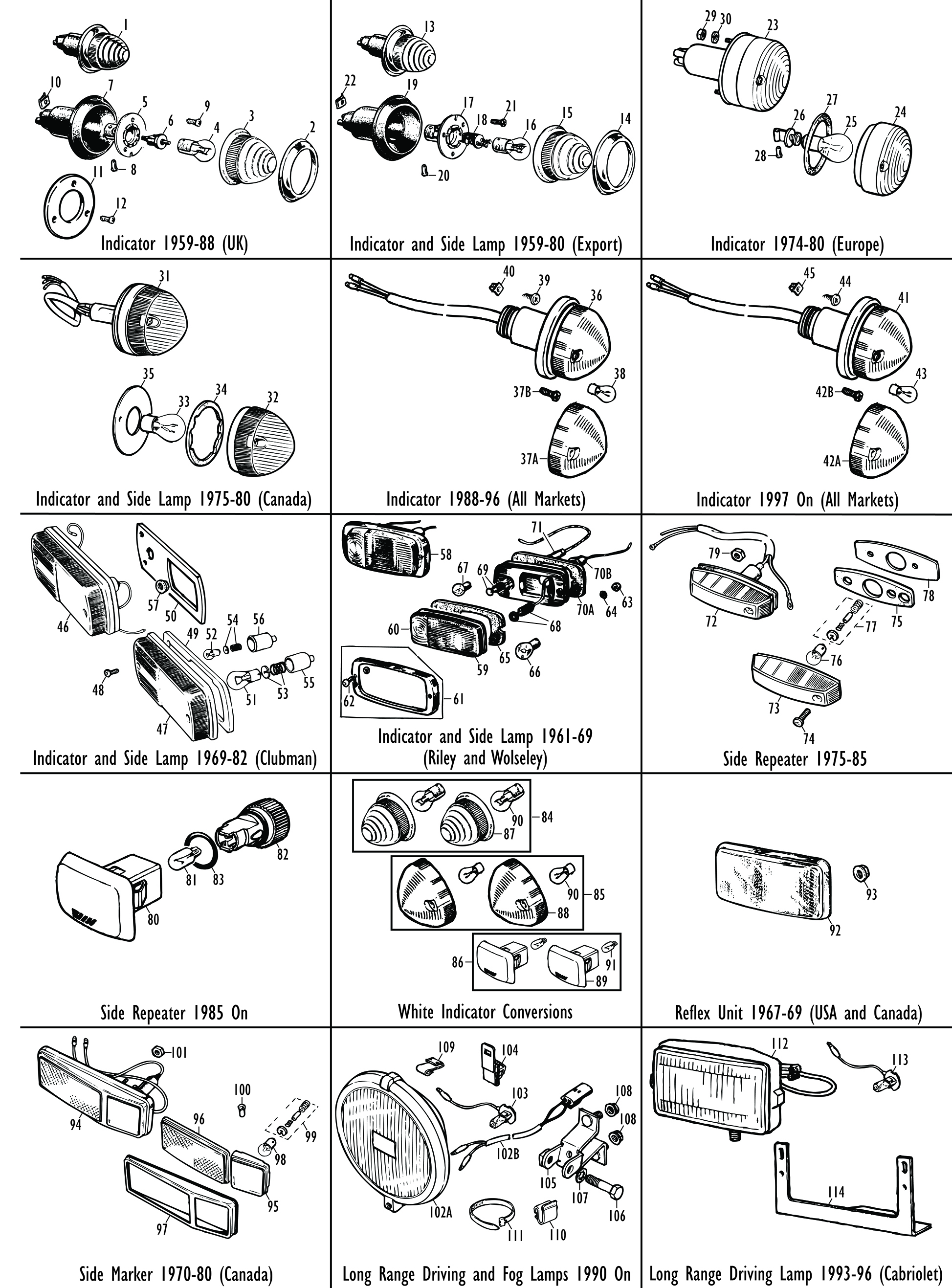

Front lamps

Indicator and Side Lamps
Lucas 'Beehive' Type Indicator Lamp (1959-88, mainly UK only until 1980)
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
1	2A9013	INDICATOR LAMP ASSEMBLY, amber glass	2
	CHM13	INDICATOR LAMP ASSEMBLY, amber plastic	2
2	7H5182	RIM	2
3	37H5520	LENS, amber glass	2
	37H8130	LENS, amber plastic	2
4	GLB382	BULB	2
5	37H5528	BULB HOLDER	2
6	7H5202	INTERIOR, bulb holder contacts, single	2
7	508162	BODY, rubber	2
8	27H6713	BULLET, push on type connector	2
9	PTZ604	SCREW, self tapping, lamp to body	6
10	AK606021	SPIRE NUT, lamp to body	6
11	XCB100020	PLATE, adaptor, lamp to front panel	2	Secures lamps to post-1988 front panel.
12	YYP100730	SCREW, lamp to adaptor	6	Secures lamps to post-1988 front panel.

Lucas 'Beehive' Type Indicator and Side Lamp (1959-80, most export markets)
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
13	1B9100	INDICATOR AND SIDE LAMP ASSY., white	2
14	7H5182	RIM	2
15	37H6928	LENS, white, glass	2
	37H6928CL	LENS, white, plastic	2	Alternative.
16	GLB380	BULB	2
17	27H5545	BULB HOLDER	2
18	7H5111	INTERIOR, bulb holder contacts, dual	2
19	508162	BODY, rubber	2
20	27H6713	BULLET, push on type connector	4
21	PTZ604	SCREW, self tapping, lamp to body	6
22	AK606021	SPIRE NUT, lamp to body	6

Screw-On Lens Type Indicator Lamp (1974-80, selected European markets)
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
23	575457A	INDICATOR LAMP ASSEMBLY, amber	2
24	37H6111	LENS, amber	2
25	GLB382	BULB	2
26	7H5202	INTERIOR, bulb holder contacts, single	2
27	17H6765	GASKET, lens to lamp backplate	2
28	27H6713	BULLET, push on type connector	2
29	ANZ103	NUT, lamp to body	4
30	WL700101	WASHER, locking	4

Screw-On Lens Type Indicator and Side Lamp (1975-80, Canada)
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
31	ADU1396	INDICATOR AND SIDE LAMP ASSY., amber	2
32	37H6776	LENS, amber	2
33	GLB380	BULB	2
34	17H6765	GASKET, lens to lamp backplate	2
35	27H2724	GASKET, lamp to bumper

Screw-On Lens Type Indicator Lamp (1988-96, all models)
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
36	AFU3389	INDICATOR LAMP ASSEMBLY, amber	2
37A	CDU3374	LENS, amber	2
37B	AB606053	SCREW, lens to lamp backplate	4
38	GLB382	BULB	2
39	PTZ604	SCREW, self tapping, lamp to body	4
40	GHF1021	NUT, Lokut	4

Screw-On Lens Type Indicator Lamp (1997 on, all models)
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
41	XBD100670	INDICATOR LAMP ASSEMBLY, white	2
	XBD100670P	INDICATOR LAMP ASSEMBLY, white	2	Non-genuine.
42A	CDU3374CL	LENS, white	2
42B	AB606053	SCREW, lens to lamp backplate	4
43	GLB344	BULB, amber	2
44	XYP100310	SCREW, self tapping, lamp to body	4
45	GHF1021	NUT, Lokut	4

Clubman Type Indicator and Side Lamp (1969-82)
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
46	ADU3018	INDICATOR AND SIDE LAMP ASSY., RH	1
	ADU3017	INDICATOR AND SIDE LAMP ASSY., LH	1
47	BAU1796	LENS, amber and white	2	Includes gasket.
	37H7934	LENS, white	2	Italy only.
48	SE806201	SCREW, lens to lamp backplate	4
49	37H4190	GASKET, lens to lamp backplate	2
50	37H4190B	GASKET, lamp backplate to body	2
51	GLB382	BULB, indicator	2
52	GLB233	BULB, side lamp	2
53	37H5452	INTERIOR, indicator bulb holder contacts	2
54	244700	INTERIOR, side lamp bulb holder contacts	2
55	27H6669	GROMMET, indicator bulb holder	2
56	37H1894	GROMMET, side lamp bulb holder	2
57	BHA4242	NUT, lamp to body	8

Riley and Wolseley Type Indicator and Side Lamp (1961-69)
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
58	13H6386	INDICATOR AND SIDE LAMP ASSY.	2
59	57H5461	LENS, indicator, amber	2
	37H7933	LENS, indicator, white	2	Selected export markets.
60	57H5462	LENS, side lamp, white	2
61	17H8748	RIM, lens	2
62	47H5323	SCREW, lens to body	4
63	FNZ103	NUT	6
64	WL700101	WASHER, locking	6
65	57H5459	GASKET, lens to body	2
66	GLB382	BULB, indicator	2
67	GLB989	BULB, side lamp	2
68	37H5452	INTERIOR, indicator bulb holder contacts	2
69	7H5536	INTERIOR, side lamp bulb holder contacts	2
70A	57H5460	GASKET, lamp backplate to body	2
70B	57H5465	GROMMET, indicator bulb holder	2
71	37H1894	GROMMET, side lamp bulb holder	2

Side Repeater Lamps
Early Type (1975-85; Mini Special and selected markets)
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
72	AAU3296A	SIDE REPEATER LAMP ASSEMBLY	2
73	27H2403	LENS, amber	2
74	518868	SCREW, lens to lamp backplate	2
75	608311	GASKET, lens to lamp backplate	2
76	GLB989	BULB	2
77	7H5536	INTERIOR, bulb holder contacts	2
78	608312	GASKET, lamp to body	2
79	CNZ102	NUT, lamp to body	4

Late Type (1985 on)
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
80	AHU2592	LENS, side repeater lamp, amber	2	1986-96.
	AHU2592CL	LENS, side repeater lamp, white	2	1997 on.
81	GLB501	BULB, clear	2	1986-96.
	GLB501A	BULB, amber	2	1997 on.
82	AFU3358	BULB HOLDER, with harness	2
83	AFU3112	O RING, bulb holder	2

White Indicator Conversions
These kits offer the opportunity to follow the automotive designers' trend from the mid-1990s onwards to specify white or clear lenses.
Conversion kits include white front indicator lenses and late side repeater lenses, plus amber bulbs.
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
84	CLK001	CONVERSION KIT, white front indicators	1	For models with Lucas 'Beehive' indicators, up to 1988.
85	CLK002	CONVERSION KIT, white front indicators	1	For models with screw-on lens type indicators, 1988-96.
86	CLK003	CONVERSION KIT, white side repeaters	1	1985 on.
87	37H6928CL	LENS, front indicator lamp, white, plastic	2	Lucas 'Beehive' type.
88	CDU3374CL	LENS, front indicator lamp, white	2	Screw-on lens type.
89	AHU2592CL	LENS, side repeater lamp, white	2
90	GLB343	BULB, front indicator lamp, amber	2
91	GLB501A	BULB, side repeater lamp, amber	2

Side Marker Lamps and Reflex Units
MkI, MkII Saloon, USA and Canada, 1967-69
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
92	13H5869	REFLEX UNIT, front side marker, amber	2
93	BHA4242	NUT, attaching reflex unit to body	4

MkIII, MkIV Saloon, Canada 1970-80
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
94	13H6676	SIDE MARKER LAMP ASSEMBLY, amber	2
95	90608222	LENS, amber	2
96	90608223	REFLEX, amber	2
97	519364	RIM, lens and reflex	2
98	GLB989	BULB	2
99	244700	INTERIOR, bulb holder contacts	2
100	27H6713	BULLET, push on type connector	2
101	CNZ102	NUT, securing side marker lamp	4

Long Range Driving and Fog Lamps
Saloon, 1990 On
Optional or standard fitment from 1990 on, depending on model. The quantities listed below increase when four lamps are fitted, rather than two.
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
102A	XBN10008	LONG RANGE DRIVING LAMP ASSEMBLY	2	Now supplied without wiring.
	XBJ100280	FRONT FOG LAMP ASSEMBLY	2	Now supplied without wiring.
102B	HARN001	HARNESS, lamp wiring	A/R	One harness required per lamp.
103	GLB453	BULB, auxiliary lamp	2/4	Qty. increases for 4 lamps.
104	YYC10017A	CLIP, cable, driving lamps	2
105	XBU10044	BRACKET, auxiliary lamp	2	Use when two lamps are fitted, or for the two inner positions when four lamps are fitted.
	XBU100640	BRACKET, auxiliary lamp, RH	1	Use for the outer RH position when four lamps are fitted.
	XBU100650	BRACKET, auxiliary lamp, LH	1	Use for the outer LH position when four lamps are fitted.
106	BH108085	BOLT, auxiliary lamp to bracket	2/4	Qty. increases for 4 lamps.
107	LWZ405	WASHER, shakeproof	2/4	Qty. increases for 4 lamps.
108	FN108047	NUT, bracket to body	4/8	Qty. increases for 4 lamps.
109	11K9181	CLIP, driving lamp lamp support	2
110	ADU8063	CLIP, fog lamp cable to body	2
111	UKC6684	TIE WRAP, fog lamp cable to body	2
	XBV100610	LAMP COVER, clear, 'Mini' logo	2/4	Qty. increases for 4 lamps.
	XBV100300	LAMP COVER, smoked, 'Mini Cooper' logo	2/4	Qty. increases for 4 lamps.

Rover Mini Cabriolet, 1993-96
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
112	XBN100150	LONG RANGE DRIVING LAMP ASSEMBLY	2
113	GLB453	BULB, long range driving lamp	2
114	XBU100470	BRACKET, mounting long range driving lamp	2
