Saloon and cabriolet

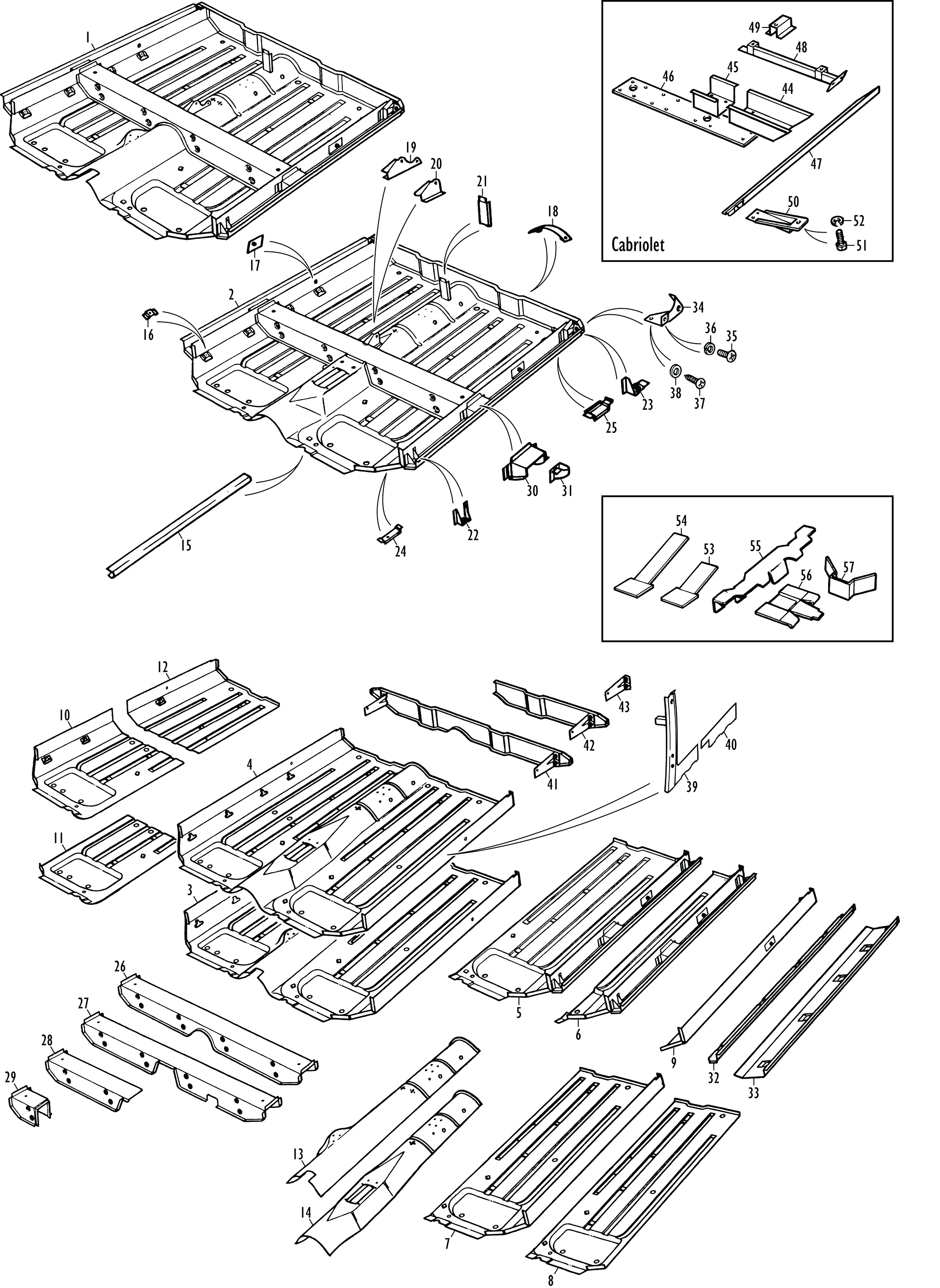

Front Floor Assembly
There were four Mini saloon floors, each having derivatives with detail differences which for practicality’s sake have had to be rationalised here (some alteration work should thus be anticipated when fitting a new floor panel). The four basic designs were:
1959-60: The one piece floor, well known as a feature of the first year of Mini production, without separate outer sills.
1960-72 approx.: This floor, with separate outer sills, accepts the direct (‘magic wand’) or remote gearchanges. Very late versions had 6 flute outer sills, instead of the previous 4 flute design.
1973-1996: The rod gearchange floor, with a squared off centre tunnel. 1990s versions for fuel injection cars had significantly different rib patterns; the rod change floor is still made in this condition.
1997 on: Rod gearchange again, but with relocated seatbelt mountings for seats with pre-tensioners.
Complete floors include the crossmember, outer sills, heelboard and all associated brackets and clips.
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
1	REPAN231	FRONT FLOOR COMPLETE ASSEMBLY	1	1959-60; one piece floor (no outer sills), supplied without inner sills.
	14A9536	FRONT FLOOR COMPLETE ASSEMBLY	1	1960-67; for direct gearchange, separate outer sills.
	24A2615	FRONT FLOOR COMPLETE ASSEMBLY	1	1961-71 approx.; for remote gearchange, 4 flute outer sills.
	24A2615/6	FRONT FLOOR COMPLETE ASSEMBLY	1	1971-72 approx.; for remote gearchange, 6 flute outer sills.
2	ADA36002E	FRONT FLOOR COMPLETE ASSEMBLY	1	1973 approx. to 1996; produced with 1991 rib design. For rod gearchange.
	ADA36002	FRONT FLOOR COMPLETE ASSEMBLY	1	1997 on; for pre-tensioned seatbelts.
3	14A8080	FRONT FLOOR PANEL	1	1960-72; direct or remote gearchange.
4	CZH2669	FRONT FLOOR PANEL	1	1973 approx. on; for rod gearchange. With 1991 ribs, but fits earlier models.
5	REPAN232	HALF FLOOR ASSEMBLY, RH	1	No outer sills, 1959-60; non-genuine.
	REPAN233	HALF FLOOR ASSEMBLY, LH	1	No outer sills, 1959-60; non-genuine.
	REPAN104	HALF FLOOR AND SILL ASSEMBLY, RH	1	4 flute sills, 1960-71; non-genuine.
	REPAN105	HALF FLOOR AND SILL ASSEMBLY, LH	1	4 flute sills, 1960-71; non-genuine.
	REPAN110	HALF FLOOR AND SILL ASSEMBLY, RH	1	6 flute sills, 1971 on; non-genuine.
	REPAN111	HALF FLOOR AND SILL ASSEMBLY, LH	1	6 flute sills, 1971 on; non-genuine.
	ADA36002RH	HALF FLOOR AND SILL ASSEMBLY, RH	1	With 1991 ribs and 6 flute sills, but can be used on earlier models.
	ADA36002LH	HALF FLOOR AND SILL ASSEMBLY, LH	1	With 1991 ribs and 6 flute sills, but can be used on earlier models.
6	REPAN084	FLOOR EDGE AND SILL ASSY., RH	1	4 flute sills, 1960-71; non-genuine.
	REPAN085	FLOOR EDGE AND SILL ASSY., LH	1	4 flute sills, 1960-71; non-genuine.
	REPAN086	FLOOR EDGE AND SILL ASSY., RH	1	6 flute sills, 1971 on; non-genuine.
	REPAN087	FLOOR EDGE AND SILL ASSY., LH	1	6 flute sills, 1971 on; non-genuine.
	ADA36002RQ	FLOOR EDGE AND SILL ASSY., RH	1	With 1991 ribs and 6 flute sills, but can be used on earlier models.
	ADA36002LQ	FLOOR EDGE AND SILL ASSY., LH	1	With 1991 ribs and 6 flute sills, but can be used on earlier models.
7	HMP441004	HALF FLOOR PANEL, RH, detailed	1	With 1991 rib design.
	HMP441005	HALF FLOOR PANEL, LH, detailed	1	With 1991 rib design.
	REPAN212	HALF FLOOR PANEL, RH, detailed	1	With pre-1991 straight rib design.
	REPAN213	HALF FLOOR PANEL, LH, detailed	1	With pre-1991 straight rib design.
	REPAN164	HALF FLOOR PANEL, RH, ‘budget’	1	Non-genuine.
	REPAN165	HALF FLOOR PANEL, LH, ‘budget’	1	Non-genuine.
8	REPAN166	HALF FLOOR PANEL, without inner sill, RH	1	Non-genuine; with earlier rib design.
	REPAN167	HALF FLOOR PANEL, without inner sill, LH	1	Non-genuine; with earlier rib design.
9	REPAN001	FLOOR REPAIR, inner sill, RH, detailed	1	Non-genuine.
	REPAN002	FLOOR REPAIR, inner sill, LH, detailed	1	Non-genuine.
	REPAN003	FLOOR REPAIR, inner sill, RH, ‘budget’	1	Non-genuine.
	REPAN004	FLOOR REPAIR, inner sill, LH, ‘budget’	1	Non-genuine.
10	REPAN056	FLOOR FRONT REPAIR ASSY., RH, detailed	1	With inner sill; non-genuine.
	REPAN057	FLOOR FRONT REPAIR ASSY., LH, detailed	1	With inner sill; non-genuine.
	REPAN058	FLOOR FRONT REPAIR, RH, ‘budget’	1	With inner sill; non-genuine.
	REPAN059	FLOOR FRONT REPAIR, LH, ‘budget’	1	With inner sill; non-genuine.
11	REPAN054	FLOOR FRONT REPAIR, RH	1	Without inner sill; non-genuine.
	REPAN055	FLOOR FRONT REPAIR, LH	1	Without inner sill; non-genuine.
12	REPAN168	FLOOR REAR REPAIR ASSY., RH, detailed	1	With inner sill; non-genuine.
	REPAN169	FLOOR REAR REPAIR ASSY., LH, detailed	1	With inner sill; non-genuine.
	REPAN170	FLOOR REAR REPAIR, RH, ‘budget’	1	With inner sill; non-genuine.
	REPAN171	FLOOR REAR REPAIR, LH, ‘budget’	1	With inner sill; non-genuine.
13	REPAN172	CENTRE TUNNEL ASSEMBLY	1	1960-67; direct gearchange.
	REPAN173	CENTRE TUNNEL ASSEMBLY	1	1961-72 approx.; remote gearchange.
14	ADA36002EC	CENTRE TUNNEL ASSEMBLY	1	1973 approx. - 1996; rod gearchange.
	ADA36002C	CENTRE TUNNEL ASSEMBLY	1	1997 on; pre-tensioned seatbelts.
Brackets and Fixings
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
15	24A1463	CHANNEL, battery cable securing	1
16	14A9065	BRACKET, carpet retaining clip	8	1960-96.
17	24A2186	SEATBELT MOUNTING, outer floor	2	1964 on.
18	24A2187	SEATBELT MOUNTING, floor centre	1	1964 on.
19	14A6669	BRACKET, handbrake mounting	1	1959-75; twin cable handbrake.
20	CZH3214	BRACKET, handbrake mounting	1	1976 on; single cable handbrake.
21	14A6624	SUPPORT, rear seat pan to centre tunnel	1
22	14A9550	BRACKET, slinging shoe nut, front	2	Reinforces outer sill to floor ass’y.
23	14A9552	BRACKET, slinging shoe nut, rear, RH	1	Reinforces outer sill to floor ass’y.
	14A9553	BRACKET, slinging shoe nut, rear, LH	1	Reinforces outer sill to floor ass’y.
24	24A41	BRACKET, slinging shoe, front	2
25	24A42	BRACKET, slinging shoe, rear, RH	1
	24A43	BRACKET, slinging shoe, rear, LH	1
Slinging shoes were used to move bodies around the factory, prior to fitment of wheels and running gear. Each shoe fitted into a bracket under the floor, and was secured by a nut in the sill, into which a bolt on the shoe was threaded. The nut brackets also act as reinforcements between the outer and inner sills, so they should be retained or replaced if work is done in that area. Moreover, no slinging shoe brackets under the floor is a telltale of a car that’s been fitted with new sills and/or has undergone major floor repairs. Fitting new brackets once the floor and sill work is done makes the car look correct again.
Crossmembers
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
26	14A9533	CROSSMEMBER ASSEMBLY, floor	1	1960-72; direct or remote gearchange.
27	CZH2675	CROSSMEMBER ASSEMBLY, floor	1	1973 approx. on. Produced to 1997 condition; fits all rod gearchange models.
28	CZH2675R	HALF CROSSMEMBER ASSEMBLY, RH	1	1973 approx. on.
	CZH2675L	HALF CROSSMEMBER ASSEMBLY, LH	1	1973 approx. on. Produced to 1997 condition; fits all rod gearchange models.
29	REPAN035	CROSSMEMBER OUTER END REPAIR, RH	1	Non-genuine.
	REPAN036	CROSSMEMBER OUTER END REPAIR, LH	1	Non-genuine.
30	14A8374	EXTENSION CROSSMEMBER ASSY., RH	1	1960 on; includes jacking point.
	14A8375	EXTENSION CROSSMEMBER ASSY., LH	1	1960 on; includes jacking point.
31	14A8336	JACKING POINT, RH	1
	14A8337	JACKING POINT, LH	1

Sills and Heelboards
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
32	14A9534MK1	SILL OUTER ASSEMBLY, RH	1	1960-71; 4 flutes.
	14A9535MK1	SILL OUTER ASSEMBLY, LH	1	1960-71; 4 flutes.
	14A9534	SILL OUTER ASSEMBLY, RH	1	1971 on; 6 flutes. Will fit earlier models.
	14A9535	SILL OUTER ASSEMBLY, LH	1	1971 on; 6 flutes. Will fit earlier models.
	14A9534P	SILL OUTER ASSEMBLY, RH	1	Non-genuine.
	14A9535P	SILL OUTER ASSEMBLY, LH	1	Non-genuine.
	HMP441028	SILL OUTER ASSEMBLIES, pair	1	1971 on; 6 flutes. Will fit earlier models.
33	BHM3	SILL OUTER REPAIR PANEL, wide, RH	1	Non-genuine; includes outer floor area.
	BHM4	SILL OUTER REPAIR PANEL, wide, LH	1	Non-genuine; includes outer floor area.
34	14A6615	SHROUD, radius arm grease nipple, RH	1	1959-68.
	14A6616	SHROUD, radius arm grease nipple, LH	1	1959-68.
35	PMZ308	SCREW, pan head, shroud to body	2	1959-68.
36	LWZ203	WASHER, locking	2	1959-68.
37	PTZ1003	SCREW, self tapping, shroud to body	2	1959-68.
38	PWZ203	WASHER, plain	4	1959-68.
39	14A6518	INNER SILL STIFFENER, front, RH	1	1959-62; includes A post boxing plate.
	14A6519	INNER SILL STIFFENER, front, LH	1	1959-62; includes A post boxing plate.
For 1962 onwards A post boxing plates, please refer to the ‘Dash Assemblies’ section.

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
40	REPAN237	INNER SILL STIFFENER, rear, RH	1	1959-60.
	REPAN238	INNER SILL STIFFENER, rear, LH	1	1959-60.
41	HMP441008	HEELBOARD ASSY., with subframe mtgs.	1	1991 on; will fit earlier models.
42	HMP441006	HALF HEELBOARD, with subframe mtg., RH	1	1961 on.
	HMP441007	HALF HEELBOARD, with subframe mtg., LH	1	1991 on; will fit earlier models.
43	14A9546	BRACKET ASSY., subframe mounting, RH	1	1960 on.
	14A9547	BRACKET ASSY., subframe mounting, LH	1	1960 on.

Floor Reinforcements
Cabriolet
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
44	ADR36004	REINFORCEMENT, floor, outer, RH	1	1990-92; Lamm Mini Cabriolet.
	ADR36005	REINFORCEMENT, floor, outer, LH	1	1990-92; Lamm Mini Cabriolet.
45	ADR36002	REINFORCEMENT, floor, inner, RH	1	1990-92; Lamm Mini Cabriolet.
	ADR36003	REINFORCEMENT, floor, inner, LH	1	1990-92; Lamm Mini Cabriolet.
46	ADR36001	REINFORCEMENT PLATE, floor	1	1990-92; Lamm Mini Cabriolet.
47	ALR36002	REINFORCEMENT ASSEMBLY, sill, RH	1	1990-92; Lamm Mini Cabriolet.
	ALR36003	REINFORCEMENT ASSEMBLY, sill, LH	1	1990-92; Lamm Mini Cabriolet.
48	ADC360040	CROSSMEMBER, front seat mounting, RH	1	1993-96; Rover Mini Cabriolet.
	ADC360050	CROSSMEMBER, front seat mounting, LH	1	1993-96; Rover Mini Cabriolet.
49	ADU360050	BRACKET, front seat mounting	4	1993-96; Rover Mini Cabriolet.
50	ADR360070	REINFORCEMENT, sill jacking point	4	1993-96; Rover Mini Cabriolet.
51	SH306087	SCREW, Whitworth, reinforcement to sill	4	1993-96; Rover Mini Cabriolet.
52	WA110067	WASHER, plain	4	1993-96; Rover Mini Cabriolet.

Wiring Tags and Service Clips
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
53	CW100110	WIRING TAG, short	A/R
54	CW100120	WIRING TAG, long	A/R
55	ALA5527	MULTI-CLIP, under front floor	2	1960-90 approx.
56	ALA5536	SERVICE CLIP, on front floor	6	1960-90; 3 per side.
57	ALA5535	SERVICE CLIP, heelboard	2-Jan	2 for carburetter models, 1 for injection.
