Fuel Pumps - Carburetter Models

Part No: LWZ204
  In Stock
WASHER-SPRING, 1/4''
Required Quantity: 2
£0.22 inc VAT
£0.18 ex VAT
Part No: PMZ410
  In Stock
£0.47 inc VAT
£0.39 ex VAT
Part No: SH604071
  In Stock
SET SCREW-1/4'' UNF x 7/8"
Required Quantity: 1
£0.25 inc VAT
£0.21 ex VAT
Part No: LNZ204
  No Longer Available
USE: GHF221
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: LWZ205
  In Stock
WASHER-SPRING, 5/16''
Required Quantity: 2
£0.37 inc VAT
£0.31 ex VAT
Part No: FNZ105
  In Stock
NUT - 5/16" UNF
Required Quantity: 2
£0.35 inc VAT
£0.29 ex VAT
Part No: SH604041
  In Stock
SET SCREW-1/4'' UNF x 1/2''
Required Quantity: 2
£0.29 inc VAT
£0.24 ex VAT
Part No: AJD8012Z
  In Stock
NUT-2BA-STD. THICKNESS
Required Quantity: 2
£0.16 inc VAT
£0.13 ex VAT
Part No: CHS2515
  In Stock
STUD-5/16 UNF/UNC x 1 7/8''
Required Quantity: 2
£1.19 inc VAT
£0.99 ex VAT
Part No: GUG705779
  No Longer Available
USE: GUG705779GM
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: 12A1
  No Longer Available
USE: FNZ105
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: 12G3494B
  No Longer Available
USE: GUG705779GM
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: 21A632
  In Stock
6 points earn (£0.06)
£7.91 inc VAT
£6.59 ex VAT
Part No: 21A750
  In Stock
6 points earn (£0.06)
£8.34 inc VAT
£6.95 ex VAT
Part No: 2A2222
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: ACB9252
  Currently Unavailable
2 points earn (£0.02)
£2.56 inc VAT
£2.13 ex VAT
Part No: ACB9270
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: ACH9131
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: AUA103
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: AUA1065
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: AUA1435
  Available to Customer Order
£0.30 inc VAT
£0.25 ex VAT
Part No: AUA1455
  Available to Customer Order
£0.72 inc VAT
£0.60 ex VAT
Part No: AUA1456
  Available to Customer Order
£0.72 inc VAT
£0.60 ex VAT
Part No: AUA1459
  Available to Customer Order
£1.13 inc VAT
£0.94 ex VAT
Part No: AUA1466
  Available to Customer Order
5 points earn (£0.05)
£6.60 inc VAT
£5.50 ex VAT
Part No: AUA1468
  Available to Customer Order
£0.59 inc VAT
£0.49 ex VAT
Part No: AUA1661
  Available to Customer Order
£0.35 inc VAT
£0.29 ex VAT
Part No: AUA1662
  Available to Customer Order
£0.44 inc VAT
£0.37 ex VAT
Part No: AUA1863
  In Stock
£0.65 inc VAT
£0.54 ex VAT
Part No: AUA565
  Available to Customer Order
1 points earn (£0.01)
£2.18 inc VAT
£1.82 ex VAT
Part No: AUA566
  Available to Customer Order
WASHER -PLAIN
Required Quantity: 1
£0.44 inc VAT
£0.37 ex VAT
Part No: AUA571
  Available to Customer Order
4 points earn (£0.04)
£4.93 inc VAT
£4.11 ex VAT
Part No: AUA573
  Available to Customer Order
1 points earn (£0.01)
£1.31 inc VAT
£1.09 ex VAT
Part No: AUA574
  Available to Customer Order
3 points earn (£0.03)
£4.21 inc VAT
£3.51 ex VAT
Part No: AUA575
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: AUA585
  No Longer Available
USE: WL700061
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: AUA6036
  No Longer Available
USE: AUB6106
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: AUA692
  In Stock
£0.77 inc VAT
£0.64 ex VAT
Part No: AUA695
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: AUA699
  Available to Customer Order
£0.83 inc VAT
£0.69 ex VAT
Part No: AUA878
  In Stock
£0.60 inc VAT
£0.50 ex VAT
Part No: AUB1011
  In Stock
£1.14 inc VAT
£0.95 ex VAT
Part No: AUB1014
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: AUB1021
  Available to Customer Order
£0.00 inc VAT
£0.00 ex VAT
Part No: AUB1022
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: AUB1028
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: AUB5005
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: AUB5011
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: AUB5012
  No Longer Available
USE: GUG705603
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: AUB582
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: AUB6034
  Available to Customer Order
9 points earn (£0.09)
£11.09 inc VAT
£9.24 ex VAT
Part No: AUB6062
  Currently Unavailable
6 points earn (£0.06)
£7.22 inc VAT
£6.02 ex VAT
Part No: AUB6080
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: AUB609
  Available to Customer Order
£0.79 inc VAT
£0.66 ex VAT
Part No: AUB6097
  Available to Customer Order
22 points earn (£0.22)
£27.37 inc VAT
£22.81 ex VAT
Part No: AUB6106
  In Stock
13 points earn (£0.13)
£15.98 inc VAT
£13.32 ex VAT
Part No: AUB6107
  No Longer Available
USE: AUB6106
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: AUB613
  Available to Customer Order
63 points earn (£0.63)
£75.90 inc VAT
£63.25 ex VAT
Part No: AUB617
  Currently Unavailable
3 points earn (£0.03)
£3.92 inc VAT
£3.27 ex VAT
Part No: AUB660
  Available to Customer Order
£0.94 inc VAT
£0.78 ex VAT
Part No: AUB663
  In Stock
5 points earn (£0.05)
£6.68 inc VAT
£5.57 ex VAT
Part No: AUB668
  Available to Customer Order
4 points earn (£0.04)
£4.91 inc VAT
£4.09 ex VAT
Part No: AUB676
  In Stock
£0.65 inc VAT
£0.54 ex VAT
Part No: AUB700
  Available to Customer Order
4 points earn (£0.04)
£5.75 inc VAT
£4.79 ex VAT
Part No: AUB716
  Available to Customer Order
1 points earn (£0.01)
£1.94 inc VAT
£1.62 ex VAT
Part No: AUB758
  Available to Customer Order
2 points earn (£0.02)
£2.68 inc VAT
£2.23 ex VAT
Part No: AUB809
  Awaiting Stock - On Order
1 points earn (£0.01)
£1.32 inc VAT
£1.10 ex VAT
Part No: AUB846
  Available to Customer Order
2 points earn (£0.02)
£2.66 inc VAT
£2.22 ex VAT
Part No: AUB9009
  In Stock
3 points earn (£0.03)
£3.70 inc VAT
£3.08 ex VAT
Part No: AUC2246
  No Longer Available
USE: WL700101
Required Quantity: 2
£0.00 inc VAT
£0.00 ex VAT
Part No: AUD2565
  Available to Customer Order
£0.58 inc VAT
£0.48 ex VAT
Part No: AUE555
  In Stock
15 points earn (£0.15)
£18.64 inc VAT
£15.53 ex VAT
Part No: AUF214
  In Stock
78 points earn (£0.78)
£93.84 inc VAT
£78.20 ex VAT
Part No: AUF214EN
  In Stock
106 points earn (£1.06)
£127.50 inc VAT
£106.25 ex VAT
Part No: AUF214EP
  In Stock
106 points earn (£1.06)
£127.50 inc VAT
£106.25 ex VAT
Part No: AUF214P
  In Stock
57 points earn (£0.57)
£68.83 inc VAT
£57.36 ex VAT
Part No: AUF705
  No Longer Available
USE: AZX1818
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: AZX1817
  In Stock
63 points earn (£0.63)
£76.50 inc VAT
£63.75 ex VAT
Part No: AZX1818
  No Longer Available
USE: AZX1818P
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: BZX1025
  Available to Customer Order
3 points earn (£0.03)
£4.66 inc VAT
£3.88 ex VAT
Part No: BZX1043
  Available to Customer Order
1 points earn (£0.01)
£1.54 inc VAT
£1.28 ex VAT
Part No: EPK200
  In Stock
34 points earn (£0.34)
£41.29 inc VAT
£34.41 ex VAT
Part No: GUG705603
  In Stock
6 points earn (£0.06)
£8.10 inc VAT
£6.75 ex VAT
Part No: WF702105
  No Longer Available
USE: LWZ403
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: WND10005
  In Stock
75 points earn (£0.75)
£90.00 inc VAT
£75.00 ex VAT
Part No: AZX1818P
  In Stock
19 points earn (£0.19)
£22.80 inc VAT
£19.00 ex VAT

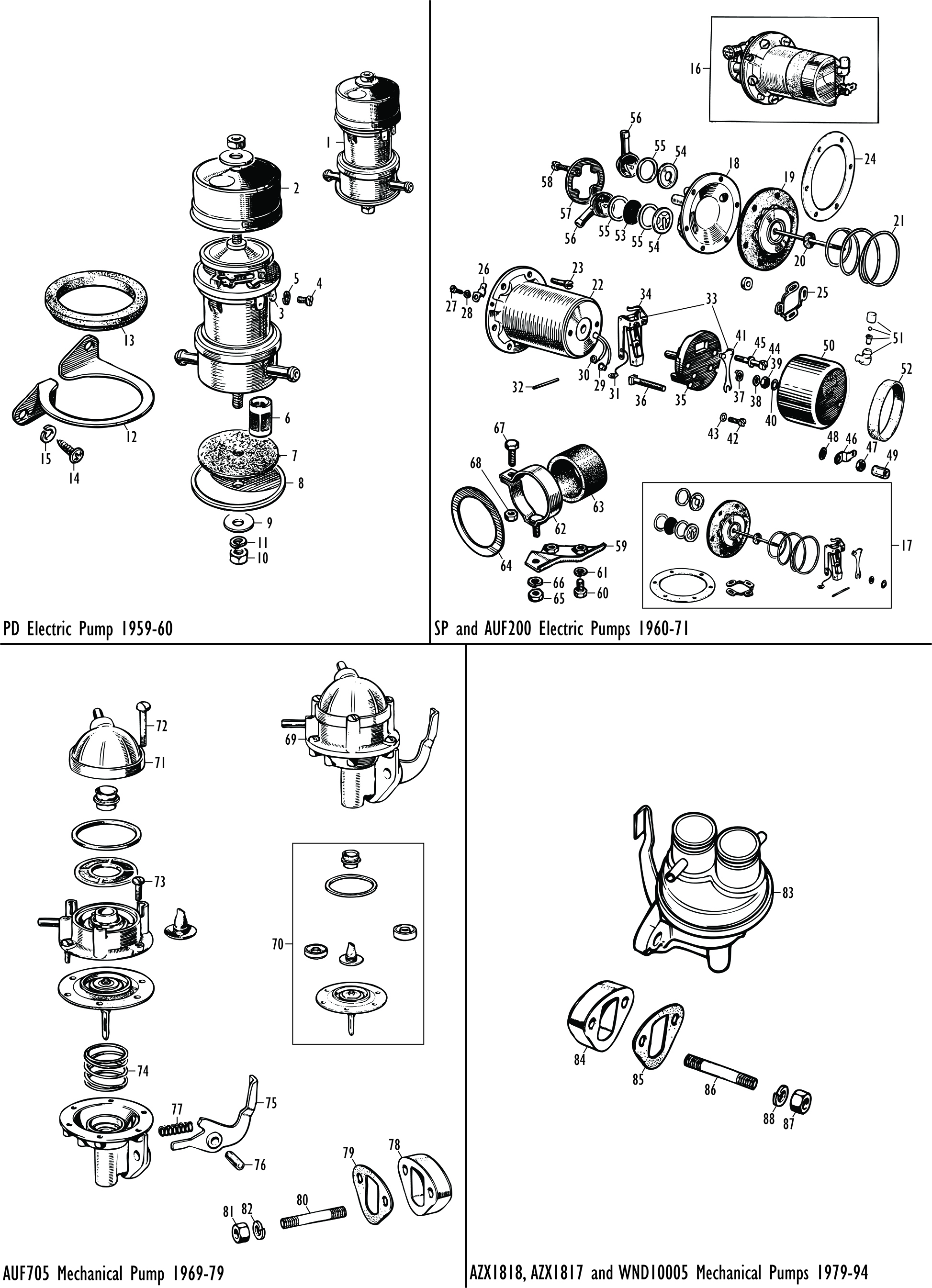

Fuel Pumps
Carburetter-fitted Minis used both electric and mechanical fuel pumps.  Positive earth cars up to 1969 (1970 for vans and Pick Ups) had an electric pump mounted on the rear subframe, while the later negative earth models used a mechanical pump mounted on the dash side of the engine.

Electric Fuel Pumps
PD Type Electric Pump
Saloons, 1959-60
Traveller, Countryman and Van, 1960.
The exact change point when the AUA103 type fuel pump was replaced in production with the SP and AUF200 Series type pumps is unknown, but the change is generally thought to have taken place progressively over the different Mini models during 1960.  The AUA103 type pump has been out of production for many years (though new ones do surface from time to time - contact us to see if we have one if you particularly want one) and has been replaced on many of the surviving very early Minis with an AUF200 series pump.  Spare parts for AUA103 type pumps can also be very difficult to come by.

Ill. No. Part No. Description Qty. Rqd. Remarks
1 AUA103 FUEL PUMP ASSEMBLY 1
2 AUA695 COVER, top 1
3 AUA692 CONNECTOR, Lucar spade 1
4 AUA699 SCREW, earth lead terminal 1
5 AUA585 WASHER, locking 1
6 AUA571 FILTER, pump 1
7 AUA573 DISC, sealing, cork 1
8 AUA574 COVER, bottom 1
9 AUA575 WASHER, dished 2
10 AJD8012Z NUT, cover securing 2
11 AUC2246 WASHER, locking 2
12 2A2222 BRACKET, fuel pump to subframe 1
13 ACH9131 FERRULE, rubber, fuel pump to bracket 1
14 PMZ410 SCREW, bracket to subframe 2
15 LWZ204 WASHER, locking 2

SP Type and AUF200 Series Electric Pumps
Saloons Except Cooper S, 1960-69; Cooper S 1963-71
Traveller and Countryman, 1960-69
Van and Pick Up, 1960-70
Several versions of these pumps were fitted in the 1960s which look broadly similar to each other but use differing internal parts.  The earliest versions, AUA83, AUB83 and AUF200 had a flat plastic end cap without a breather valve; AUF201 wore a flat plastic end cap with a breather valve. The ultimate version, and the only one still in production, is AUF214 (which most electric fuel pump-fitted Minis will now have) which has a stepped plastic end cap with the breather valve.

Additionally, the SP type pumps AUA83 and AUB83 can be distinguished from all later pumps by their valves, which are positioned within the pump body. All later AUF200 series pumps have their valves and valve covers (nozzles) clamped to the outside of the pump body by a plate.

The parts you are likely to require for AUA83, AUB83, AUF200 and AUF201 are sometimes different in detail to those used in AUF214 and some are not available. We often advise replacement of early pumps with AUF214.  Parts listed in this section are mostly appropriate for AUF214; where they also fit earlier versions, this information is also shown.

If you order an AUF214 pump you will receive an assembly containing the original 'points' or rocker and contact mechanism, which may be fitted to either a positive or negative earth car.  Pumps with more modern electronic switching are also available by ordering AUF214EP for positive earth cars or AUF214EN for negative earth.

Ill. No. Part No. Description Qty. Rqd. Remarks
16 AUF214 FUEL PUMP ASSEMBLY, AUF200 series 1 With 'points' mechanism.
  AUF214EP FUEL PUMP ASSEMBLY, AUF200 series 1 With electronic switching; positive earth.
  AUF214EN FUEL PUMP ASSEMBLY, AUF200 series 1 With electronic switching; negative earth.
  AUF214P FUEL PUMP ASSEMBLY, AUF200 series 1 With electronic switching; non-genuine.
17 EPK200 REBUILD KIT, fuel pump 1 Fits genuine AUF214 pumps.
The rebuild kit includes a diaphragm, diaphragm gasket, armature spring and centralizing plate, rocker and contact blade assembly, rocker pivot pin, lead washer and end cover seal washer, inlet filter, inlet and outlet valves and sealing washers.

Ill. No. Part No. Description Qty. Rqd. Remarks
18 AUB613 BODY, fuel pump 1 Fits AUF200, AUF201 and AUF214 pumps.
19 AUB6097 DIAPHRAGM AND SPINDLE ASS'Y 1 Fits AUF214 pumps.
20 AUB582 WASHER, impact 1 Fits AUF214 pumps.
21 AUB758 SPRING, armature 1 Fits AUF214 pumps.
22 AUB6080 HOUSING, coil 1 Fits AUF201 and AUF214 pumps.
23 AUB660 SCREW, housing to pump body 6 Fits AUF200, AUF201 and AUF214 pumps.
24 AUB809 GASKET, housing to pump body 1 Fits AUF214 pumps.
25 BZX1043 PLATE, armature centralizing 1 Fits AUF214 pumps.
26 AUA692 CONNECTOR, Lucar spade 1 Fits AUF200, AUF201 and AUF214 pumps.
27 AUA699 SCREW, connector to housing 1 Fits AUF200, AUF201 and AUF214 pumps.
28 AUA585 WASHER, locking 1 Fits AUF200, AUF201 and AUF214 pumps.
29 AUA1455 TAG, terminal, 5 BA 1 Fits all pumps.
30 AUA1456 TAG, terminal, 2 BA 1 Fits all pumps.
31 AUA1065 TAG, earth, 2 BA 1 Fits AUF214 pumps.
32 AUA1435 PIN, rocker pivot 1 Fits all pumps.
33 AUB6106 ROCKER AND CONTACT BLADE ASS'Y 1 'Points'; fits all pumps.
34 AUB6107 ROCKER MECHANISM 1 Included in rocker and contact blade ass'y.
35 AUB6034 PEDESTAL 1 Fits all pumps.
36 AUA1468 STUD, terminal 1 Fits all pumps.
37 AUA1863 WASHER, locking 1 Fits all pumps.
38 AUA1662 WASHER, lead 1 Fits all pumps.
39 AUA1661 NUT, terminal 1 Fits all pumps.
40 AUB609 WASHER, sealing end cover 1 Fits AUF214 pumps.
41 AUA6036 BLADE, contact 1 Included in rocker and contact blade ass'y.
42 AUA565 SCREW, contact blade 1 Fits all pumps.
43 AUA566 WASHER, plain 1 Fits all pumps.
44 AUA1459 SCREW, pedestal to housing 2 Fits all pumps.
45 AUA1863 WASHER, locking 2 Fits all pumps.
46 AUA692 CONNECTOR, Lucar spade 1 Fits all pumps.
47 AUA878 NUT, connector 1 Fits all pumps.
48 WF702105 WASHER, shakeproof 1 Fits all pumps.
49 AUD2565 SLEEVE, insulating 1 Fits AUF214 pumps.
50 AUA1466 END COVER, flat, without breather valve hole 1 Fits AUA83, AUB83 and AUF200 pumps.
  AUB700 END COVER, flat, with breather valve hole 1 Fits AUF201 pumps.
  BZX1025 END COVER, stepped, with breather valve hole 1 Fits AUF214 pumps.
51 AUB9009 VALVE ASSEMBLY, breather 1 Fits AUF201 and AUF214 pumps.
52 AUB716 BAND, sealing end cover 1 Fits AUF214 pumps.
53 AUB617 FILTER, inlet 1 Fits AUF200, AUF201 and AUF214 pumps.
54 AUB6062 VALVE, inlet and outlet 2 Fits AUF214 pumps.
55 AUB676 WASHER, sealing valves 3 Fits AUF200, AUF201 and AUF214 pumps.
56 AUB663 NOZZLE, inlet and outlet, 5/16" 2 Fits AUF200, AUF201 and AUF214 pumps.
  AUB846 NOZZLE, inlet and outlet, 1/4" 2 Alternative; fits AUF214 pumps.
57 AUB668 PLATE, nozzle clamping 1 Fits AUF200, AUF201 and AUF214 pumps.
58 AUB660 SCREW, plate to pump body 2 Fits AUF200, AUF201 and AUF214 pumps.
59 21A750 BRACKET, fuel pump to subframe 1
60 SH604041 SCREW, bracket to subframe 2
61 LWZ204 WASHER, locking 2
62 21A632 CLIP, fuel pump mounting 1
63 ACB9252 STRAP, rubber, fuel pump mounting 1
64 ACB9270 WASHER, abutment 1 If fitted.
Rarely seen nowadays, this rubber washer fits under the flange of the coil housing and prevents the pump earthing connection from chafing on the pump mounting clip (usually part of the rubber strap squeezes out when the clip is tightened and does this job more than adequately).

Ill. No. Part No. Description Qty. Rqd. Remarks
65 FNZ105 NUT, clip to bracket 1
66 LWZ205 WASHER, locking 1
67 SH604071 SCREW, clip 1
68 LNZ204 NUT, nyloc 1

Mechanical Fuel Pumps
AUF705 Mechanical Pump
Saloons Except Cooper S, 1969-79 Approx.
Clubman Estate, 1969-79 Approx.
Van and Pick Up, 1970-79 Approx.
The AUF705 fuel pump has not been in production for many years; some parts are still available to repair or rebuild it, but more often than not owners opt to replace the pump with the later AZX1818 pump assembly.  If this is done, note that the gasket and distance piece AUB5012 shown here is unique to the AUF705 pump, so the later 12G4520B gasket and distance piece must also be fitted.

Ill. No. Part No. Description Qty. Rqd. Remarks
69 AUF705 FUEL PUMP ASSEMBLY 1
70 AUE555 REPAIR KIT, fuel pump 1
71 AUB5011 COVER, outlet 1
72 AUB1022 SCREW, pump assembly, long 3
73 AUB1021 SCREW, pump assembly, short 3
74 AUB1028 SPRING, diaphragm 1
75 AUB5005 LEVER, pump actuating 1
76 AUB1014 PIN, lever pivot 1
77 AUB1011 SPRING, lever 1
78 AUB5012 GASKET AND DISTANCE PIECE, pump mounting 1
79 GUG705779 GASKET, pump mounting 1
80 CHS2515 STUD, pump to cylinder block 2
81 12A1 NUT 1
  FNZ105 NUT 2 Alternative.
82 LWZ205 WASHER, locking 2

AZX1818, AZX1817 and WND10005 Mechanical Pumps
Saloons, 1979 Approx. to 1994
Clubman Estate and HL Estate, 1979 Approx. to 1982
Van and Pick Up, 1979 Approx. to 1984
The early mechanical fuel pump AUF705 was replaced around 1979 by a sealed unit (not rebuildable) design, the first incarnation of which was pump part number AUF812.  This in turn was replaced by the mildly modified design detailed here, AZX1818, at the end of the 1980s.  AZX1818 is supplied by the factory for all previous mechanical fuel pump applications.

Special note for pre-1985 automatic gearbox Mini owners: If you are replacing your fuel pump with an AZX1818 unit, you will also need to change the gearbox kickdown control rod to the post-1985 design, part number DAM8393, because there is insufficient fuel pump clearance with the original rod.

Ill. No. Part No. Description Qty. Rqd. Remarks
83 AZX1818 FUEL PUMP ASSEMBLY, genuine 1 All models except Cooper, 1979 approx. to 1992.
  AZX1818P FUEL PUMP ASSEMBLY, non-genuine 1 All models except Cooper, 1979 approx. to 1992.
  AZX1817 FUEL PUMP ASSEMBLY 1 Cooper (RSP) and Cooper 1.3, 1990-91.
  WND10005 FUEL PUMP ASSEMBLY 1 1992-94.
84 GUG705603 GASKET AND DISTANCE PIECE, pump mounting 1
85 12G3494B GASKET, pump mounting 1
86 CHS2515 STUD, pump to cylinder block 2
87 FNZ105 NUT 2
88 LWZ205 WASHER, locking 2
View as:
Show items
Items 1 to 12 of 86 total
1 2 3 4 5 6 ...
Part No: AZX1818P
  In Stock
19 points earn (£0.19)
£22.80 inc VAT
£19.00 ex VAT
Part No: WND10005
  In Stock
75 points earn (£0.75)
£90.00 inc VAT
£75.00 ex VAT
Part No: WF702105
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: GUG705603
  In Stock
6 points earn (£0.06)
£8.10 inc VAT
£6.75 ex VAT
Part No: EPK200
  In Stock
34 points earn (£0.34)
£41.29 inc VAT
£34.41 ex VAT
Part No: BZX1043
  Available to Customer Order
1 points earn (£0.01)
£1.54 inc VAT
£1.28 ex VAT
Part No: BZX1025
  Available to Customer Order
3 points earn (£0.03)
£4.66 inc VAT
£3.88 ex VAT
Part No: AZX1818
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: AZX1817
  In Stock
63 points earn (£0.63)
£76.50 inc VAT
£63.75 ex VAT
Part No: AUF705
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: AUF214P
  In Stock
57 points earn (£0.57)
£68.83 inc VAT
£57.36 ex VAT
Part No: AUF214EP
  In Stock
106 points earn (£1.06)
£127.50 inc VAT
£106.25 ex VAT
Add to cart
Items 1 to 12 of 86 total
1 2 3 4 5 6 ...
Request a free catalogue
