Alternators

Part No: LWZ204
  In Stock
WASHER-SPRING, 1/4''
Required Quantity: 1
£0.22 inc VAT
£0.18 ex VAT
Part No: PTZ1003
  In Stock
1960-68.
£0.25 inc VAT
£0.21 ex VAT
Part No: FNZ104
  In Stock
NUT - 1/4" UNF
Required Quantity: 1
£0.35 inc VAT
£0.29 ex VAT
Part No: LWZ207
  In Stock
WASHER-SPRING,7/16''
Required Quantity: 1
£0.41 inc VAT
£0.34 ex VAT
Part No: 518848
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 606828
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 607687
  Available to Customer Order
15 points earn (£0.15)
£18.32 inc VAT
£15.27 ex VAT
Part No: 607691
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 608074
  Available to Customer Order
5 points earn (£0.05)
£7.04 inc VAT
£5.87 ex VAT
Part No: 608423
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 90607688
  Available to Customer Order
11 points earn (£0.11)
£14.15 inc VAT
£11.79 ex VAT
Part No: 12G1054
  No Longer Available
USE: 13H7061
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: 13H2177
  Available to Customer Order
FAN-11 AC ALTERNATOR
Required Quantity: 1
14 points earn (£0.14)
£17.56 inc VAT
£14.63 ex VAT
Part No: 13H8783
  In Stock
£0.55 inc VAT
£0.46 ex VAT
Part No: 17H8689
  No Longer Available
BEARING-REAR-11AC ALTERNATOR
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: 17H8695
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 18G8619
  Available to Customer Order
7 points earn (£0.07)
£9.54 inc VAT
£7.95 ex VAT
Part No: 18G8620
  In Stock
14 points earn (£0.14)
£17.34 inc VAT
£14.45 ex VAT
Part No: 27H3832
  No Longer Available
'O' RING-11AC ALTERNATOR
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: 27H8146
  No Longer Available
HEATSINK-11AC ALTERNATOR
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: 37H2250
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 37H2258
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 37H2884
  No Longer Available
ROTOR-11AC ALTERNATOR
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: 37H3096
  No Longer Available
STATOR-11AC ALTERNATOR
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: 37H6023
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 37H6834
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 37H6924
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 607693A
  Available to Customer Order
7 points earn (£0.07)
£8.56 inc VAT
£7.13 ex VAT
Part No: 97H626
  Available to Customer Order
BEARING-FRONT-11AC ALTERNATOR
Required Quantity: 1
5 points earn (£0.05)
£6.00 inc VAT
£5.00 ex VAT
Part No: AAU2053
  No Longer Available
ROTOR-16 & 17ACR ALTERNATORS
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: AAU3956A
  Available to Customer Order
9 points earn (£0.09)
£11.60 inc VAT
£9.67 ex VAT
Part No: AAU5455A
  No Longer Available
PULLEY-GXE2257 ALTERNATOR
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: AAU8600
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: ADU4354
  No Longer Available
USE:AAU3956A
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: ADU4669
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: ADU4670
  In Stock
COVER-PLASTIC-ALTERNATOR PLUG
Required Quantity: 1
1 points earn (£0.01)
£1.91 inc VAT
£1.59 ex VAT
Part No: ADU7778
  No Longer Available
PULLEY-GXE2297 ALTERNATOR
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: ADU7781
  No Longer Available
FAN-GXE2297 ALTERNATOR
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: ADU9192
  In Stock
4 points earn (£0.04)
£4.97 inc VAT
£4.14 ex VAT
Part No: AEU1526A
  No Longer Available
REGULATOR-GXE2257 ALTERNATOR
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: AEU1528A
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: AEU1532A
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: AEU1616
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: AEU1671
  No Longer Available
COVER-REAR-GXE2257 ALTERNATOR
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: AEU1710A
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: ALU1003
  Currently Unavailable
£0.83 inc VAT
£0.69 ex VAT
Part No: AUU1097
  Available to Customer Order
FAN-GXE2297 ALTERNATOR
Required Quantity: 1
9 points earn (£0.09)
£11.81 inc VAT
£9.84 ex VAT
Part No: BAU1461
  Available to Customer Order
PULLEY-ALTERNATOR-2 1/2''
Required Quantity: 1
12 points earn (£0.12)
£14.63 inc VAT
£12.19 ex VAT
Part No: BAU1825A
  No Longer Available
RECTIFIER-GXE2257 ALTERNATOR
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: BAU2193A
  No Longer Available
SLIP RING-GXE2257 ALTERNATOR
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: BAU2195A
  No Longer Available
BRUSH BOX-GXE2257 ALTERNATOR
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: BAU4921
  In Stock
39 points earn (£0.39)
£46.80 inc VAT
£39.00 ex VAT
Part No: BAU4923
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: BAU4924
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: BAU4926
  In Stock
13 points earn (£0.13)
£16.68 inc VAT
£13.90 ex VAT
Part No: BAU4927
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: BAU4928
  No Longer Available
KIT-SCREWS-55 AMP ALTERNATOR
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: BAU5265
  In Stock
24 points earn (£0.24)
£29.06 inc VAT
£24.22 ex VAT
Part No: BAU5813
  Available to Customer Order
RECTIFIER-GXE2297 ALTERNATOR
Required Quantity: 1
43 points earn (£0.43)
£52.19 inc VAT
£43.49 ex VAT
Part No: BMK1092
  Available to Customer Order
52 points earn (£0.52)
£63.25 inc VAT
£52.71 ex VAT
Part No: BMK685
  Available to Customer Order
FIELD RELAY-11AC ALTERNATOR
Required Quantity: 1
21 points earn (£0.21)
£25.82 inc VAT
£21.52 ex VAT
Part No: C37222A
  Available to Customer Order
16 points earn (£0.16)
£20.08 inc VAT
£16.73 ex VAT
Part No: FNZ207
  In Stock
NUT-THIN-7/16 UNF
Required Quantity: 1
£0.29 inc VAT
£0.24 ex VAT
Part No: GCB10813
  In Stock
4 points earn (£0.04)
£5.04 inc VAT
£4.20 ex VAT
Part No: GCB10825
  In Stock
4 points earn (£0.04)
£5.04 inc VAT
£4.20 ex VAT
Part No: GCB10838
  In Stock
4 points earn (£0.04)
£5.04 inc VAT
£4.20 ex VAT
Part No: GEU2201
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: GEU250
  In Stock
PLUG KIT-ALTERNATOR
Required Quantity: 1
4 points earn (£0.04)
£5.70 inc VAT
£4.75 ex VAT
Part No: GEU6609
  Available to Customer Order
30 points earn (£0.30)
£36.28 inc VAT
£30.23 ex VAT
Part No: GGB501
  No Longer Available
BRUSH SET-GEU2201 ALTERNATOR
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: GGB504
  In Stock
3 points earn (£0.03)
£4.74 inc VAT
£3.95 ex VAT
Part No: GGB512
  In Stock
BRUSH SET-GXE2257 ALTERNATOR
Required Quantity: 1
7 points earn (£0.07)
£8.78 inc VAT
£7.32 ex VAT
Part No: GHF425
  No Longer Available
USE: PTZ1004
Required Quantity: 2
£0.00 inc VAT
£0.00 ex VAT
Part No: GMB50920
  Awaiting Stock - On Order
4 points earn (£0.04)
£5.94 inc VAT
£4.95 ex VAT
Part No: GMB51005
  In Stock
5 points earn (£0.05)
£6.36 inc VAT
£5.30 ex VAT
Part No: GNU2518
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: GNU2521
  Awaiting Stock - On Order
84 points earn (£0.84)
£100.80 inc VAT
£84.00 ex VAT
Part No: GXE2211
  In Stock
44 points earn (£0.44)
£53.94 inc VAT
£44.95 ex VAT
Part No: GXE2257
  No Longer Available
USE: GXE2211 OR GXE2297
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: GXE2297
  In Stock
52 points earn (£0.52)
£63.47 inc VAT
£52.89 ex VAT
Part No: JZV1143
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: NKC484A
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: PMZ408
  In Stock
£0.35 inc VAT
£0.29 ex VAT
Part No: PQS100920
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: PQS100990
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: RTC1003
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: RTC1004
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT

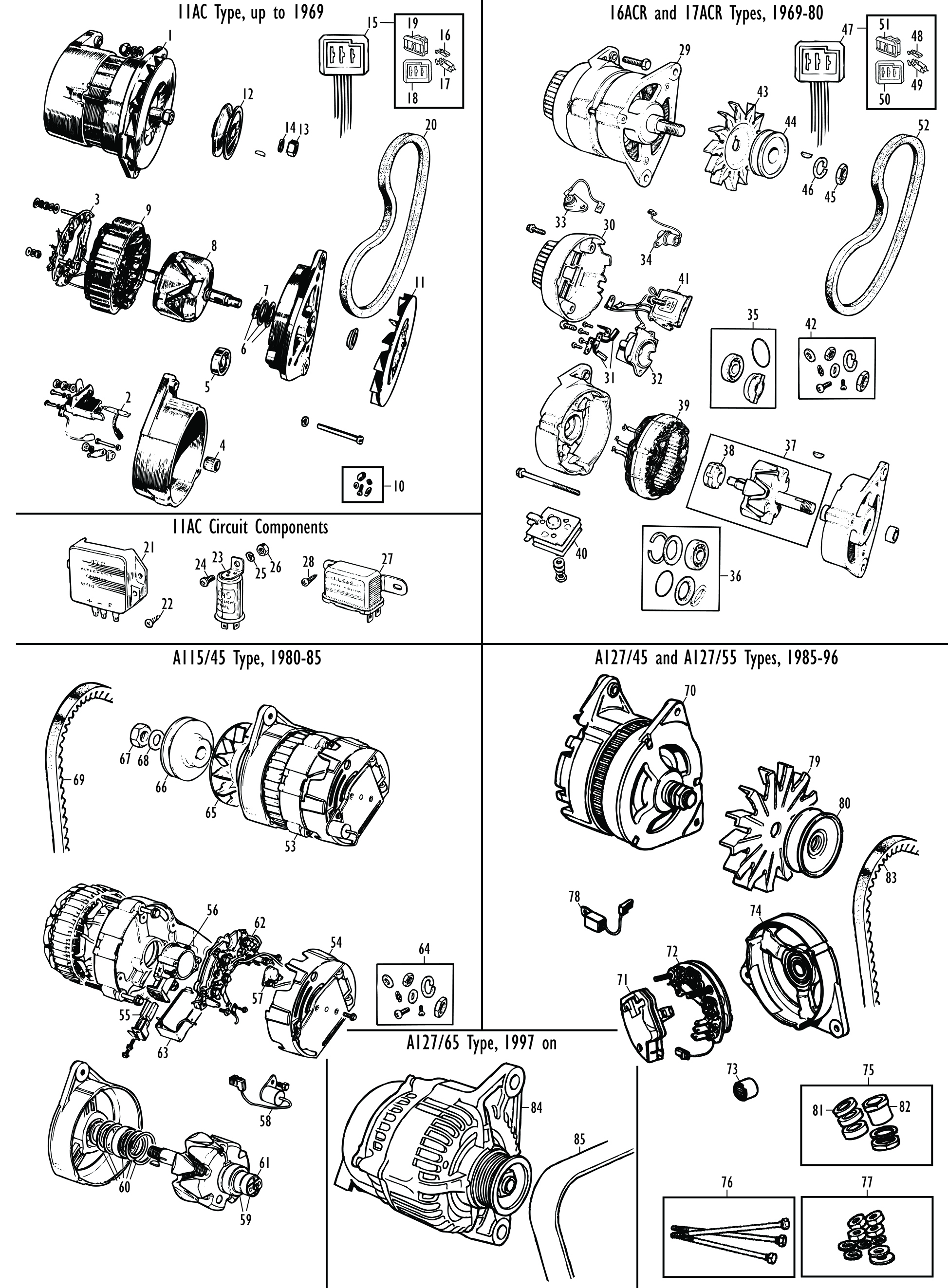

Alternators
11AC Type (External Regulator) Up To 1969
Reconditioning AC type alternators is becoming more difficult, due to the limited stocks of spare parts available. If you require a reconditioned unit, please contact us first to ensure we can help you. Replacing an external regulator AC alternator with a more serviceable and more powerful internal regulator ACR type is an option, but you should be confident of your electrical abilities if you intend to make the conversion. AC alternator fitted Minis are positive earth, and you will need to convert the system to negative earth to fit an ACR alternator. There is also a quantity of terminal conversion and rewiring to be carried out to connect an ACR alternator into the system.

Ill. No. Part No. Description Qty. Rqd. Remarks
1 GEU2201 ALTERNATOR, reconditioned, exchange 1 Not supplied with pulley and fan.
2 GGB501 BRUSH SET 1
3 27H8146 HEATSINK, with anode base diodes 1
4 17H8689 BEARING, rear 1
5 97H626 BEARING, front 1
6 37H6834 KIT, bearing retaining 1
7 27H3832 'O' RING 1
8 37H2884 ROTOR 1
9 37H3096 STATOR 1
10 17H8695 SUNDRY PARTS KIT 1
11 13H2177 FAN 1
12 12G1054 PULLEY 1
13 FNZ207 NUT, pulley and fan securing 1 Included in sundry parts kit.
14 LWZ207 WASHER, locking 1 Included in sundry parts kit.
15 GEU250 PLUG KIT 1 Use when modifying AC type system to accept ACR unit.
16 13H8783 CONNECTOR, plug, small 1 Included in GEU250 plug kit.
17 ALU1003 CONNECTOR, plug, large 2 Included in GEU250 plug kit.
18 ADU4669 HOUSING, plug 1 Included in GEU250 plug kit.
19 ADU4670 COVER, plug 1 Included in GEU250 plug kit.
20 GCB10838 DRIVE BELT, alternator, water pump and fan 1 Use with original 4 1/2" dia. water pump pulley.

11AC Alternator Circuit Components
Ill. No. Part No. Description Qty. Rqd. Remarks
21 GEU6609 REGULATOR BOX, Lucas 4TR 1
22 GHF425 SCREW, self tapping, regulator attaching 2
23 BMK1092 CONTROL UNIT, warning light 1
24 PMZ408 SCREW, control unit attaching 1
25 LWZ204 WASHER, locking 1
26 FNZ104 NUT 1
27 BMK685 FIELD RELAY, alternator 1
28 PTZ1003 SCREW, self tapping, field relay attaching 2

16ACR and 17ACR Types (Internal Regulator) 1969-80
Several different alternators were fitted in this period, of varying power rating (16 or 17ACR) and using two methods of sensing. Initially battery-sensed alternators were fitted; at unspecified times the designs changed to machine-sensed. The situation today as regards replacement alternators is that all ACR types (as far as Mini is concerned) supersede to a single, 17ACR, machine-sensed unit.

If you have an early 1970s Mini and you suspect the alternator hasn't been changed in the last 15 years or so, then you may well still have a battery-sensed alternator fitted. There should be no problem in exchanging it for a GXE2211 machine-sensed item.
Ill. No. Part No. Description Qty. Rqd. Remarks
29 GXE2211 ALTERNATOR, reconditioned, outright 1 17ACR, machine-sensed; now 65 amp.

The following are parts specific to original Mini equipment ACR alternators. The Lucas identifying number should still be visible on the casing, and will usually be required when ordering parts. Battery-sensed alternators were numbered 23748, 23750 or 23804; machine-sensed units were numbered 23640, 23725, 23774 or 23802.

Ill. No. Part No. Description Qty. Rqd. Remarks
30 NKC484A COVER, rear 1
31 GGB504 BRUSH SET 1
32 607693A BRUSH BOX 1
33 AAU8600 SURGE PROTECTOR 1 Not for 23640 alternator.
34 608074 CAPACITOR, suppression 1 For 23748, 23802 and 23804 alternators.
35 18G8620 BEARING KIT, rear 1
36 18G8619 BEARING KIT, front 1 For 23748, 23750, 23802 and 23804 alternators.
  518848 BEARING KIT, front 1 For 23640, 23725 and 23774 alternators.
37 AAU2053 ROTOR 1 For 23640, 23750 and 23804 alternators.
  607691 ROTOR 1 For 23725, 23748, 23774 and 23802 alternators.
38 37H2250 SLIP RING 1 For 23640, 23750 and 23804 alternators.
  608423 SLIP RING 1 For 23725, 23748, 23774 and 23802 alternators.
39 606828 STATOR 1 For 23640, 23750 and 23804 alternators.
  37H6023 STATOR 1 For 23725, 23748, 23774 and 23802 alternators.
40 37H6924 RECTIFIER 1 For 23640 alternator.
  90607688 RECTIFIER 1 For 23725, 23774 and 23802 alternators.
  RTC1004 RECTIFIER 1 For 23748, 23750 and 23804 alternators.
41 607687 REGULATOR, internal 1 For 23640, 23725, 23774 and 23802 alternators.
  RTC1003 REGULATOR, internal 1 For 23748, 23750 and 23804 alternators.
42 37H2258 SUNDRY PARTS KIT 1
43 C37222A FAN 1 Use with 12G1054 pulley.
  AAU3956A FAN 1 Use with BAU1461 pulley.
44 12G1054 PULLEY, 2 3/4" wide 1 Use with C37222A fan.
  BAU1461 PULLEY, 2 1/2" wide 1 Use with AAU3956A fan.
45 FNZ207 NUT, pulley and fan securing 1 Included in sundry parts kit.
46 LWZ207 WASHER, locking 1 Included in sundry parts kit.
47 GEU250 PLUG KIT 1
48 13H8783 CONNECTOR, plug, small 1 Included in GEU250 plug kit.
49 ALU1003 CONNECTOR, plug, large 2 Included in GEU250 plug kit.
50 ADU4669 HOUSING, plug 1 Included in GEU250 plug kit.
51 ADU4670 COVER, plug 1 Included in GEU250 plug kit.
52 GCB10813 DRIVE BELT, alternator, water pump and fan 1 Use when 3 7/8" dia. water pump pulley is fitted.
  GCB10838 DRIVE BELT, alternator, water pump and fan 1 Use when 4 1/2" dia. water pump pulley is fitted.

A115/45 Type 1980-85
Ill. No. Part No. Description Qty. Rqd. Remarks
53 GXE2257 ALTERNATOR, reconditioned, outright 1 Not supplied with pulley, fan or capacitor.
54 AEU1671 COVER, rear 1
55 GGB512 BRUSH SET 1
56 BAU2195A BRUSH BOX 1
57 AEU1528A SURGE PROTECTOR 1
58 AEU1616 CAPACITOR, suppression 1
59 AEU1532A BEARING KIT, rear 1
60 18G8619 BEARING KIT, front 1
61 BAU2193A SLIP RING 1
62 BAU1825A RECTIFIER 1
63 AEU1526A REGULATOR 1
64 AEU1710A SUNDRY PARTS KIT 1
65 ADU4354 FAN 1
66 AAU5455A PULLEY 1
67 FNZ207 NUT, pulley and fan securing 1 Included in sundry parts kit.
68 LWZ207 WASHER, locking 1 Included in sundry parts kit.
69 GCB10813 DRIVE BELT, alternator, water pump and fan 1 Use when 3 7/8" dia. water pump pulley is fitted.
  GCB10838 DRIVE BELT, alternator, water pump and fan 1 Use when 4 1/2" dia. water pump pulley is fitted.

A127/45 and A127/55 Types 1985-96
Whether your Mini is currently fitted with an A127/45 or A127/55 (45 or 55 amp) alternator, when you ask for a reconditioned unit you will receive a 55 amp rated alternator.
Ill. No. Part No. Description Qty. Rqd. Remarks
70 GXE2297 ALTERNATOR, reconditioned, outright 1 With pulley, fan and capacitor; not air conditioned models.
  GNU2518 ALTERNATOR, new 1 Not supplied with pulley, fan or capacitor; air conditioned models.
71 BAU5265 REGULATOR AND BRUSH BOX ASSY. 1 Includes brushes.
72 BAU5813 RECTIFIER 1
73 BAU4923 BEARING, rear 1
74 BAU4921 END COVER, front, with bearing 1
75 BAU4927 SUNDRY PARTS KIT 1 Includes nut and washer for pulley and fan.
76 BAU4926 THROUGH BOLT KIT 1
77 BAU4928 TERMINAL NUT AND WASHER KIT 1
78 BAU4924 CAPACITOR, suppression 1
79 AUU1097 FAN 1
  ADU7781 FAN 1 Alternative.
80 ADU7778 PULLEY 1
81 JZV1143 WASHER, fan support 1
82 ADU9192 SPACER, pulley 1
83 GCB10825 DRIVE BELT, alternator and water pump 1 Use when 4 3/4" dia. water pump pulley is fitted.
  GCB10813 DRIVE BELT, alternator and water pump 1 Use when 3 7/8" dia. water pump pulley is fitted.
  PQS100920 DRIVE BELT, alternator 1 For air conditioned models.
  PQS100990 DRIVE BELT, compressor and water pump 1 For air conditioned models.

A127/65 Type 1997 On
Ill. No. Part No. Description Qty. Rqd. Remarks
84 GNU2521 ALTERNATOR, new 1 Supplied complete with pulley.
85 GMB50920 DRIVE BELT, alternator and water pump 1 Not air conditioned models.
  GMB51005 DRIVE BELT, compressor, alternator and water pump 1 Air conditioned models.
View as:
Show items
Items 1 to 12 of 87 total
1 2 3 4 5 6 ...
Part No: RTC1004
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: RTC1003
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: PQS100990
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: PQS100920
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: PMZ408
  In Stock
£0.35 inc VAT
£0.29 ex VAT
Part No: NKC484A
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: JZV1143
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: GXE2297
  In Stock
52 points earn (£0.52)
£63.47 inc VAT
£52.89 ex VAT
Part No: GXE2257
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: GXE2211
  In Stock
44 points earn (£0.44)
£53.94 inc VAT
£44.95 ex VAT
Part No: GNU2521
  Awaiting Stock - On Order
84 points earn (£0.84)
£100.80 inc VAT
£84.00 ex VAT
Part No: GNU2518
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Add to cart
Items 1 to 12 of 87 total
1 2 3 4 5 6 ...
Request a free catalogue
