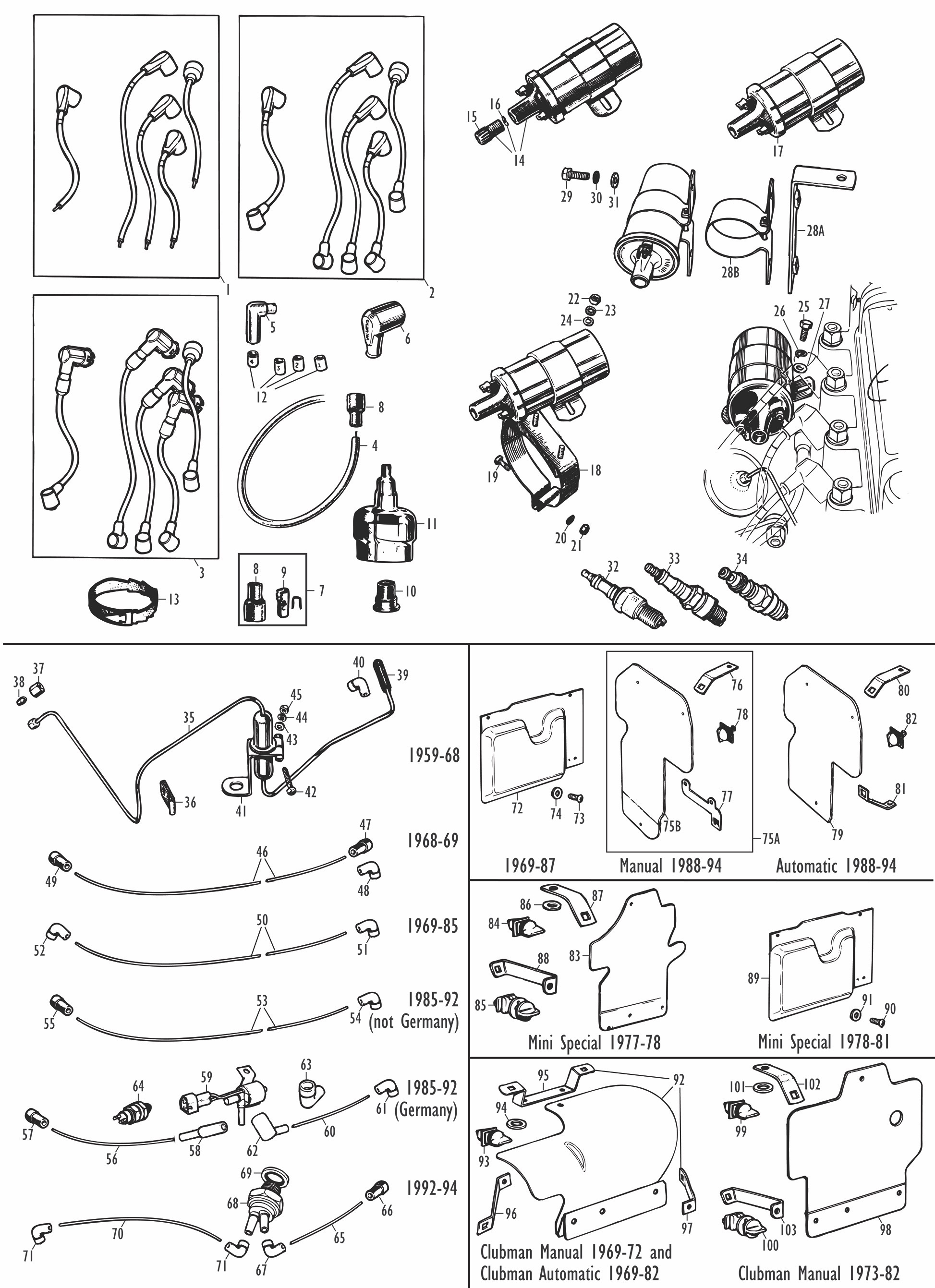

Ignition - carburetter models

Ignition Leads and Lead Sets
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
1	GHT101	LEAD SET, high tension, copper	1	For side entry distributor caps; usually 1959-73 models.
2	GHT241	LEAD SET, high tension, copper	1	For top entry distributor caps; usually 1974-94 models.
3	GHT241S	LEAD SET, high tension, uprated silicone type	1	For top entry distributor caps.
4	AAA5981M	H. T. LEAD, copper, black insulation	A/R	Sold per foot.
	C-AHT266	H. T. LEAD, copper, black and yellow insulation	A/R	Sold per metre; 1960s competition type.
5	3H1422	SUPPRESSOR CAP, spark plug, Lucas type	4	1960s period fitment.
6	3H2070	SUPPRESSOR CAP, spark plug, Champion type	4	1960s period fitment.
7	GCL1110	LEAD END KIT, distributor and coil	A/R	For top entry distributor cap and push-in lead type coil.
8	8G728	COVER, waterproof	A/R	Included in lead end kit.
9	12G1476	TERMINAL	A/R	Included in lead end kit.
10	8G536	COVER, waterproof, coil nut	1	For original style 1960s coil with acorn nut lead fitting.
11	8G727	COVER, waterproof, coil end	1	For later style coil with push-in leads.
12	ST255	LABEL SET, lead numbering	1	Useful accessory! Standard fitment in the 1960s.
13	13H6107	CLEAT, fir tree, leads	1

Ignition Coils
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
14	BHA4611	COIL, screw-on H.T. lead and screw-on/spade terminals	1	Original style coil, 1959-69.
15	3H2695	NUT, 'acorn'	1	Original style coil, 1959-69.
16	214279A	WASHER, copper	1	Original style coil, 1959-69.
17	GCL110	COIL, push-on H. T. lead and spade terminals	1	Original style coil, 1969-84 (not ballasted).
	DLB105	COIL, Lucas Sports type	1	Alternative, 1959-84 (not ballasted).
	GCL144	COIL, push-on H. T. lead and spade terminals	1	Original coil, 1984-92 (ballasted); 1000 engines.
	GCL143	COIL, push-on H. T. lead and spade terminals	1	Original coil, 1990-94 (ballasted); 1275 engines.
	GCL132	COIL, push-on H. T. lead and spade terminals	1	Alternative, 1984-94 (ballasted).
18	12H51	BRACKET, coil to dynamo	1	For 1959-69 models with dynamo.
19	SH604101	SCREW, clamping bracket	1
20	LWZ204	WASHER, locking	1
21	FNZ104	NUT, clamp screw	1
22	FNZ105	NUT, coil to bracket	2
23	LWZ405	WASHER, shakeproof	2
24	WC108051	WASHER, plain	2
25	SH505071	SCREW, coil to flywheel housing	2	For 1959-60 models with dynamo; 1959-69 models with alternator. Also used as alternative mounting for 1969-85 models.
26	LWZ205	WASHER, locking	2
27	PWZ105	WASHER, plain	2
28A	12G2994	BRACKET, coil to cylinder head	1	For 1969-94 models.
28B	JZV1347	BRACKET, coil clamping	1	For 1985-94 models with Bosch type coil.
	JZV1348	BRACKET, coil clamping	1	For 1985-94 models with Ducellier type coil.
	JZV1349	BRACKET, coil clamping	1	For 1990-94 models with Cajavec type coil.
	SCB001	BRACKET, coil clamping	1	Stainless steel accessory.
	ABU360010	BRACKET, coil to cylinder head	1	For 1994 models with air conditioning (Japan).
29	SH605041	SCREW, coil to bracket	2
30	LWZ305	WASHER, shakeproof	2
31	WC108051	WASHER, plain	2

Spark Plugs
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
32	GSP4362	SPARK PLUG, non-suppressed type (N9Y)	4	1959-86; original fitment.
33	GSP4382	SPARK PLUG, non-suppressed type (N12Y)	4	1987-89; original fitment.
34	GSP4482	SPARK PLUG, suppressed type	4	1990-94, carburetter models; original fitment.
	BP5ES	SPARK PLUG, non-suppressed type, NGK	4	1959-80 approx (pre-A+ engines).
	BP6ES	SPARK PLUG, non-suppressed type, NGK	4	1980-92 approx (A+ engines, not electronic ignition).
	BPR6ES	SPARK PLUG, suppressed type, NGK	4	1990-94 approx (A+ engines with electronic ignition).
	BPR7ES	SPARK PLUG, suppressed type, NGK	4	Tuned A+ engines with electronic ignition.

Vacuum Pipes
1959-68, All Models Except Cooper S
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
35	2A1007	VACUUM PIPE, with fuel trap, metal	1	1959-68, manual models; not Cooper.
	12G737	VACUUM PIPE, with fuel trap, metal	1	1964-68, automatic models.
	12A227	VACUUM PIPE, with fuel trap, metal	1	1961-68, Cooper.

In the event of the correct metal vacuum pipes not being available, the following item (actually made for pre-1968 MGBs) can be used instead. While it will maintain original under-bonnet appearance, thereby avoiding the substitution of the later nylon pipe, it will have to be trimmed to fit.
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
	12H733	VACUUM PIPE, with fuel trap, metal	1	1959-68, replacement.
36	ACH9009	P CLIP, pipe to cylinder head	1	1959-61 models.
37	6K650	NUT, distributor vacuum advance union	1	Included in metal vacuum pipe assemblies.
38	6K549	OLIVE, distributor vacuum advance union	1	Included in metal vacuum pipe assemblies.
39	ACH9041	CONNECTOR, rubber, pipe to carburetter, straight	1	1959-68, manual models.
40	12B2062	CONNECTOR, rubber, pipe to carburetter, angled	1	1964-68, automatic models.
41	2A1010	CLIP, fuel trap to cylinder head	1	1959-68; not 998 Cooper.
	12A249	CLIP, fuel trap to cylinder head	1	1963-68; 998 Cooper.
42	PMZ216	SCREW, clamping fuel trap	1
43	PWZ102	WASHER, plain	1
44	LWZ302	WASHER, shakeproof	1
45	CNZ102	NUT	1

1968-69, All Models Except Cooper S
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
46	37H4229	VACUUM PIPE, nylon, 1 metre length	A/R	508mm required.
47	12B2095	CONNECTOR, nylon, pipe, straight	1	Manual models.
48	12B2062	CONNECTOR, rubber, pipe, angled	1	Automatic models.
49	12B2095	CONNECTOR, nylon, pipe to distributor, straight	1

1969-85, All Models Except Cooper S
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
50	37H4229	VACUUM PIPE, nylon, 1 metre length	A/R	508mm required.
51	12B2062	CONNECTOR, rubber, pipe to carburetter, angled	1
52	12B2062	CONNECTOR, rubber, pipe to distributor, angled	1

1985-92, 1000 and 1275 Carburetter Models, Not Germany
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
53	37H4229	VACUUM PIPE, nylon, 1 metre length	A/R	508mm required.
54	12B2062	CONNECTOR, rubber, pipe to carburetter, angled	1
55	12B2095	CONNECTOR, nylon, pipe to distributor, straight	1

1985-92, 1000 and 1275 Carburetter Models, Germany
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
56	37H4229	VACUUM PIPE, nylon, 1 metre length	A/R
57	12B2095	CONNECTOR, nylon, pipe to distributor, straight	1
58	TAM1085	CONNECTOR, nylon, pipe to valve, straight	1
59	AUU1105	VALVE, solenoid, vacuum advance cut out	1	Models without brake servo.
	AFU3863	VALVE, solenoid, vacuum advance cut out	1	Models with brake servo.
60	37H4229	VACUUM PIPE, nylon, 1 metre length	A/R
61	12B2062	CONNECTOR, rubber, pipe to carburetter, angled	1
62	TAM1084	CONNECTOR, nylon, pipe to valve, angled	1
63	152184	SLEEVE, vacuum pipe	1
64	ADU5066	SWITCH, gearbox, inhibitor, solenoid valve operating	1

1992-94, 1275 Carburetter Models
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
65	37H4229	VACUUM PIPE, nylon, 1 metre length	A/R
66	12B2095	CONNECTOR, nylon, pipe to carburetter, straight	1
67	12B2062	CONNECTOR, rubber, pipe to switch, angled	1
68	MAQ10002	SWITCH, vacuum, water thermostat controlled	1
69	MAW10001	WASHER, sealing switch in thermostat	1
70	37H4229	VACUUM PIPE, nylon, 1 metre length	A/R
71	12B2062	CONNECTOR, rubber, pipe to switch/distributor, angled	2

Ignition Splash Shields
All Carburetter Models Except Special and Clubman, 1969-94
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
72	GDS102	SPLASH SHIELD, ignition	1	1969-78.
	BHM773	SPLASH SHIELD, ignition	1	1978-87.
73	36052Z	SCREW, self tapping, shield to front panel	3
74	GHF306	WASHER, plain	3
75A	BHM1675	SPLASH SHIELD KIT	1	Fits most manual models - may require slight trimming to fit.
75B	NJT10004	SPLASH SHIELD, ignition	1	Manual models, 1988-94.
76	CAM4110	BRACKET, shield, upper	2
77	JZV1024	BRACKET, shield, lower	1
78	13H6461	TURN BUCKLE, shield fastening	3
79	NJT10014	SPLASH SHIELD, ignition	1	Automatic models, 1988-94.
80	NJU10002	BRACKET, shield, upper	2
81	JZV1136	BRACKET, shield, lower	1
82	13H6461	TURN BUCKLE, shield fastening	3

Mini Special, 1977-81
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
83	12A2299	SPLASH SHIELD, ignition	1	1977-78.
84	13H6461	TURN BUCKLE, shield fastening, upper	2
85	BHM1073	TURN BUCKLE, shield fastening, lower	1
86	PWZ107	WASHER, plain, cylinder head stud	2
87	CAM4110	BRACKET, shield, upper	2
88	12G4142	BRACKET, shield, lower	1
89	BHM773	SPLASH SHIELD, ignition	1	1978-81.
90	GHF423	SCREW, self tapping, shield to front panel	3
91	GHF306	WASHER, plain	3

Clubman (including 1275 GT) Models, 1969-82
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
92	GDS101	SPLASH SHIELD KIT	1	Manual and automatic, 1969-72; automatic, 1973 on.
93	13H6461	TURN BUCKLE, shield fastening	3	Included in splash shield kit.
94	PWZ106	WASHER, plain, cylinder head stud	6	Included in splash shield kit.
95	12G2477	BRACKET, shield, upper	1	Included in splash shield kit.
96	12G2479	BRACKET, shield, lower	1	Manual models; included in splash shield kit.
97	12G2481	BRACKET, shield, lower	1	Automatic models; included in splash shield kit.
98	CAM4130	SPLASH SHIELD, ignition	1	Manual models, 1973 on.
99	13H6461	TURN BUCKLE, shield fastening, upper	2
100	BHM1073	TURN BUCKLE, shield fastening, lower	1
101	PWZ107	WASHER, plain, cylinder head stud	2
102	CAM4110	BRACKET, shield, upper	2
103	12G4142	BRACKET, shield, lower	1
