Body Grommets

Body Grommets

Return back to contents

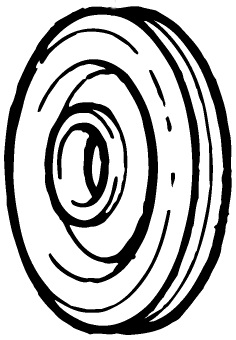

Standard Ferrule Grommets
Part No Fits Body Hole Dia. Internal Hole Dia. Material
RFN102 1/2" 1/8" Natural
RFR102 1/2" 1/8" Oil Resisting
RFN103 9/16" 3/16" Natural
RFR103 9/16" 3/16" Oil Resisting
RFN104 5/8" 1/4" Natural
RFN108 7/8" 1/2" Natural
RFN110 1" 5/8" Natural

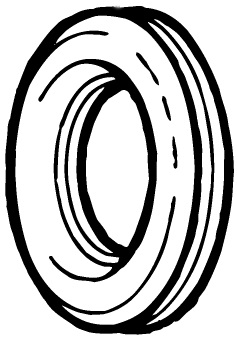

Standard Diaphragm Grommets
Part No Fits Body Hole Dia. Internal Hole Dia. Material
RFN302 3/8" 1/8" Natural
RFN303 5/8" 3/16" (std hole) Natural
RFN403 5/8" 3/16" (large) Natural
RFN503 1" 3/16" (extra large) Natural
RFN305 5/8" 5/16" (std hole) Natural
RFN405 5/8" 5/16" (large) Natural
RFN306 1" 3/8" Natural

Application Specific Grommets
Part No Fits Body Hole Dia. Internal Hole Dia. Application
14A7033 11/16" 1/8" Small dia. wiring harnesses through body
AYA10003 9/16” 5/16” Washer tube through dash (1993 on)
34G3651 15/16” 1/2" 1/2" dia. heater hose through dash
CLP6235 1 5/8” x 1 1/8” oval 5/8" 5/8" dia. heater hose through dash
CAM5969 25/64” 3/16” Choke/heater cables through dash
5L489 1 13/16” 1/2” Main harness through dash (1993 on)

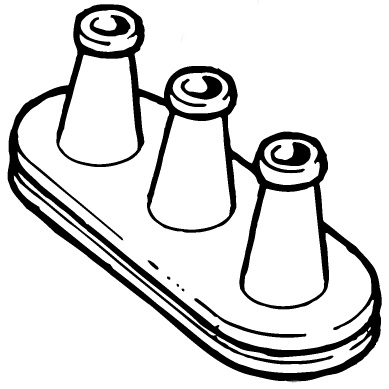

WYA10001 2 3/4” x 1 7/16” oval 1/4” Fuel injection pipes through rear floor
