‘P’ Clips

‘P’ Clips

Return back to contents

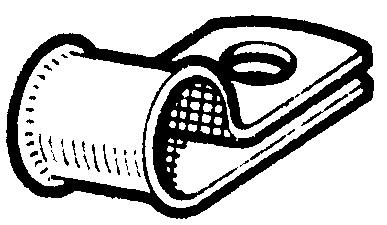

The P section cable and pipe clips here may all be fixed in place by imperial or metric screws.


‘P’ Clips
Part No Material Cable or Pipe Dia. Screw/Stud Hole Dia. Screw/Stud Dia.
PCR211 Metal 1/8" (3.1mm) 11/32" (8.7mm) 5/16" or M8
CP105051 Metal 3/16" (4.7mm) 7/32" (5.5mm) 0.190" (No 10) or 5mm (M5)
PCR307 Metal 3/16" (4.7mm) 7/32" (5.5mm) 0.190" (No 10) or M5
PCR411 Metal 1/4" (6.4mm) 11/32" (8.7mm) 5/16" or M8
PC64 Plastic 1/4" (6.4mm) 3/16” (4.8mm) 0.164” (No 8) or 4mm (M4)
PCR505 Metal 5/16" (7.9mm) 5/32" (3.9mm) 0.112" (No 4) or M3
CP105081 Metal 5/16" (7.9mm) 7/32" (5.5mm) 0.190" (No 10) or M5
PC10 Plastic 25/64" (10mm) 3/16” (4.8mm) 0.164” (No 8) or 4mm (M4)
PC12 Plastic 15/32" (12mm) 3/16” (4.8mm) 0.164” (No 8) or 4mm (M4)
PCR807 Metal 1/2" (12.7mm) 7/32" (5.5mm) 0.190" (No 10) or M5
PCR1211 Metal 3/4" (19mm) 11/32" (8.7mm) 5/16" or M8
PCR1411 Metal 7/8" (22.2mm) 11/32" (8.7mm) 5/16" or M8
