Set screws are threaded along their entire length, as opposed to bolts which have a shank. Like bolts, most set screws on the Mini have plain hexagonal (‘hex’) heads, but from the mid-1980s onwards flanged hex headed bolts were introduced for some applications.

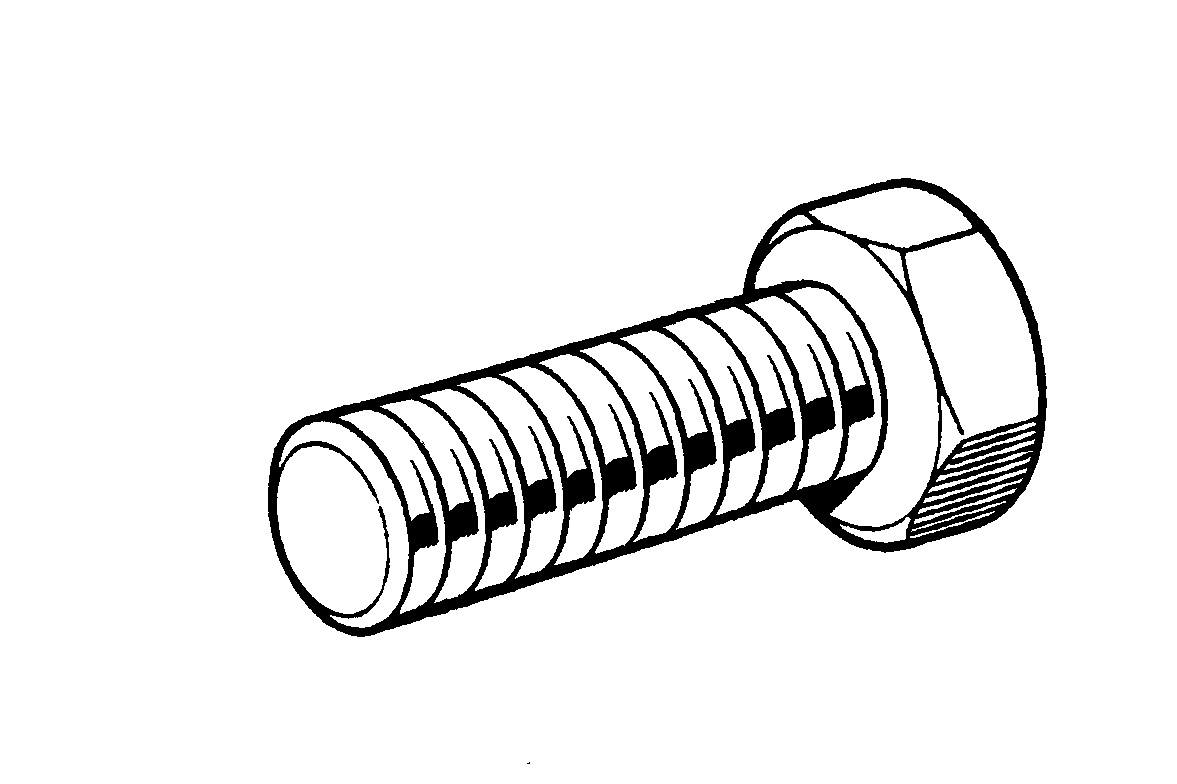

| Hex Head UNC Set Screws |  |
||||
| Part No | Nom. Thread Dia. | Thread Type | Overall Length | Remarks | Spanner Size |
| SH504031 | 1/4" | UNC | 3/8" | Zinc | 7/16 AF |
| SH504051 | 1/4" | UNC | 5/8" | Zinc | 7/16 AF |
| SH504061 | 1/4" | UNC | 3/4" | Zinc | 7/16 AF |
| SH504071 | 1/4" | UNC | 7/8" | Zinc | 7/16 AF |
| SH504161 | 1/4" | UNC | 2" | Zinc | 7/16 AF |
| SH505041 | 5/16" | UNC | 1/2" | Zinc | 1/2 AF |
| SH505051 | 5/16" | UNC | 5/8" | Zinc | 1/2 AF |
| SH505061 | 5/16" | UNC | 3/4" | Zinc | 1/2 AF |
| SH505071 | 5/16" | UNC | 7/8" | Zinc | 1/2 AF |
| SH505081 | 5/16" | UNC | 1" | Zinc | 1/2 AF |
| SH505091 | 5/16" | UNC | 1 1/8" | Zinc | 1/2 AF |
| SH505101 | 5/16" | UNC | 1 1/4" | Zinc | 1/2 AF |
| SH505121 | 5/16" | UNC | 1 1/2" | Zinc | 1/2 AF |
| SH505131 | 5/16" | UNC | 1 5/8" | Zinc | 1/2 AF |
| SH506061 | 3/8" | UNC | 3/4" | Zinc | 9/16 AF |
| SH506071 | 3/8" | UNC | 7/8" | Zinc | 9/16 AF |
| SH506081 | 3/8" | UNC | 1" | Zinc | 9/16 AF |
| SH506084 | 3/8" | UNC | 1" | Black | 9/16 AF |
| SH506091 | 3/8" | UNC | 1 1/8" | Zinc | 9/16 AF |
| SH506101 | 3/8" | UNC | 1 1/4" | Zinc | 9/16 AF |
| SH506281 | 3/8" | UNC | 2 1/2" | Zinc | 9/16 AF |
| Hex Head UNF Set Screws |  |
||||
| Part No | Nom. Thread Dia. | Thread Type | Overall Length | Remarks | Spanner Size |
| 53K124 | No 10 (0.190") | UNF | 3/8" | Zinc | 5/16 AF |
| 53K126 | No 10 (0.190") | UNF | 1/2" | Zinc | 5/16 AF |
| 53K132 | No 10 (0.190") | UNF | 1 1/4" | Zinc | 5/16 AF |
| SH604031 | 1/4" | UNF | 3/8" | Zinc | 7/16 AF |
| SH604041 | 1/4" | UNF | 1/2" | Zinc | 7/16 AF |
| SH604051 | 1/4" | UNF | 5/8" | Zinc | 7/16 AF |
| SH604061 | 1/4" | UNF | 3/4" | Zinc | 7/16 AF |
| SH604071 | 1/4" | UNF | 7/8" | Zinc | 7/16 AF |
| SH604081 | 1/4" | UNF | 1" | Zinc | 7/16 AF |
| SH604091 | 1/4" | UNF | 1 1/8" | Zinc | 7/16 AF |
| SH604101 | 1/4" | UNF | 1 1/4" | Zinc | 7/16 AF |
| SH604111 | 1/4" | UNF | 1 3/8" | Zinc | 7/16 AF |
| SH604121 | 1/4" | UNF | 1 1/2" | Zinc | 7/16 AF |
| SH604141 | 1/4" | UNF | 1 3/4" | Zinc | 7/16 AF |
| SH604161 | 1/4" | UNF | 2" | Zinc | 7/16 AF |
| SH605041 | 5/16" | UNF | 1/2" | Zinc | 1/2 AF |
| SH605051 | 5/16" | UNF | 5/8" | Zinc | 1/2 AF |
| SH605061 | 5/16" | UNF | 3/4" | Zinc | 1/2 AF |
| SH605071 | 5/16" | UNF | 7/8" | Zinc | 1/2 AF |
| SH605081 | 5/16" | UNF | 1" | Zinc | 1/2 AF |
| SH605091 | 5/16" | UNF | 1 1/8" | Zinc | 1/2 AF |
| SH605101 | 5/16" | UNF | 1 1/4" | Zinc | 1/2 AF |
| SH605121 | 5/16" | UNF | 1 1/2" | Zinc | 1/2 AF |
| SH605151 | 5/16" | UNF | 1 7/8" | Zinc | 1/2 AF |
| SH605161 | 5/16" | UNF | 2" | Zinc | 1/2 AF |
| SH605181 | 5/16" | UNF | 2 1/4" | Zinc | 1/2 AF |
| SH605201 | 5/16" | UNF | 2 1/2" | Zinc | 1/2 AF |
| HZS0606 | 3/8" | UNF | 3/4" | Zinc | 9/16 AF |
| SH606081 | 3/8" | UNF | 1" | Zinc | 9/16 AF |
| SH606111 | 3/8" | UNF | 1 3/8" | Zinc | 9/16 AF |
| SH606161 | 3/8" | UNF | 2" | Zinc | 9/16 AF |

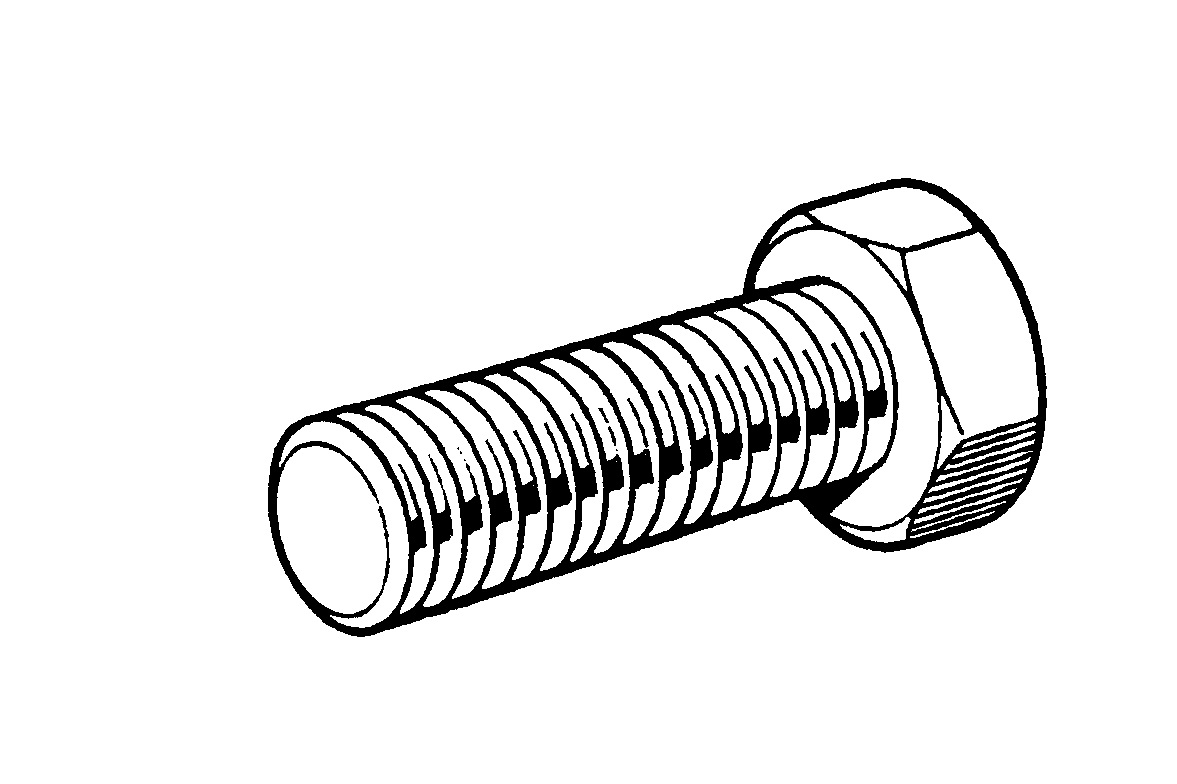

| Hex Head Metric Fine Set Screws | |
||||
| Part No | Nom. Thread Dia. | Thread Type | Overall Length | Remarks | Spanner Size |
| SH103101 | 3mm (M3) | Metric Fine | 10mm | Zinc | 5.5mm |
| SH105101 | 5mm (M5) | Metric Fine | 10mm | Zinc | 8mm |
| SH105201 | 5mm (M5) | Metric Fine | 20mm | Zinc | 8mm |
| SH106161 | 6mm (M6) | Metric Fine | 16mm | Zinc | 10mm |
| SH106165 | 6mm (M6) | Metric Fine | 16mm | Black | 10mm |
| SH108161 | 8mm (M8) | Metric Fine | 16mm | Zinc | 13mm |
| SH108181 | 8mm (M8) | Metric Fine | 18mm | Zinc | 13mm |
| SH110201M | 10mm (M10) | Metric Fine | 20mm | Zinc | 17mm |
| Flanged Head UNF Set Screws |  |
||||
| Part No | Nom. Thread Dia. | Thread Type | Overall Length | Remarks | Spanner Size |
| TAM1368 | 1/4" | UNF | 1/2" | Zinc | 7/16 AF |
| TAM1173 | 1/4" | UNF | 3/4" | Zinc | 7/16 AF |

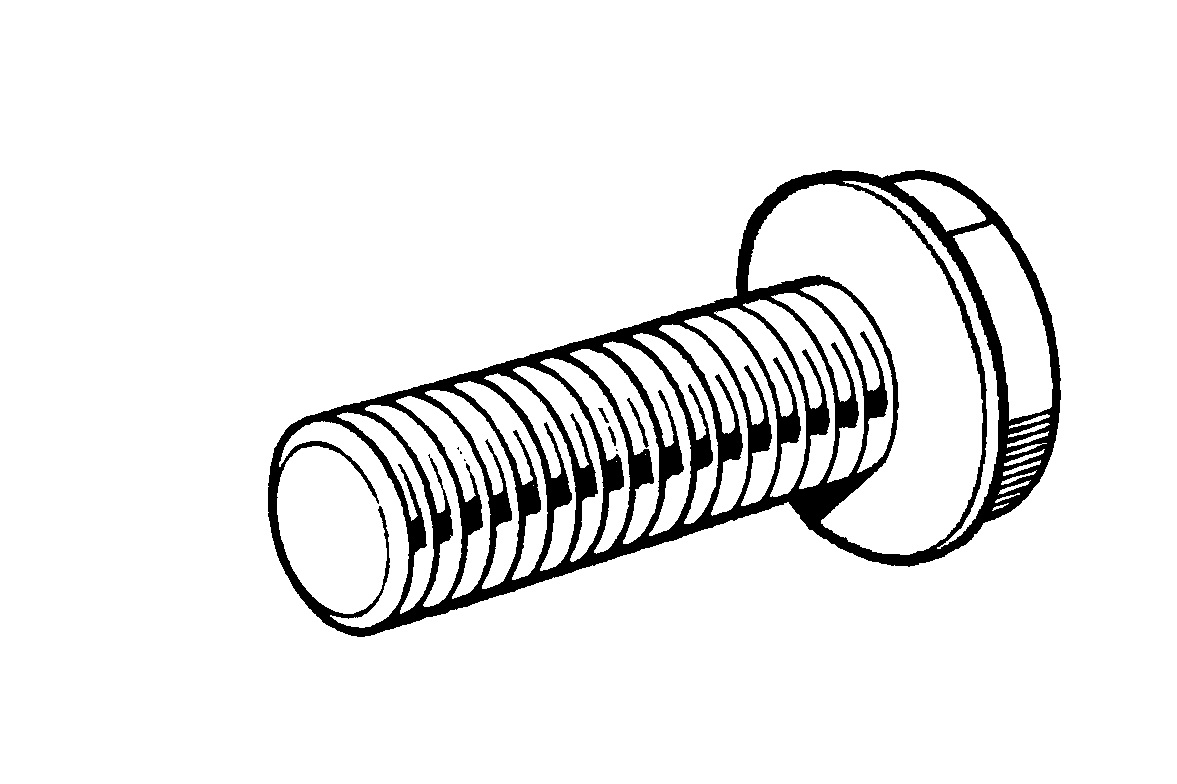

| Flanged Head Metric Fine Set Screws | |
||||
| Part No | Nom. Thread Dia. | Thread Type | Overall Length | Remarks | Spanner Size |
| FS105107 | 5mm (M5) | Metric Fine | 10mm | Zinc | 8mm |
| FS105121 | 5mm (M5) | Metric Fine | 12mm | Zinc | 8mm |
| FS106101 | 6mm (M6) | Metric Fine | 10mm | Zinc | 10mm |
| FS106121 | 6mm (M6) | Metric Fine | 12mm | Zinc | 10mm |
| FS106141 | 6mm (M6) | Metric Fine | 14mm | Zinc | 10mm |
| FS106167 | 6mm (M6) | Metric Fine | 16mm | Zinc | 10mm |
| FS106165 | 6mm (M6) | Metric Fine | 16mm | Black | 10mm |
| FS106257 | 6mm (M6) | Metric Fine | 25mm | Zinc | 10mm |
| FS108121 | 8mm (M8) | Metric Fine | 12mm | Zinc | 13mm |
| FS108165 | 8mm (M8) | Metric Fine | 16mm | Black | 13mm |
| FS108207 | 8mm (M8) | Metric Fine | 20mm | Zinc | 13mm |
| FS108251 | 8mm (M8) | Metric Fine | 25mm | Zinc | 13mm |
| FS108251M | 8mm (M8) | Metric Fine | 25mm | Patchlok | 13mm |
| FS110251 | 10mm (M10) | Metric Fine | 25mm | Zinc | 17mm |
