Fresh air and demister ducts 1959-69

Part No: WL700101
  In Stock
WASHER-SPRING 10/32''
Required Quantity: 8
£0.16 inc VAT
£0.13 ex VAT
Part No: FNZ103
  In Stock
£0.26 inc VAT
£0.22 ex VAT
Part No: WF702101
  No Longer Available
USE: LWZ403
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: 53K1016
  In Stock
SET SCREW-8 UNC x 3/8
Required Quantity: 1
£0.50 inc VAT
£0.42 ex VAT
Part No: RMP307
  In Stock
1963 on.
£0.98 inc VAT
£0.82 ex VAT
Part No: PMZ310
  In Stock
SCREW-PAN HEAD-10 UNF x 5/8''
Required Quantity: 8
£0.35 inc VAT
£0.29 ex VAT
Part No: 27H1193
  Available to Customer Order
£1.56 inc VAT
£1.30 ex VAT
Part No: 17H823
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 17H824
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 17H825
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 6K772
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 14A9979
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 14A9980
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 14A9983
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 24A2195
  In Stock
£4.74 inc VAT
£3.95 ex VAT
Part No: 14A9982
  In Stock
£5.58 inc VAT
£4.65 ex VAT
Part No: 14A9984
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 17H1607
  Available to Customer Order
£6.48 inc VAT
£5.40 ex VAT
Part No: 17H1609
  Available to Customer Order
£10.36 inc VAT
£8.63 ex VAT
Part No: 17H1608
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 27H2279
  Available to Customer Order
£4.20 inc VAT
£3.50 ex VAT
Part No: 24A1882
  No Longer Available
USE: CAM5969
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: 24A1975
  Available to Customer Order
£0.00 inc VAT
£0.00 ex VAT
Part No: 24A1409
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 24A1976
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 24A1410
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 24A1977
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: GHC2228
  No Longer Available
USE: CJ600564EVA
Required Quantity: 3
£0.00 inc VAT
£0.00 ex VAT
Part No: 24A1967
  In Stock
£32.40 inc VAT
£27.00 ex VAT
Part No: DMP2835
  In Stock
£0.14 inc VAT
£0.12 ex VAT
Part No: ALA6292
  In Stock

£2.34 inc VAT
£1.95 ex VAT
Part No: ALA6307
  No Longer Available
USE: JBB100550
Required Quantity: 2
£0.00 inc VAT
£0.00 ex VAT
Part No: JBB100550
  In Stock
£4.51 inc VAT
£3.76 ex VAT
Part No: ALA6306
  No Longer Available
USE: EAM7097
Required Quantity: 2
£0.00 inc VAT
£0.00 ex VAT
Part No: EAM7097
  Currently Unavailable
£28.80 inc VAT
£24.00 ex VAT
Part No: GHC1622
  No Longer Available
USE: CJ600564EVA
Required Quantity: 4
£0.00 inc VAT
£0.00 ex VAT
Part No: ALA6299
  No Longer Available
USE: JCG10001SS
Required Quantity: 2
£0.00 inc VAT
£0.00 ex VAT
Part No: JCG10001
  No Longer Available
USE: JCG10001SS
Required Quantity: 2
£0.00 inc VAT
£0.00 ex VAT
Part No: 24A2062
  No Longer Available
USE: 24A2060KIT
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: 24A2060
  No Longer Available
USE: 24A2060KIT
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: 24A1332
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 24A2180
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 24A2181
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: CZH624
  No Longer Available
USE: JKC10025
Required Quantity: 2
£0.00 inc VAT
£0.00 ex VAT
Part No: 14A9949
  In Stock
£6.30 inc VAT
£5.25 ex VAT
Part No: PMP306
  In Stock
£0.88 inc VAT
£0.73 ex VAT
Part No: PTP1004
  In Stock
£0.82 inc VAT
£0.68 ex VAT
Part No: 27H1979
  Available to Customer Order
£20.92 inc VAT
£17.43 ex VAT
Part No: 24A2751
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 24A1289
  No Longer Available
USE: 24A1289/90
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: 24A1290
  No Longer Available
USE: 24A1289/90
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: 24A1453
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 24A1454
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: PTZ602
  No Longer Available
USE: AB606021
Required Quantity: 4
£0.00 inc VAT
£0.00 ex VAT
Part No: 14A9986
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 24A1256
  Awaiting Stock - On Order
Reproduction part. Coiled wire wrapped in neoprene rubber.
£69.60 inc VAT
£58.00 ex VAT
Part No: 24A1331
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 24A2061
  No Longer Available
USE: 24A2060KIT
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: 24G1482
  In Stock
£1.62 inc VAT
£1.35 ex VAT
Part No: 27H1967
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 53K126
  In Stock
£0.47 inc VAT
£0.39 ex VAT
Part No: HCS144
  In Stock
£1.14 inc VAT
£0.95 ex VAT
Part No: HCS156
  In Stock
£2.38 inc VAT
£1.98 ex VAT
Part No: HCS168
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: PTZ804
  In Stock
£0.25 inc VAT
£0.21 ex VAT
Part No: CJ600564EVA
  In Stock
£1.14 inc VAT
£0.95 ex VAT

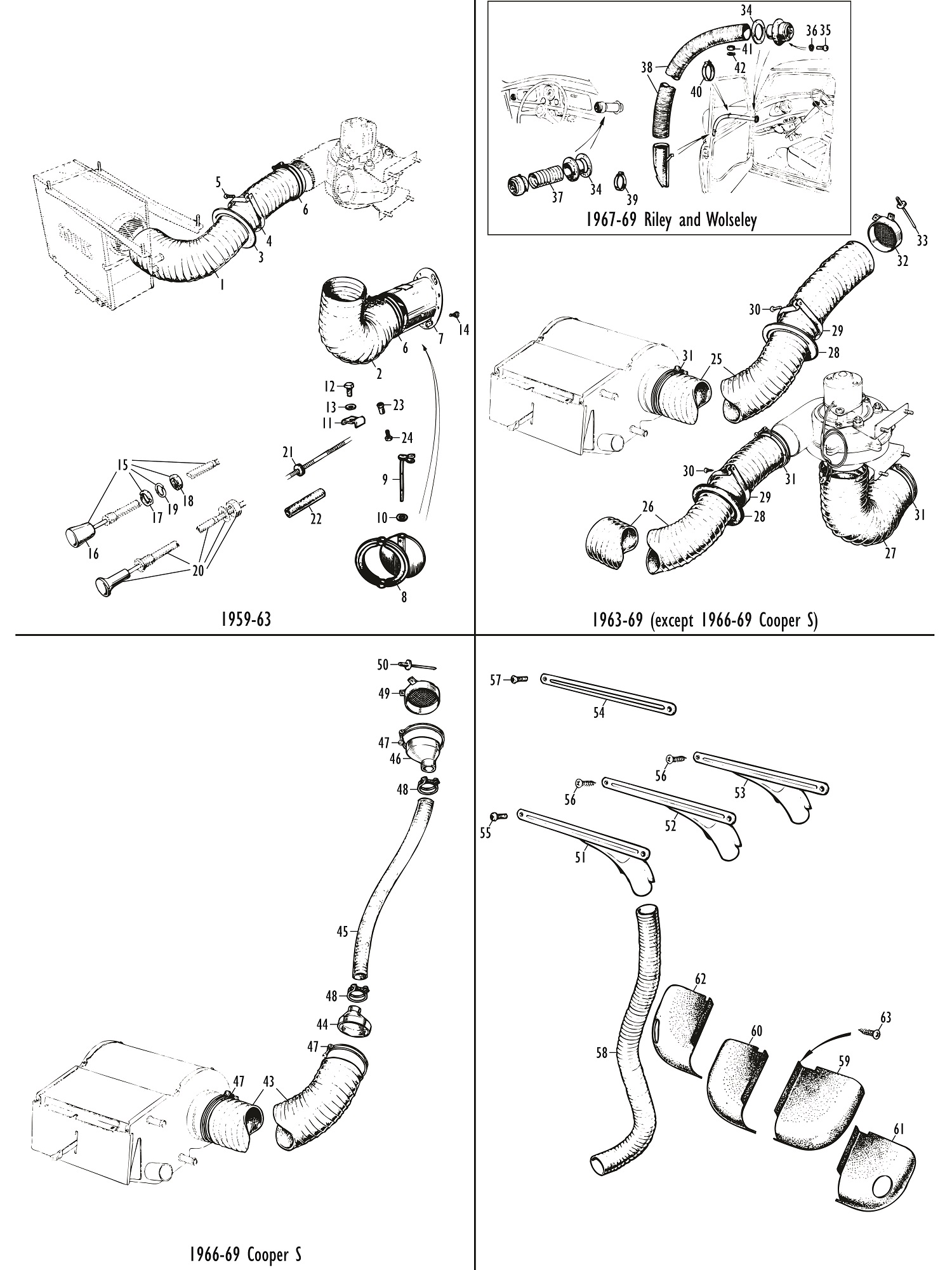

Fresh Air Ducts
1959-63 Square Fresh Air Heater
Ill. No. Part No. Description Qty. Rqd. Remarks
1 14A9979 HOSE, fresh air, heater to fan, wire reinforced type 1 RHD; 36" long.
  14A9980 HOSE, fresh air, heater to fan, wire reinforced type 1 LHD; 29" long.
2 14A9983 HOSE, fresh air, fan to intake tube, wire reinforced type 1 12" long.
3 24A2195 GROMMET, hose through dash 1
4 14A9982 CLIP, fresh air hose to body 1
5 PTZ804 SCREW, self tapping, clip to body 1
6 HCS168 CLIP, Supergrip, fresh air hose A/R
7 14A9984 TUBE ASS'Y, fresh air intake 1
8 17H1607 SEAL, air valve 1
9 17H1609 ARM AND SPINDLE, air valve 1
10 17H1608 WASHER, bearing 2
11 27H1193 CLAMP, control cable to intake tube 1
12 53K126 SCREW, clamp to intake tube 1
13 WF702101 WASHER, shakeproof 1
14 PTZ804 SCREW, self tapping, intake tube to body 2
15 27H1967 CABLE ASS'Y, fresh air control 1 1959-61.
16 27H2279 KNOB, control cable 1 1959-61.
17 17H823 NUT, locking, round 1 1959-61.
18 17H824 NUT, locking, hexagonal 1 1959-61.
19 17H825 WASHER, locking 1 1959-61.
20 14A9986 CABLE ASS'Y, fresh air control 1 1961-63.
21 24A1882 GROMMET, cable through dash 1
22 6K772 SLEEVE, rubber, cable 1
23 24G1482 TRUNNION, cable to air valve 1
24 53K1016 SCREW, cable clamping 1

1963-69 Fresh Air Heaters and Fresh Air Ventilators
Except 1966-69 Cooper S
From 1963 a new design of fresh air heater was specified with a 2.8kW fan inside it in standard form.  Also available as an option, or standard fitment for
colder climates, was a similar heater with a 4kW blower unit mounted in the engine bay rather than within the heater casing.  However, the 4kW unit was
never specified on the Cooper S, because of lack of space in the engine bay caused by brake servo fitment.
Fresh air hoses changed from the soft-feel wire reinforced type to more rigid moulded PVC in early 1967, not long before the end of Mini Mk I production.

Ill. No. Part No. Description Qty. Rqd. Remarks
25 24A1256 HOSE, fresh air, heater to intake tube, wire reinforced 1 1963-67. Units with 2.8kW internal fan; 45" long.
  24A1975 HOSE, fresh air, heater to intake tube, moulded PVC 1 1967-69. Units with 2.8kW internal fan; 45" long.
26 24A1409 HOSE, fresh air, heater to fan, wire reinforced 1 1963-67. Units with 4kW external fan; 32" long.
  24A1976 HOSE, fresh air, heater to fan moulded PVC 1 1967-69. Units with 4kW external fan; 32" long.
27 24A1410 HOSE, fresh air, fan to intake tube, wire reinforced 1 1963-67. Units with 4kW external fan; 13" long.
  24A1977 HOSE, fresh air, fan to intake tube, moulded PVC 1 1967-69. Units with 4kW external fan; 13" long.
28 24A2195 GROMMET, hose through dash 1
29 14A9982 CLIP, fresh air hose to body 1
30 PTZ804 SCREW, self tapping, clip to body 1
31 HCS156 CLIP, Supergrip, fresh air hose 2/4
  GHC2228 CLIP, Jubilee, fresh air hose 2/4 Alternative.
32 24A1967 TUBE, fresh air intake, plastic 1 1966-69.
Before 1966 the fresh air intake tube on the front panel was metal, rather than plastic.  The metal tube was never (and still isn't) offered as a service part.

Ill. No. Part No. Description Qty. Rqd. Remarks
33 DMP2835 RIVET, tube to front panel 2

The face-level air vents fitted to 1967-69 Riley and Wolseley models have not been available for many years; however other associated items for the face-level ventilation system found on these models may be purchased:
Ill. No. Part No. Description Qty. Rqd. Remarks
34 ALA6292 SEAL, vent housing 2 1967-69 Riley Elf and Wolseley Hornet.
35 PMZ310 SCREW, housing to fascia 8 1967-69 Riley Elf and Wolseley Hornet.
36 WL700101 WASHER, locking 8 1967-69 Riley Elf and Wolseley Hornet.
37 ALA6307 HOSE, vent to housing, original  2 1967-69 Riley Elf.
  JBB100550 HOSE, vent to housing, replacement 2 1967-69 Riley Elf.
38 ALA6306 HOSE, housing to intake, original 2 1967-69 Riley Elf and Wolseley Hornet.
  EAM7097 HOSE, housing to intake, replacement 2 1967-69 Riley Elf and Wolseley Hornet.
39 GHC1622 CLIP, jubilee, fresh air hose 4 1967-69 Riley Elf and Wolseley Hornet.
40 ALA6299 CLIP, hose to body 2 1967-69 Riley Elf and Wolseley Hornet.
  JCG10001 CLIP, hose to body (later alternative) 2 1967-69 Riley Elf and Wolseley Hornet.
41 FNZ103 NUT, clip to body 2 1967-69 Riley Elf and Wolseley Hornet.
42 WL700101 WASHER, locking 2 1967-69 Riley Elf and Wolseley Hornet.

1966-69 Fresh Air Heaters and Fresh Air Ventilators
Cooper S
Between 1966 and 1969 the Cooper S received revised fresh air ducting.  This featured a reduced diameter hose in the engine bay, giving increased clearance
between it and the brake servo.  Actually for 'reduced' you can read 'restricted', for the revised ducting certainly did not exactly improve the Mini's mediocre
heating and ventilating performance!  If you are careful with installation, there is sufficient space for standard diameter ducting if that's what you would
rather fit.

Ill. No. Part No. Description Qty. Rqd. Remarks
43 14A9980 HOSE, fresh air, heater to dash 1 29" long.
The above hose is the original wire-reinforced type (it never changed over to PVC in 1967 in line with other Mini models); it may however be replaced by the later 1970s style PVC hose if required; please contact us for details.

Ill. No. Part No. Description Qty. Rqd. Remarks
44 24A2061 REDUCING ADAPTOR, fresh air hose, dash 1
45 24A2062 HOSE, fresh air, dash to intake tube 1
46 24A2060 REDUCING ADAPTOR, fresh air hose, intake tube 1
47 HCS156 CLIP, Supergrip, fresh air hose 3
  GHC2228 CLIP, Jubilee, fresh air hose 3 Alternative.
48 HCS144 CLIP, Supergrip, fresh air hose 2
  GHC1622 CLIP, Jubilee, fresh air hose 2 Alternative.
49 24A1967 TUBE, fresh air intake 1
50 DMP2835 RIVET, tube to front panel 2

Demister Ducts and Hoses
Ill. No. Part No. Description Qty. Rqd. Remarks
51 24A1331 DUCT, demister, RH  1 1959-69; to fix use machine screws.
  24A1332 DUCT, demister, LH  1 1959-69; to fix use machine screws.
52 24A2180 DUCT, demister, RH  1 1963-69; to fix use self tapping screws.
  24A2181 DUCT, demister, LH  1 1963-69; to fix use self tapping screws.
The above RH and LH demister ducts may be replaced by the later 1970s onwards unhanded duct if required:
Ill. No. Part No. Description Qty. Rqd. Remarks
53 CZH624 DUCT, demister, not handed  2 Later alternative; to fix use self tapping screws.
54 14A9949 BEZEL, demister duct 2 For vinyl covered upper fascias.
55 PMP306 SCREW, machine, duct to body 4 1959-69; for untrimmed upper fascias.
56 PTP1004 SCREW, self tapping, duct to body 4 1963-69; for untrimmed upper fascias.
57 RMP307 SCREW, machine, duct and bezel to body 4 1961-69; for vinyl covered upper fascias.
58 27H1979 HOSE, demister, 36" length 2 1959-67; cut to fit heater type fitted.

The PVC demister hose 24A2751 may be used in place of the original type for all 1959-67 heaters and fresh air ventilators except for the 1959-63 RHD square bodied fresh air heater, for which it would be too short:
Ill. No. Part No. Description Qty. Rqd. Remarks
  24A2751 HOSE, demister, 30" length 2 1967-69; PVC type.  Cut to fit heater type fitted.

The 1963-69 metal-bodied fresh air heaters and fresh air ventilators were fitted with covers for the demister hoses.  These were not used on the plastic-bodied fresh air heaters and ventilators of 1968-69.
Ill. No. Part No. Description Qty. Rqd. Remarks
59 24A1289 COVER, demister hose, RH 1 1963-69 metal-bodied fresh air heaters and ventilators.
60 24A1290 COVER, demister hose, LH 1 1963-69 metal-bodied fresh air heaters and ventilators.
61 24A1453 COVER, demister hose, RH 1 RHD, required if steering lock is fitted.
62 24A1454 COVER, demister hose, LH 1 LHD, required if steering lock is fitted.
63 PTZ602 SCREW, self tapping, cover to heater/ventilator 4
View as:
Show items
Items 1 to 12 of 66 total
1 2 3 4 5 6
Part No: CJ600564EVA
  In Stock
£1.14 inc VAT
£0.95 ex VAT
Part No: PTZ804
  In Stock
£0.25 inc VAT
£0.21 ex VAT
Part No: HCS168
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: HCS156
  In Stock
£2.38 inc VAT
£1.98 ex VAT
Part No: HCS144
  In Stock
£1.14 inc VAT
£0.95 ex VAT
Part No: 53K126
  In Stock
£0.47 inc VAT
£0.39 ex VAT
Part No: 27H1967
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 24G1482
  In Stock
£1.62 inc VAT
£1.35 ex VAT
Part No: 24A2061
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 24A1331
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 24A1256
  Awaiting Stock - On Order
Reproduction part. Coiled wire wrapped in neoprene rubber.
£69.60 inc VAT
£58.00 ex VAT
Part No: 14A9986
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Add to cart
Items 1 to 12 of 66 total
1 2 3 4 5 6
Request a free catalogue
