Fresh air and demister ducts 1969 on

Part No: PWZ103
  In Stock
£0.20 inc VAT
£0.17 ex VAT
Part No: WL700101
  In Stock
WASHER-SPRING 10/32''
Required Quantity: 8
£0.16 inc VAT
£0.13 ex VAT
Part No: PTZ1004
  In Stock
Van with wooden load floor.
£0.31 inc VAT
£0.26 ex VAT
Part No: ANZ103
  In Stock
NUT-10 UNF x 3/8'' DIA. HEAD
Required Quantity: 4
1982-83; fit to black 10 slat radiator grille.
£0.16 inc VAT
£0.13 ex VAT
Part No: LWZ503
  No Longer Available
USE: WE702101
Required Quantity: 4
All models except pre-1968 Standard, Deluxe, Van and Pick Up.
£0.00 inc VAT
£0.00 ex VAT
Part No: RMP307
  In Stock
1963 on.
£0.98 inc VAT
£0.82 ex VAT
Part No: PMZ310
  In Stock
SCREW-PAN HEAD-10 UNF x 5/8''
Required Quantity: 8
£0.35 inc VAT
£0.29 ex VAT
Part No: 24A2195
  In Stock
3 points earn (£0.03)
£4.74 inc VAT
£3.95 ex VAT
Part No: 14A9982
  In Stock
4 points earn (£0.04)
£5.58 inc VAT
£4.65 ex VAT
Part No: 24A1975
  Available to Customer Order
£0.00 inc VAT
£0.00 ex VAT
Part No: 24A1976
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 24A1977
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: GHC2228
  No Longer Available
USE: CJ600564EVA
Required Quantity: As Required
£0.00 inc VAT
£0.00 ex VAT
Part No: 24A1967
  In Stock
35 points earn (£0.35)
£42.00 inc VAT
£35.00 ex VAT
Part No: DMP2835
  In Stock
£0.14 inc VAT
£0.12 ex VAT
Part No: ALA6292
  In Stock

1 points earn (£0.01)
£2.34 inc VAT
£1.95 ex VAT
Part No: JBB100550
  In Stock
3 points earn (£0.03)
£4.51 inc VAT
£3.76 ex VAT
Part No: EAM7097
  Currently Unavailable
24 points earn (£0.24)
£28.80 inc VAT
£24.00 ex VAT
Part No: GHC1622
  No Longer Available
USE: CJ600564EVA
Required Quantity: 2
£0.00 inc VAT
£0.00 ex VAT
Part No: ALA6299
  No Longer Available
USE: JCG10001SS
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: JCG10001
  No Longer Available
USE: JCG10001SS
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: 24A1332
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: CZH624
  No Longer Available
USE: JKC10025
Required Quantity: 2
£0.00 inc VAT
£0.00 ex VAT
Part No: 14A9949
  In Stock
5 points earn (£0.05)
£6.30 inc VAT
£5.25 ex VAT
Part No: PTP1004
  In Stock
£0.82 inc VAT
£0.68 ex VAT
Part No: 24A2751
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 24A1289
  No Longer Available
USE: 24A1289/90
Required Quantity: 1
£0.00 ex VAT
Part No: 24A1290
  No Longer Available
USE: 24A1289/90
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: PTZ602
  No Longer Available
USE: AB606021
Required Quantity: 4
£0.00 inc VAT
£0.00 ex VAT
Part No: CZH1300
  No Longer Available
USE: JKA10012
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: CZH674
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: JKA10012
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: JPC6876
  In Stock
6 points earn (£0.06)
£8.34 inc VAT
£6.95 ex VAT
Part No: CZH682
  Available to Customer Order
5 points earn (£0.05)
£6.84 inc VAT
£5.70 ex VAT
Part No: EAM7437
  In Stock
19 points earn (£0.19)
£22.80 inc VAT
£19.00 ex VAT
Part No: CZH632
  In Stock

8 points earn (£0.08)
£10.68 inc VAT
£8.90 ex VAT
Part No: CZH1304
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: CZH697
  No Longer Available
USE: CZH697SS
Required Quantity: 2
£0.00 inc VAT
£0.00 ex VAT
Part No: CZH1755
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: JKQ10002
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: CZH1951
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: JPC6877
  No Longer Available
USE: ALA6292
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: 346999A
  In Stock
11 points earn (£0.11)
£13.24 inc VAT
£11.03 ex VAT
Part No: GHC2632
  No Longer Available
USE: CJ600744EVA
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: CJ600744EVA
  In Stock
£0.56 inc VAT
£0.47 ex VAT
Part No: ADU1049
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: CZH4207
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: CZH4180
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: CZH700
  Currently Unavailable
4 points earn (£0.04)
£5.70 inc VAT
£4.75 ex VAT
Part No: CZH693
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: CZH1318
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: JKA10011
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: AB608031
  In Stock
£0.19 inc VAT
£0.16 ex VAT
Part No: CZH711
  Available to Customer Order
2 points earn (£0.02)
£2.88 inc VAT
£2.40 ex VAT
Part No: EAM8472
  In Stock
13 points earn (£0.13)
£16.24 inc VAT
£13.53 ex VAT
Part No: 37H7035
  No Longer Available
USE: JBB101000
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: 37H7036
  No Longer Available
USE: JBB101010
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: CZH3835
  No Longer Available
USE: JPC8632 AND JBB101000
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: CZH3836
  No Longer Available
USE: JPC8632 AND JBB101010
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: JPC8632
  In Stock
23 points earn (£0.23)
£28.20 inc VAT
£23.50 ex VAT
Part No: JBD100410PMA
  No Longer Available
USE: JPC8632 AND CUT DOWN
Required Quantity: 2
£0.00 inc VAT
£0.00 ex VAT
Part No: JBD100750PMA
  No Longer Available
USE: JPC8632 AND CUT DOWN
Required Quantity: 2
£0.00 inc VAT
£0.00 ex VAT
Part No: JPC8633
  No Longer Available
USE: JBB101000
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: JPC8634
  No Longer Available
USE: JBB101010
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: JBB101000
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: JBB101010
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: CZH659
  In Stock
20 points earn (£0.20)
£24.90 inc VAT
£20.75 ex VAT
Part No: AAM1017
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: CZH4183
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: JKC10024
  Available to Customer Order
15 points earn (£0.15)
£18.46 inc VAT
£15.38 ex VAT
Part No: JKC000010
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: JBB100620
  In Stock
13 points earn (£0.13)
£16.20 inc VAT
£13.50 ex VAT
Part No: 24A1331
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 37H7034
  No Longer Available
USE: JPC8632
Required Quantity: 2
£0.00 inc VAT
£0.00 ex VAT
Part No: ADU1050
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: ADU9177
  In Stock
1 points earn (£0.01)
£1.60 inc VAT
£1.33 ex VAT
Part No: CZH1753
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: CZH658
  Awaiting Stock - On Order
20 points earn (£0.20)
£24.90 inc VAT
£20.75 ex VAT
Part No: CZH691
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: CZH704
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: HCS156
  In Stock
1 points earn (£0.01)
£2.38 inc VAT
£1.98 ex VAT
Part No: JKC10025
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: JZL100050
  Available to Customer Order
4 points earn (£0.04)
£5.34 inc VAT
£4.45 ex VAT
Part No: PTZ804
  In Stock
£0.25 inc VAT
£0.21 ex VAT
Part No: JCG10001SS
  In Stock

4 points earn (£0.04)
£5.99 inc VAT
£4.99 ex VAT

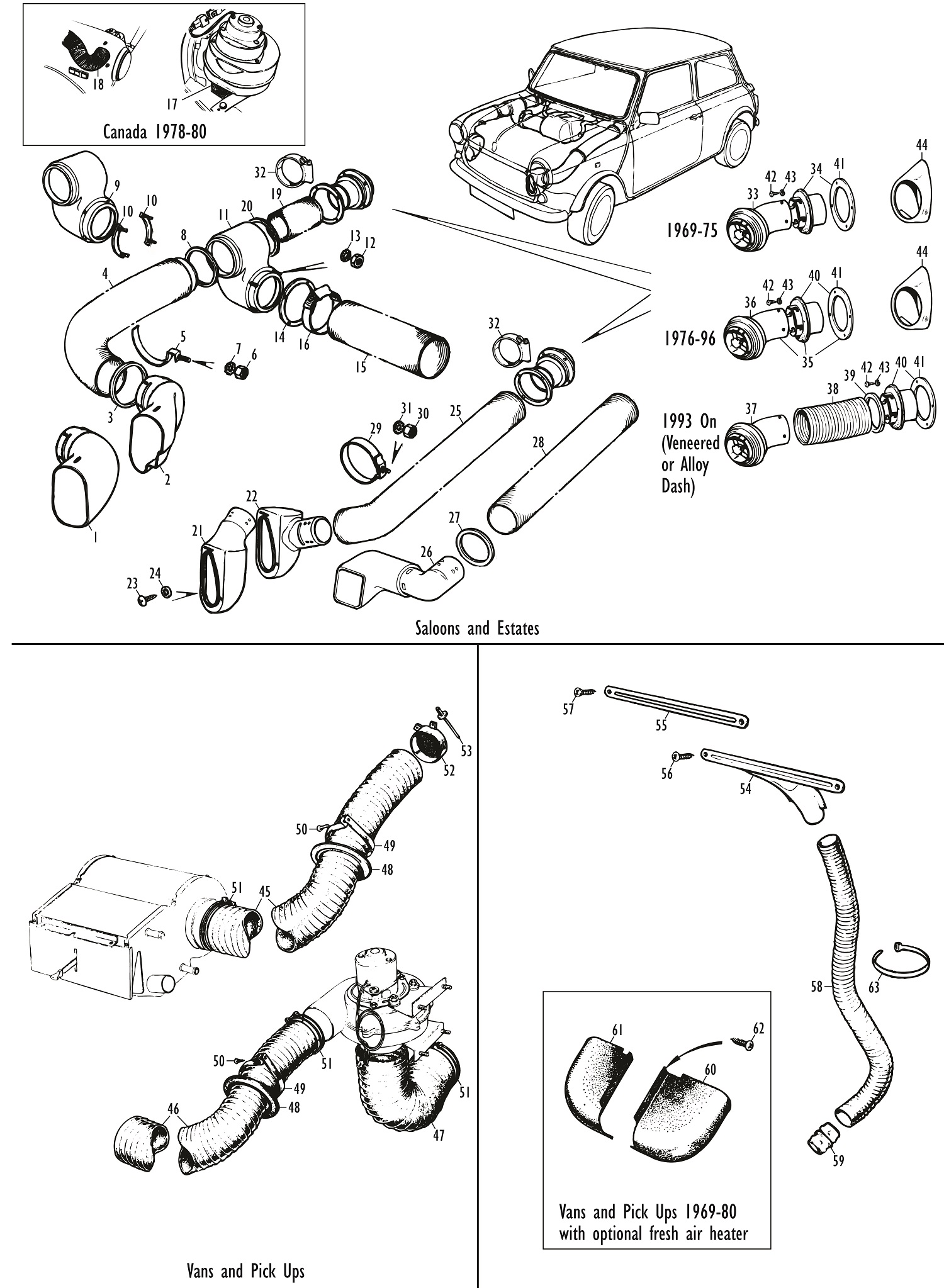

Fresh Air Ducts
Heater or Ventilator Fresh Air Intake
1969 On Saloons and Estates
Ill. No. Part No. Description Qty. Rqd. Remarks
1 CZH1300 NOZZLE, air intake, RH 1 1969-91, not Clubman or 1275 GT.
  CZH674 NOZZLE, air intake, RH 1 1969-82, Clubman and 1275 GT.
2 JKA10012 NOZZLE, air intake, RH 1 1991 on.
3 JPC6876 SEAL, nozzle to inner wing 1 Not Clubman or 1275 GT.
  CZH682 SEAL, nozzle to inner wing 1 Clubman and 1275 GT.
4 EAM7437 HOSE, air intake to distribution box 1
5 CZH632 SUPPORT, hose to inner wing 1
6 ANZ103 NUT, support to inner wing 1
7 LWZ503 WASHER, shakeproof 1
8 JPC6876 SEAL, air intake hose to distribution box 1
9 CZH691 BOX, distribution 1 1969-73, models with face level air vents.
  CZH1304 BOX, distribution 1 1969-73, models without face level air vents.
10 CZH697 STUD PLATE, box to inner wing 2 1969-73.
11 CZH1755 BOX, distribution 1 1973-92, models with face level air vents.
  JKQ10002 BOX, distribution 1 1992 on, models with face level air vents.
  CZH1951 BOX, distribution 1 1973 on, models without face level air vents.
The 1973 on distribution boxes include studs and may be used in place of the pre-1973 items and their stud plates.

Ill. No. Part No. Description Qty. Rqd. Remarks
12 ANZ103 NUT, distribution box to inner wing 4
13 LWZ503 WASHER, shakeproof 4
14 JPC6877 SEAL, box to inner wing 1
15 346999A HOSE, inner wing to heater 1
16 GHC2632 CLIP, Jubilee, hose to inner wing 1
  CJ600744EVA CLIP, Jubilee, hose to inner wing 1 Mid-1990s onwards alternative.

On cars destined for Canada from 1978-80, the heater fan was positioned remote to the heater, behind the radiator grille.  The usual air intake nozzle and hose to the distribution box were therefore replaced by the following items:
Ill. No. Part No. Description Qty. Rqd. Remarks
  ADU1049 ADAPTOR, radiator grille air intake 1 1978-80, Canada.
17 CZH4207 HOSE, air intake adaptor to fan  1 1978-80, Canada.
18 346999A HOSE, fan to under wing adaptor 1 1978-80, Canada.
  ADU1050 ADAPTOR, under wing 1 1978-80, Canada.
  ANZ103 NUT, adaptor to body 2 1978-80, Canada.
  LWZ503 WASHER, shakeproof 2 1978-80, Canada.
  CZH4180 HOSE, under wing adaptor to distribution box 1 1978-80, Canada.

Face Level Air Vents
1969 On Saloons and Estates (if fitted)
Ill. No. Part No. Description Qty. Rqd. Remarks
19 CZH700 HOSE, distribution box to RH vent housing 1
20 CZH693 SEAL, hose to distribution box 1 Original 1969-73 distribution box only.
21 CZH1318 NOZZLE, air intake, LH 1 Carburetter models; not Clubman or 1275 GT.
22 JKA10011 NOZZLE, air intake, LH 1 Fuel injection models.
23 AB608031 SCREW, self tapping, nozzle to front panel 3 Not Clubman or 1275 GT.
24 PWZ103 WASHER, plain 3 Not Clubman or 1275 GT.
25 EAM7097 HOSE, nozzle to LH vent housing 1 Not Clubman or 1275 GT.
26 CZH704 NOZZLE, air intake, LH 1 Clubman and 1275 GT.
27 CZH711 SEAL, nozzle 1 Clubman and 1275 GT.
28 EAM8472 HOSE, nozzle to LH vent housing 1 Clubman and 1275 GT.
29 ALA6299 CLIP, LH hose to body 1 Original type.
  JCG10001 CLIP, LH hose to body 1 Later alternative.
  JCG10001SS CLIP, LH hose to body 1 Stainless steel alternative.
30 ANZ103 NUT, clip to inner wing 1
31 WL700101 WASHER, locking 1
32 GHC1622 CLIP, hose to vent housing 2 If fitted.
33 37H7034 VENT, face level, chrome 2 1969-75.
34 37H7035 HOUSING, rear, face level vent, RH 1 1969-75.
  37H7036 HOUSING, rear, face level vent, LH 1 1969-75.
35 CZH3835 VENT AND HOUSING, face level, black, RH 1 1976-96.
  CZH3836 VENT AND HOUSING, face level, black, LH 1 1976-96.
36 JPC8632 VENT, face level, black 2 1976-96; not veneered or alloy dashboards.
37 JBD100410PMA VENT, face level, black 2 1993-96; for veneered or alloy dashboards.
  JBD100750PMA VENT, face level, black 2 1997 on; for veneered or alloy dashboards.
38 JBB100550 DUCT, housing to face level vent 2 1993 on; for veneered or alloy dashboards.
39 JZL100050 FOAM STRIP, self adhesive, duct securing A/R 1993 on; for veneered or alloy dashboards.
40 JPC8633 HOUSING, rear, face level vent, RH 1 1976-97.
  JPC8634 HOUSING, rear, face level vent, LH 1 1976-97.
  JBB101000 HOUSING, rear, face level vent, RH 1 1998 on.
  JBB101010 HOUSING, rear, face level vent, LH 1 1998 on.
41 ALA6292 SEAL, vent housing 2 Included with vent housings.
42 PMZ310 SCREW, housing to body 8
43 WL700101 WASHER, locking 8
44 CZH658 BINNACLE, face level vent, RH 1 Not veneered or alloy dashboards.
  CZH659 BINNACLE, face level vent, LH 1 Not veneered or alloy dashboards.

Heater or Ventilator Fresh Air Intake
1969-80 Van and Pick Up with Optional Fresh Air Heater or Optional Fresh Air Ventilator
1980-84 Van and Pick Up with Standard Fresh Air Heater or Optional Fresh Air Ventilator
Ill. No. Part No. Description Qty. Rqd. Remarks
45 24A1975 HOSE, fresh air, heater to intake tube 1 Units with 2.8kW internal fan; 45" long.
46 24A1976 HOSE, fresh air, heater to fan 1 Units with 4kW external fan; 32" long.
47 24A1977 HOSE, fresh air, fan to intake tube 1 Units with 4kW external fan; 13" long.
48 24A2195 GROMMET, hose through dash 1
49 14A9982 CLIP, fresh air hose to body 1
50 PTZ804 SCREW, self tapping, clip to body 1
51 HCS156 CLIP, Supergrip, fresh air hose A/R
  GHC2228 CLIP, Jubilee, fresh air hose A/R Alternative.
52 24A1967 TUBE, fresh air intake 1
53 DMP2835 RIVET, tube to front panel 2

Demister Ducts and Hoses
Ill. No. Part No. Description Qty. Rqd. Remarks
54 CZH624 DUCT, demister  2 1969-92; not Cooper S or 1978-80 Canada.  Accepts 1 1/4" dia. hose.
  24A1331 DUCT, demister, RH 1 1969-71, Cooper S.
  24A1332 DUCT, demister, LH 1 1969-71, Cooper S.
  JKC10025 DUCT, demister 2 1992 on.  Accepts 1 3/4" dia. hose.
  AAM1017 DUCT, demister 2 1978-80, Canada.
55 14A9949 BEZEL, demister duct 2 1969-71, Cooper S.
56 PTP1004 SCREW, duct to body, chrome finish 4 For untrimmed upper fascias.
  PTZ1004 SCREW, duct to body, zinc finish 4 For padded upper fascias.
57 RMP307 SCREW, duct and bezel to body, chrome finish 4 1969-71, Cooper S.

Most post-1969 Minis used 20" long demister hoses rather than the earlier 30" lengths, because the front parcel shelf panel had very large holes cut in
it allowing a more direct route for the hoses.  However some Saloons at the start of the 1970s and Vans and Pick Ups
up until an unspecified point in the late 1970s retained the 1960s style parcel shelf panel with small holes for the demister hoses to pass through; only 30"
long hoses can be fitted to these models.  Please check which length of hoses you require before ordering from Somerford Mini.
Ill. No. Part No. Description Qty. Rqd. Remarks
58 24A2751 HOSE, demister, 1 1/4" dia., PVC, 30" length 2 Some early 1970s Saloons, plus Vans and Pick Ups 1969-80 approx.
  CZH1753 HOSE, demister, 1 1/4" dia., PVC, 20" length 2 1969-92; not some early 1970s Saloons or Vans and Pick Ups 1969-80 approx. Not Canada 1978-80.
  CZH4183 HOSE, demister, PVC, 20" length 2 1978-80, Canada.
  JKC10024 HOSE, demister, 1 3/4" dia., PVC, 20" length 2 1992-99.
  JKC000010 HOSE, demister, 1 3/4" dia., PVC, 20" length 2 1999-2000.
59 JBB100620 DUCT, demister hose to heater 2 1999-2000.

The Van and Pick Up optional fresh air heaters and ventilators offered between 1969 and 1980 approximately were fitted with covers for the demister hoses.
These were not fitted on the Saloon/Estate type heaters which were specified for Vans and Pick Ups from 1980 on.
Ill. No. Part No. Description Qty. Rqd. Remarks
60 24A1289 COVER, demister hose, RH 1 1969-80, Van and Pick Up with optional fresh air units.
61 24A1290 COVER, demister hose, LH 1 1969-80, Van and Pick Up with optional fresh air units.
62 PTZ602 SCREW, self tapping, cover to heater/ventilator 4 1969-80, Van and Pick Up with optional fresh air units.
63 ADU9177 TIE WRAP, demister hose to heater hose 1 1997 on.
View as:
Show items
Items 1 to 12 of 85 total
1 2 3 4 5 6 ...
Part No: JCG10001SS
  In Stock

4 points earn (£0.04)
£5.99 inc VAT
£4.99 ex VAT
Part No: PTZ804
  In Stock
£0.25 inc VAT
£0.21 ex VAT
Part No: JZL100050
  Available to Customer Order
4 points earn (£0.04)
£5.34 inc VAT
£4.45 ex VAT
Part No: JKC10025
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: HCS156
  In Stock
1 points earn (£0.01)
£2.38 inc VAT
£1.98 ex VAT
Part No: CZH704
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: CZH691
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: CZH658
  Awaiting Stock - On Order
20 points earn (£0.20)
£24.90 inc VAT
£20.75 ex VAT
Part No: CZH1753
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: ADU9177
  In Stock
1 points earn (£0.01)
£1.60 inc VAT
£1.33 ex VAT
Part No: ADU1050
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 37H7034
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Add to cart
Items 1 to 12 of 85 total
1 2 3 4 5 6 ...
Request a free catalogue
