Lokut Nuts

Return back to contents

The nylon Lokut nut clips in a hole in the bodywork. Driving a self tapping screw into the nut secures the screw and also, by expanding the clips on the back of the nut, secures the nut in its hole. A Lokut nut can be reused, but repeated thread cutting in it will eventually wear it out.

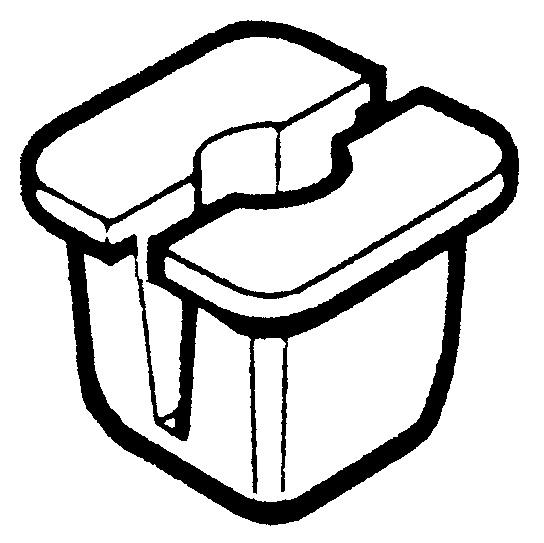

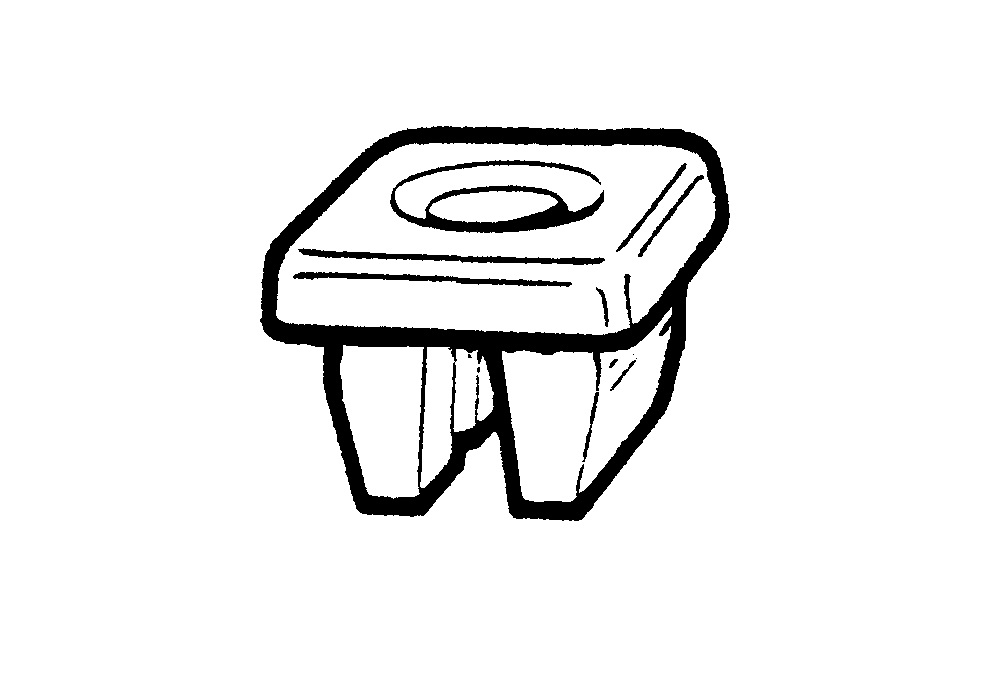

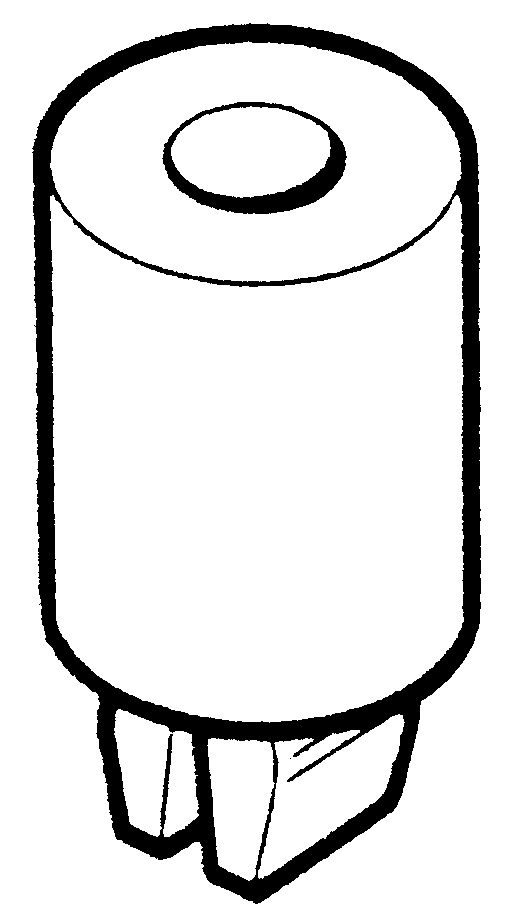

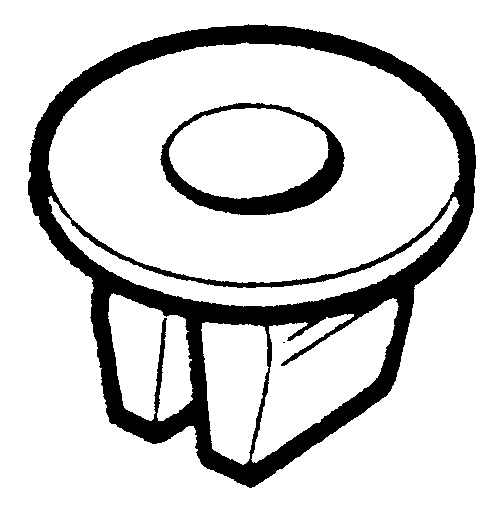

Square and Round Lokut Nuts

Part No Type Depth Fits Hole Size Self Tap. Screw Size Example of Use
GFK3428 Square 0.324" 0.240" or 0.250" square No 6 or No 8 Interior door handle
DLP10004 Square 0.406" 0.375" square No 12 Wiper motor
ACU5431A Round

0.429”

0.228”

No 8 Companion box liner
13H226 Round 0.359" 0.250 x 0.190" No 6 or No 8 Dynamo control box
GHF1022 Round 0.423" 0.275" to 0.290" square No 8 or No 10 Inner wing
21A305 Round

0.345”

0.345” to 0.365” square

No 14 Estate/van fuel tank
21A304 Round

0.780”

0.345” to 0.365” square

No 14 Estate/van fuel tank
