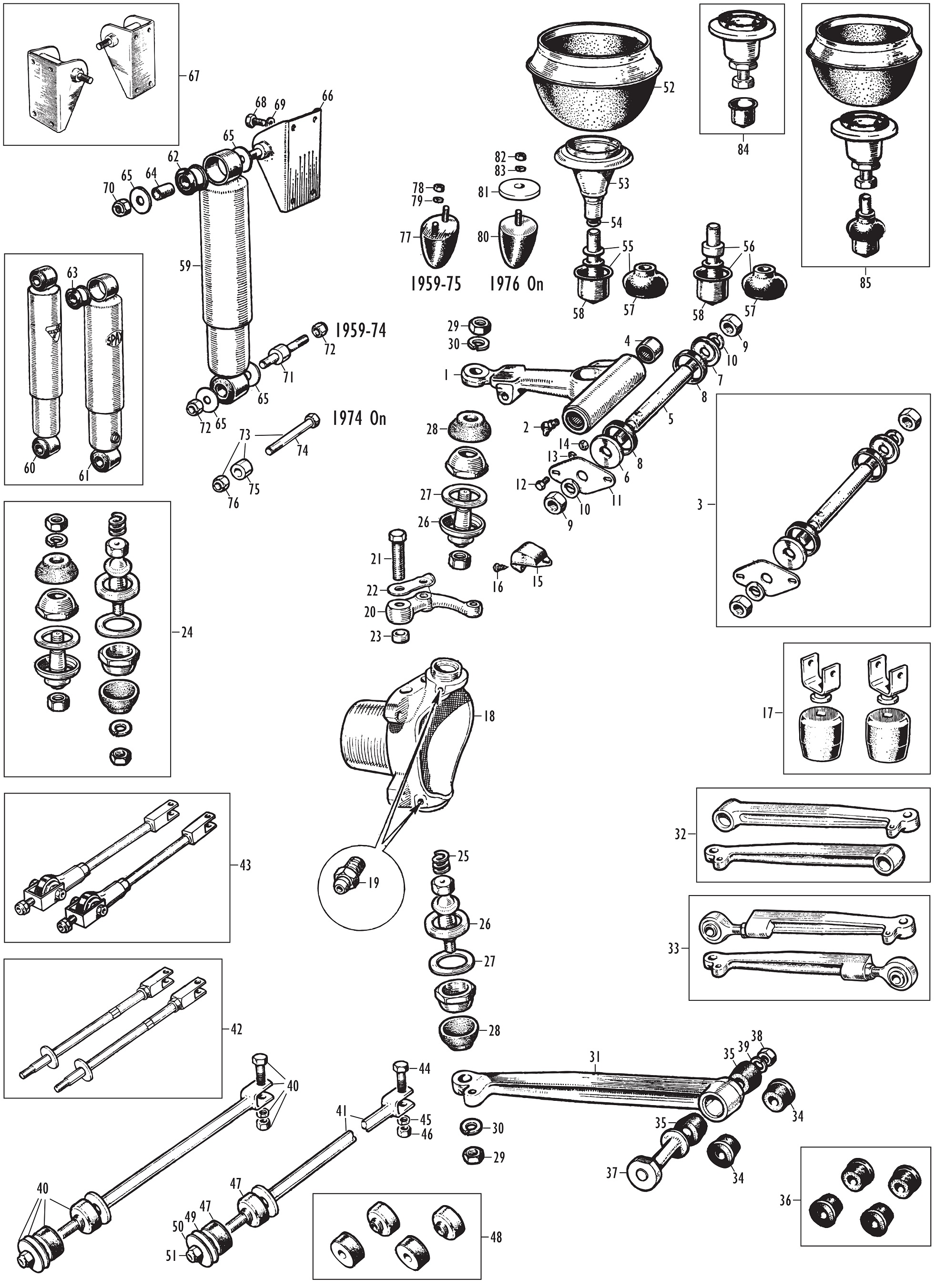

Front suspension - rubber cone

Upper Support Arms
All Saloons 1959-64. 850 and 1000 Saloons 1969-71; All Saloons and Cabriolets 1971 On.
All Travellers, Clubman Estates, Vans and Pick Ups.
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
1	21A2690	UPPER ARM ASSEMBLY, RH	1
	21A2691	UPPER ARM ASSEMBLY, LH	1
	21A2690P	UPPER ARM ASSEMBLY, RH	1
	21A2691P	UPPER ARM ASSEMBLY, LH	1
2	UHN445	NIPPLE, grease, 45 degree angle	2
3	MSK213S	REBUILD KIT, upper arm (services one arm)	2
4	88G302	BEARING, needle roller	4	Included in upper arm assemblies and rebuild kit.
5	2A4325	SHAFT, upper arm	2	Included in rebuild kit.
6	2A4326	COLLAR, thrust	2	Included in rebuild kit.
7	2A7324	WASHER, thrust	2	Included in rebuild kit.
8	2A7327	SEALING RING, rubber	4	Included in rebuild kit.
9	FNZ508	NUT, shaft securing	4	Included in rebuild kit.
10	LWZ208	WASHER, locking	4	Included in rebuild kit.
11	2A4327	PLATE, shaft retaining	2	Included in rebuild kit.
12	SH604051	SCREW, plate to subframe	4
13	LWZ204	WASHER, locking	4
14	FNZ104	NUT	4
15	2A4267	BUFFER, rebound	2
16	PMZ308	SCREW, buffer to subframe	2
17	C-AJJ4007	BUMP STOP KIT, uprated	1	For fast road or competition use. Designed for Hydrolastic suspension, but may be adapted for rubber cone suspension.

Swivel Hubs
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
18	21A371	HUB, swivel, RH	1	Drum braked models.
	FAM2390	HUB, swivel, RH	1	Disc braked models.
	21A372	HUB, swivel, LH	1	Drum braked models.
	FAM2391	HUB, swivel, LH	1	Disc braked models.
19	LN10051	NIPPLE, grease, straight	2
20	21A73	ARM, steering, RH	1	All Mk I models 1959-64 except Cooper S.
	BTA896	ARM, steering, RH	1	All models 1967 on, except Cooper S and 1275 GT 1967-74.
	BTA894	ARM, steering, RH	1	Cooper S and 1275 GT, 1963-74 only.
	21A74	ARM, steering, LH	1	All Mk I models 1959-64 except Cooper S.
	BTA897	ARM, steering, LH	1	All models 1967 on, except Cooper S and 1275 GT 1967-74.
	BTA895	ARM, steering, LH	1	Cooper S and 1275 GT, 1963-74 only.
21	2A4315	SCREW, steering arm to swivel hub	4
22	2K5377	LOCKTAB, steering arm screw	2
23	FAM6924	DOWEL, steering arm locating	4
24	GSJ166	SWIVEL BALL JOINT KIT (one kit per swivel hub)	2
	GSJ166OE	SWIVEL BALL JOINT KIT (one kit per swivel hub)	2
25	21A370	SPRING, ball joint	2	Included in swivel ball joint kit.
26	2A4238	LOCKTAB, ball joint	4	Included in swivel ball joint kit.
27	21A105	SHIM, ball joint, 0.002"	A/R
	2A4239	SHIM, ball joint, 0.003"	A/R	Included in swivel ball joint kit.
	2A4240	SHIM, ball joint, 0.005"	A/R	Included in swivel ball joint kit.
	2A4241	SHIM, ball joint, 0.010"	A/R	Included in swivel ball joint kit.
	21A529	SHIM, ball joint, 0.020"	A/R
28	BTA377	COVER, dust	4	Included in swivel ball joint kit.
29	FNZ507	NUT, ball joints to suspension arms	4	Included in swivel ball joint kit.
30	LWZ207	WASHER, locking	4

Lower Wishbone Arms and Tie Rods
Since the mid-1960s the standard lower arms listed here, which accept tapered bushes with steel inserts, have been the only ones available to buy. The arms that preceded them were fitted with 'top hat' bushes without inserts. If you are working on an early 1960s Mini it is of course vital to purchase the correct bushes for your type of lower arms. If you haven't got the bushes to hand to determine which you need (or they're too mangled to recognise...), a quick rub with a wire brush on one of the lower arms will reveal a forging number - a tapered bush type arm will be marked '21A1879/81'.
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
31	21A1879	LOWER ARM, standard, RH	1	Accepts tapered bushes only.
	21A1881	LOWER ARM, standard, LH	1	Accepts tapered bushes only.
32	C-AJJ3364	LOWER ARMS, 1.5 deg. negative camber, pair	1	For fast road or cometition use.
33	C-AJJ3363	LOWER ARMS, adjustable, with sperical joints, pair	1	For competition use.
34	2A4294	BUSH, lower arm, top hat section	4	For original early 1960s lower arms only.
35	21A1882	BUSH, lower arm, tapered section	4	For all other standard lower arms.
36	C-STR631	BUSH KIT, lower arm, uprated, offset centres	1	For negative camber lower arms.
37	2A4362	SHAFT, lower arm	2
Another early 1960s Mini suspension feature was the use of straight lower arm shafts (instead of having the more customary dip in them). The later lower arm shafts are a direct replacement for the early items.

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
38	FNZ506	NUT, shaft to subframe	2
39	LWZ206	WASHER, locking	2
40	8G4249	TIE ROD ASSEMBLY, standard	2
41	21A450	TIE ROD, standard	2	Included in standard tie rod assembly.
42	21A1091	TIE RODS, adjustable, uprated thickness, pair	1	For fast road or competition use.
43	C-AJJ3365	TIE RODS, adjustable, with spherical joints, pair	1	For competition use.
44	53K1031	BOLT, tie rod to lower arm	2	Included in standard tie rod assembly.
45	LWZ205	WASHER, locking	2	Included in standard tie rod assembly.
46	FNZ505	NUT	2	Included in standard tie rod assembly.
47	31G1155	BUSH, tie rod	4	Included in standard tie rod assembly.
48	C-STR629	BUSH KIT, tie rods, uprated, set of 4	1	For fast road or competition use.
49	2A4328	WASHER, cup	2	Included in standard tie rod assembly.
50	PWZ207	WASHER, plain	2	Included in standard tie rod assembly.
51	GHF224	NUT, nyloc, tie rod to subframe	2	Included in standard tie rod assembly.

Rubber Cone Suspension
All Saloons 1959-64. 850 and 1000 Saloons 1969-71; All Saloons and Cabriolets 1971 On.
All Travellers, Clubman Estates, Vans and Pick Ups.
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
52	FAM3968	CONE, spring, rubber, standard	2	Requires metric threaded cone compressor to fit.
	FAM3968P	CONE, spring, rubber, standard	2	Very high quality non-genuine item; requires metric threaded
				cone compressor to fit.
Early cones had an imperial compression nut; this was changed to metric in the mid 1970s. When removing or refitting cones, to an earlier car, be sure to use the correct thread on your cone compression tool!

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
	C-STR687	CONE, spring, rubber, uprated	2	For fast road or competition use.
53	2A4355	STRUT, steel (also known as 'trumpet')	2	1959-61.
	21A530	STRUT, aluminium (also known as 'trumpet')	2	1961 on; may be used on earlier models.
54	21A463	WASHER, special	2	Models with steel struts, 1959-61.
	21A1845	WASHER, spacing strut	A/R	Usually automatic models; use to raise suspension height.
55	GSV1118	KNUCKLE JOINT ASSEMBLY	2	1959-91.
56	GSV1264	KNUCKLE JOINT ASSEMBLY, with spacer	2	1991 on.
57	21A425	COVER, dust	2	Included in knuckle joint assembly.
58	21A423	SOCKET, joint	2	Included in knuckle joint assembly.
59	GSA971388	SHOCK ABSORBER ASS'Y, standard	2
	GSA971114	SHOCK ABSORBER ASS'Y, Koni, uprated	2	1997 on, Sports Pack models.
60	801675	SHOCK ABSORBER ASS'Y, Koni, standard height	2
	801717	SHOCK ABSORBER ASS'Y, Koni, lowered suspension	2
61	GM1	SHOCK ABSORBER ASS'Y, Spax, standard height	2
	GM11	SHOCK ABSORBER ASS'Y, Spax, lowered suspension	2
62	21A1230	BUSH, shock absorber, standard	4	Included in standard shock absorber assembly.
63	SSB0010	BUSH, shock absorber, Spax	4	Included in Spax shock absorber assembly.
64	21A504	DISTANCE PIECE, bush	4
65	AJD7162	WASHER, shock absorber bush retaining	8
66	21A471	BRACKET, shock absorber mounting, RH	1
	21A474	BRACKET, shock absorber mounting, LH	1
67	C-AJJ3359	BRACKETS, shock absorber mounting, pair	1	For lowered suspension only.
68	SH604061	SCREW, bracket to body	8
69	LWZ204	WASHER, locking	8
70	LNZ206	NUT, nyloc, shock absorber to bracket	2
71	2A4337	PIN, shock absorber to upper arm	2	Up to 1974 approx.
72	LNZ206	NUT, nyloc, shock absorber to pin and pin to upper arm	4	Up to 1974 approx.
73	KMN385	FITTING KIT, shock absorber to upper arm	2	1974 approx. on; may be used on earlier models.
74	BH606321	BOLT, shock absorber to upper arm	2	1974 approx. on; included in fitting kit.
75	21A2694	DISTANCE PIECE	2	1974 approx. on; included in fitting kit.
76	LNZ206	NUT, nyloc, shock absorber to bolt	2	1974 approx. on; included in fitting kit.
77	2A4332	BUFFER, bump, two stud fixing	2	1959-75.
78	FNZ104	NUT	4	1959-75.
79	LWZ204	WASHER, locking	4	1959-75.
80	FAM2764	BUFFER, bump, single stud fixing	2	1976 on.
81	FAM2767	WASHER, packing	2	1976 on.
82	FNZ104	NUT	2	1976 on.
83	LWZ204	WASHER, locking	2	1976 on.

Adjustable Suspension Units
Manufactured in the UK exclusively for Somerford Mini Ltd., These are high quality struts giving a very fine degree of ride height adjustment by the simple use of two spanners, making them ideal not only for 1959-91 Saloons but also for post-1992 Saloons, plus Travellers, Vans and Pick Ups - models on which rear adjustment would not have been easy using the older, traditional adjustable suspension systems. They fit standard cones and knuckle joints.

Sold individually, the adjustable suspension units are available in two specifications: standard or fast road/competition, the latter fitted with a grease nipple and employing a larger cone seat to increase the spring rate.
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
84	ASU001	ADJUSTABLE SUSPENSION UNIT, front	2	Standard specification.
	ASU003	ADJUSTABLE SUSPENSION UNIT, front	2	Fast road/competition specification.
	ASU002	ADJUSTABLE SUSPENSION UNIT, rear	2	Standard specification.
	ASU004	ADJUSTABLE SUSPENSION UNIT, rear	2	Fast road/competition specification.

Moulton Smootha Ride Suspension Kit
Conceived by Dr. Alex Moulton, designer of the original Mini rubber cone and Hydrolastic suspension systems, Smootha Ride provides the simplicity of rubber cones but with an extraordinarily smooth, comfortable ride, more akin to the Hydrolastic system. It makes the car easier to drive, too.

The kit includes Moulton suspension cones for front and rear, adjustable suspension units for front and rear, negative camber and track brackets for the rear plus fitting and adjusting instructions. We recommend the use of our Koni standard height shock absorbers with this system.
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
85	MOULTON	SMOOTHA RIDE SUSPENSION KIT	1
