Carburetters - single hif 1990-94

Part No: AJD8104Z
  In Stock
Required Quantity: 2
£0.43 inc VAT £0.36 exc VAT
Add to Basket
Part No: PWZ105
  In Stock
Required Quantity: 4
£0.29 inc VAT £0.24 exc VAT
Add to Basket
Part No: 12H4271
  In Stock
Required Quantity: 1
£2.81 inc VAT £2.34 exc VAT
Add to Basket
Part No: AUC1358
  In Stock
Required Quantity: 2
£1.10 inc VAT £0.92 exc VAT
Add to Basket
Part No: AUC2054
  In Stock
Required Quantity: 1
£1.96 inc VAT £1.63 exc VAT
Add to Basket
Part No: AUC2099
  Available to Customer Order
Required Quantity: 1
£0.71 inc VAT £0.59 exc VAT
Add to Basket
Part No: AUC2246
  No Longer Available
Required Quantity: 4
£0.00 inc VAT £0.00 exc VAT
Add to Basket
Part No: AUC4127
  Available to Customer Order
Required Quantity: 1
£0.65 inc VAT £0.54 exc VAT
Add to Basket
Part No: AUD3080
  In Stock
Required Quantity: 2
£4.24 inc VAT £3.53 exc VAT
Add to Basket
Part No: AUD3306
  In Stock
Required Quantity: 1
£0.97 inc VAT £0.81 exc VAT
Add to Basket
Part No: AUD3323
  In Stock
Required Quantity: 2

£0.60 inc VAT £0.50 exc VAT
Add to Basket
Part No: AUD3569
  Available to Customer Order
Required Quantity: 1
£5.99 inc VAT £4.99 exc VAT
Add to Basket
Part No: AUD3577
  In Stock
Required Quantity: 1
£5.04 inc VAT £4.20 exc VAT
Add to Basket
Part No: AUD3583
  Available to Customer Order
Required Quantity: 1
£2.32 inc VAT £1.93 exc VAT
Add to Basket
Part No: AUD3584
  Available to Customer Order
Required Quantity: 1
£4.60 inc VAT £3.83 exc VAT
Add to Basket
Part No: AUD3585
  Available to Customer Order
Required Quantity: 1
£2.76 inc VAT £2.30 exc VAT
Add to Basket
Part No: AUD3586
  Available to Customer Order
Required Quantity: 1
£1.10 inc VAT £0.92 exc VAT
Add to Basket
Part No: AUD3588
  In Stock
Required Quantity: 1
£2.22 inc VAT £1.85 exc VAT
Add to Basket
Part No: AUD3590
  In Stock
Required Quantity: 4
£0.86 inc VAT £0.72 exc VAT
Add to Basket
Part No: AUD3602
  In Stock
Required Quantity: 1
£0.77 inc VAT £0.64 exc VAT
Add to Basket
Part No: AUD3606
  Available to Customer Order
Required Quantity: 2
£1.10 inc VAT £0.92 exc VAT
Add to Basket
Part No: AUD4099
  In Stock
Required Quantity: 1
£0.77 inc VAT £0.64 exc VAT
Add to Basket
Part No: AUD4217
  In Stock
Required Quantity: 1
£3.54 inc VAT £2.95 exc VAT
Add to Basket
Part No: AUD4251
  In Stock
Required Quantity: 1

£3.53 inc VAT £2.94 exc VAT
Add to Basket
Part No: AUD4252
  Available to Customer Order
Required Quantity: 1
£5.18 inc VAT £4.32 exc VAT
Add to Basket
Part No: AUD4355
  In Stock
Required Quantity: 1
£10.76 inc VAT £8.97 exc VAT
Add to Basket
Part No: AUD4417
  In Stock
Required Quantity: 1
£1.54 inc VAT £1.28 exc VAT
Add to Basket
Part No: AUD4454
  Available to Customer Order
Required Quantity: 1
£1.66 inc VAT £1.38 exc VAT
Add to Basket
Part No: AUD4500
  Available to Customer Order
Required Quantity: 1
£12.44 inc VAT £10.37 exc VAT
Add to Basket
Part No: AUD4705
  Available to Customer Order
Required Quantity: 1
£1.86 inc VAT £1.55 exc VAT
Add to Basket
Part No: AUD4771
  Available to Customer Order
Required Quantity: 1
£0.89 inc VAT £0.74 exc VAT
Add to Basket
Part No: CRK167
  In Stock
Required Quantity: 1
£111.64 inc VAT £93.03 exc VAT
Add to Basket
Part No: CRK274
  In Stock
Required Quantity: 1
£106.14 inc VAT £88.45 exc VAT
Add to Basket
Part No: CSK004
  In Stock
Required Quantity: 1
£20.81 inc VAT £17.34 exc VAT
Add to Basket
Part No: CSK75
  In Stock
Required Quantity: 1
£67.60 inc VAT £56.33 exc VAT
Add to Basket
Part No: CSK94
  In Stock
Required Quantity: 1
£72.01 inc VAT £60.01 exc VAT
Add to Basket
Part No: CUD2082
  Available to Customer Order
Required Quantity: 1
£5.28 inc VAT £4.40 exc VAT
Add to Basket
Part No: CUD2399
  In Stock
Required Quantity: 1
£29.05 inc VAT £24.21 exc VAT
Add to Basket
Part No: CUD2791
  Available to Customer Order
Required Quantity: 1
£29.84 inc VAT £24.87 exc VAT
Add to Basket
Part No: FZX1531
  Available to Customer Order
Required Quantity: 1
£737.95 inc VAT £614.96 exc VAT
Add to Basket
Part No: FZX3005
  In Stock
Required Quantity: 1
£737.95 inc VAT £614.96 exc VAT
Add to Basket
Part No: GUG705561
  In Stock
Required Quantity: 1
£0.82 inc VAT £0.68 exc VAT
Add to Basket
Part No: JZX1005
  In Stock
Required Quantity: 1
£57.61 inc VAT £48.01 exc VAT
Add to Basket
Part No: JZX1039
  In Stock
Required Quantity: 1
£6.82 inc VAT £5.68 exc VAT
Add to Basket
Part No: JZX1180
  Available to Customer Order
Required Quantity: 1
£1.31 inc VAT £1.09 exc VAT
Add to Basket
Part No: JZX1394
  In Stock
Required Quantity: 3
£0.59 inc VAT £0.49 exc VAT
Add to Basket
Part No: JZX1586
  In Stock
Required Quantity: 1
£1.33 inc VAT £1.11 exc VAT
Add to Basket
Part No: JZX1665
  Available to Customer Order
Required Quantity: 1
£0.91 inc VAT £0.76 exc VAT
Add to Basket
Part No: JZX1846
  No Longer Available
Required Quantity: 1
£0.00 inc VAT £0.00 exc VAT
Add to Basket
Part No: JZX1991
  In Stock
Required Quantity: 1
£0.38 inc VAT £0.32 exc VAT
Add to Basket
Part No: JZX1994
  In Stock
Required Quantity: 2
£4.01 inc VAT £3.34 exc VAT
Add to Basket
Part No: LZX1511
  Available to Customer Order
Required Quantity: 1
£26.88 inc VAT £22.40 exc VAT
Add to Basket
Part No: LZX1521
  In Stock
Required Quantity: 1

£384.06 inc VAT £320.05 exc VAT
Add to Basket
Part No: LZX1523
  Available to Customer Order
Required Quantity: 1
£145.75 inc VAT £121.46 exc VAT
Add to Basket
Part No: LZX2085
  In Stock
Required Quantity: 1
£26.88 inc VAT £22.40 exc VAT
Add to Basket
Part No: MAC10031
  No Longer Available
Required Quantity: 1
£0.00 inc VAT £0.00 exc VAT
Add to Basket
Part No: MAC10032
  Available to Customer Order
Required Quantity: 1
£737.95 inc VAT £614.96 exc VAT
Add to Basket
Part No: NZX4036
  In Stock
Required Quantity: 1
£21.92 inc VAT £18.27 exc VAT
Add to Basket
Part No: NZX8071
  In Stock
Required Quantity: 1
£21.92 inc VAT £18.27 exc VAT
Add to Basket
Part No: WZX1120
  Available to Customer Order
Required Quantity: 1
£6.79 inc VAT £5.66 exc VAT
Add to Basket
Part No: WZX1128
  In Stock
Required Quantity: 1
£49.82 inc VAT £41.52 exc VAT
Add to Basket
Part No: WZX1255
  In Stock
Required Quantity: 1
£5.16 inc VAT £4.30 exc VAT
Add to Basket
Part No: WZX1256
  Available to Customer Order
Required Quantity: 1
£3.89 inc VAT £3.24 exc VAT
Add to Basket
Part No: WZX1257
  Available to Customer Order
Required Quantity: 1
£35.45 inc VAT £29.54 exc VAT
Add to Basket
Part No: WZX1258
  In Stock
Required Quantity: 1
£8.23 inc VAT £6.86 exc VAT
Add to Basket
Part No: WZX1264
  In Stock
Required Quantity: 1
£37.34 inc VAT £31.12 exc VAT
Add to Basket
Part No: WZX1268
  In Stock
Required Quantity: 1
£4.00 inc VAT £3.33 exc VAT
Add to Basket
Part No: WZX1269
  Available to Customer Order
Required Quantity: 1
£13.19 inc VAT £10.99 exc VAT
Add to Basket
Part No: WZX1276
  In Stock
Required Quantity: 1
£7.36 inc VAT £6.13 exc VAT
Add to Basket
Part No: WZX1387
  Available to Customer Order
Required Quantity: 1
£16.45 inc VAT £13.71 exc VAT
Add to Basket
Part No: WZX1414
  In Stock
Required Quantity: 1
£34.38 inc VAT £28.65 exc VAT
Add to Basket
Part No: WZX1441
  In Stock
Required Quantity: 1
£19.01 inc VAT £15.84 exc VAT
Add to Basket
Part No: WZX1453
  In Stock
Required Quantity: 1
£29.44 inc VAT £24.53 exc VAT
Add to Basket
Part No: WZX1505
  In Stock
Required Quantity: 1
£16.92 inc VAT £14.10 exc VAT
Add to Basket
Part No: WZX1509
  In Stock
Required Quantity: 1
£51.84 inc VAT £43.20 exc VAT
Add to Basket
Part No: WZX2100
  In Stock
Required Quantity: 1
£28.28 inc VAT £23.57 exc VAT
Add to Basket
Part No: FNZ205
  No Longer Available
Required Quantity: 4
£0.00 inc VAT £0.00 exc VAT
Add to Basket
Part No: WZX1099
  In Stock
Required Quantity: 1
£19.67 inc VAT £16.39 exc VAT
Add to Basket
Part No: AUD4398
  In Stock
Required Quantity: 1
£10.75 inc VAT £8.96 exc VAT
Add to Basket
Carburetter Assemblies
For the short period (1990-91) before it was equipped with fuel injection, the 1275cc Mini Cooper engine sported a single HIF 44 (44mm diameter) carburetter, easily identifiable from an HS4 carburetter by its integral float chamber housed in the bottom of the carburetter body casting. When the Mini Mayfair and Sprite (nee City) exchanged their 998cc engines for 'standard performance' 1275cc versions in 1992, they too received an HIF type carburetter - albeit slightly smaller, the HIF 38 (38mm diameter). They retained this carburetter installation until 1994 when, like the Cooper had been three years before, they were equipped with fuel injection.

Identification of your HIF carburetter is absolutely necessary before ordering parts. It should be a simple matter of looking at the aluminium tag attached to one of the suction chamber screws; the number stamped on the tag should correspond to one of the carburetter part numbers listed here. Failing that, if the tag is missing, a study of the applications below will help.

Reconditioned and in some instances new carburetters are available; please contact us for details.

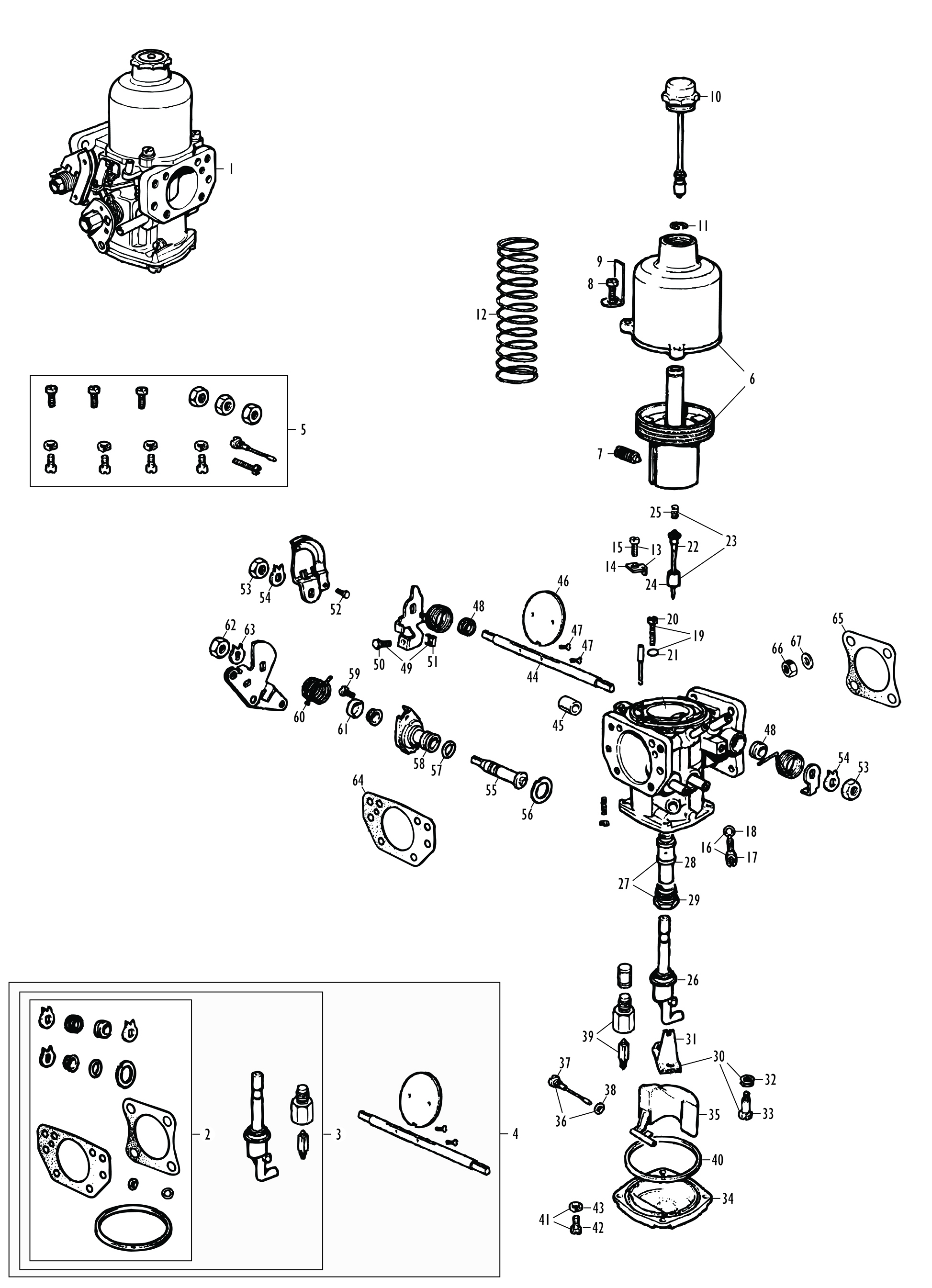

1275cc Cooper Carburetter Assembly
Ill. No. Part No. Description Qty. Rqd. Remarks
1 FZX1531 CARBURETTER ASSEMBLY, HIF 44 1 1990-91.

1275cc Mayfair and Sprite Carburetter Assemblies
Ill. No. Part No. Description Qty. Rqd. Remarks
  MAC10031 CARBURETTER ASSEMBLY, HIF 38 1 1992-94; manual gearbox.
  MAC10032 CARBURETTER ASSEMBLY, HIF 38 1 1992-94; automatic gearbox.

New Replacement Carburetter Assembly
Ill. No. Part No. Description Qty. Rqd. Remarks
  FZX3005 CARBURETTER ASSEMBLY, HIF44 1

Gasket, Service, Rebuild and Sundries Kits
A gasket kit includes manifold gasket, air filter gasket, float spindle washer, float lid seal, throttle and starter spindle seals, O rings and lock tabs, plus adjusting screw seals.
Ill. No. Part No. Description Qty. Rqd. Remarks
2 WZX1505 GASKET KIT, HIF carburetter 1 For all carburetters.

A service kit includes the gasket kit, plus needle and seat and jet assembly.
Ill. No. Part No. Description Qty. Rqd. Remarks
3 CSK75 SERVICE KIT, HIF 44 carburetter 1 For FZX1531 carburetters.
  CSK94 SERVICE KIT, HIF 38 carburetter 1 For MAC10031 and MAC10032 carburetters.

A rebuild kit includes the service kit, plus throttle spindle, throttle disc and throttle disc screws.
Ill. No. Part No. Description Qty. Rqd. Remarks
4 CRK167 REBUILD KIT, HIF 44 carburetter 1 For FZX1531 carburetters.
  CRK274 REBUILD KIT, HIF 38 carburetter 1 For MAC10031 and MAC10032 carburetters.

A sundries kit includes suction chamber screws, float lid screws and washers, stop screw and spring, float spindle and throttle spindle nuts.
Ill. No. Part No. Description Qty. Rqd. Remarks
5 CSK004 SUNDRIES KIT, HIF type carburetter 1

Components
Ill. No. Part No. Description Qty. Rqd. Remarks
6 LZX1521 SUCTION CHAMBER ASSEMBLY 1 For FZX1531 carburetters.
  LZX1523 SUCTION CHAMBER ASSEMBLY 1 For MAC10031 and MAC10032 carburetters.
7 AUD4252 SCREW, locking needle 1 For FZX1531 carburetters; included in suction chamber assembly.
  AUD4251 SCREW, locking needle 1 For MAC10031 and MAC10032 carburetters; included in suction chamber assembly.
8 JZX1394 SCREW, chamber to body 3
9 JZX1665 TAG, carburetter identification 1
JZX1665 is a blank tag; when ordering, please state the carburetter assembly number you require stamped on the tag.

Ill. No. Part No. Description Qty. Rqd. Remarks
10 LZX2085 DAMPER, suction chamber 1 For FZX1531 carburetters.
  LZX1511 DAMPER, suction chamber 1 For MAC10031 and MAC10032 carburetters.
11 JZX1586 CIRCLIP, damper 1
12 AUD4355 SPRING, piston, red 1
13 WZX1120 PISTON GUIDE KEY KIT 1 For FZX1531 carburetters.
14 AUC2054 KEY, piston guide 1 For FZX1531 carburetters; included in piston guide key kit.
  AUD4454 KEY, piston guide 1 For MAC10031 and MAC10032 carburetters.
15 AUC2099 SCREW, piston guide key 1 For all carburetters; included in piston guide key kit.
16 WZX1255 MIXTURE SCREW KIT 1
17 AUD3585 SCREW, mixture 1 Included in mixture screw kit.
18 AUD3586 SEAL, mixture screw 1 Included in mixture screw kit.
19 WZX1256 IDLE ADJUSTING SCREW KIT 1
20 JZX1180 SCREW, idle adjusting 1 Included in idle adjusting screw kit.
21 AUD3586 SEAL, idle adjusting screw 1 Included in idle adjusting screw kit.
22 NZX8071 NEEDLE, jet, biased (BFY) 1 For FZX1531 carburetters.
  NZX4036 NEEDLE, jet, biased (AEM) 1 For MAC10031 and MAC10032 carburetters.
23 WZX1276 NEEDLE GUIDE KIT 1
24 JZX1039 GUIDE, needle 1 Included in needle guide kit.
25 AUD3306 SPRING, needle 1 Included in needle guide kit.
26 WZX1453 JET ASSEMBLY 1 For FZX1531 carburetters.
  WZX2100 JET ASSEMBLY (your WZX1455A??) 1 For MAC10031 and MAC10032 carburetters.
27 WZX1441 JET BEARING KIT 1
28 AUD4500 BEARING, jet 1 Included in jet bearing kit.
29 AUD3569 NUT, jet locking 1 Included in jet bearing kit.
30 WZX1257 BI-METAL ASSEMBLY KIT 1
31 CUD2399 BI-METAL ASSEMBLY 1 Included in bi-metal assembly kit.
32 AUD3583 SPRING, bi-metal assembly 1 Included in bi-metal assembly kit.
33 AUD3584 SCREW, bi-metal assembly 1 Included in bi-metal assembly kit.
34 JZX1005 FLOAT LID 1
35 WZX1509 FLOAT KIT 1 Includes float lid seal, float spindle washer, manifold and air filter gaskets.
36 WZX1258 FLOAT SPINDLE KIT 1
37 CUD2082 SPINDLE, float 1 Included in float spindle kit.
38 AUC4127 WASHER, float spindle 1 Included in float spindle kit.
39 WZX1099 NEEDLE AND SEAT ASS'Y 1 Includes float lid seal.
40 AUD3588 SEAL, float lid 1
41 WZX1268 FLOAT LID SCREW KIT 1
42 AUD3590 SCREW, float lid attachment 4 Included in float lid screw kit.
43 AUC2246 WASHER, locking 4 Included in float lid screw kit.
44 WZX1128 THROTTLE SPINDLE KIT 1 For FZX1531 carburetters.
  WZX1264 THROTTLE SPINDLE KIT 1 For MAC10031 and MAC10032 carburetters.
A throttle spindle kit includes lock tabs, disc screws, manifold and air filter gaskets.

Ill. No. Part No. Description Qty. Rqd. Remarks
45 AUD3080 BUSH, throttle spindle 2
Note that the throttle spindle bosses on the carburetter body must be reamed to 9.5mm diameter before fitting bushes.

Ill. No. Part No. Description Qty. Rqd. Remarks
46 WZX1414 THROTTLE DISC KIT 1 For FZX1531 carburetters.
  WZX1387 THROTTLE DISC KIT 1 For MAC10031 and MAC10032 carburetters.
A throttle disc kit includes throttle disc, throttle disc screws, manifold and air filter gaskets.

Ill. No. Part No. Description Qty. Rqd. Remarks
47 AUC1358 SCREW, throttle disc to spindle 2
48 JZX1994 SEAL, throttle spindle 2
49 WZX1269 FAST IDLE SCREW KIT 1
50 JZX1846 SCREW, fast idle 1 Included in fast idle screw kit.
51 AUD4771 CLIP, fast idle screw 1 Included in fast idle screw kit.
52 AUD4099 SCREW, clamping cable to throttle lever 1
53 AJD8104Z NUT, throttle spindle 2
54 AUD3323 LOCK TAB, throttle spindle 2
55 CUD2791 SPINDLE, starter 1
56 AUD3602 O RING, starter spindle, inner 1
57 JZX1991 O RING, starter spindle, outer 1
58 AUD3577 SEAL, starter spindle 1
59 AUD3606 SCREW, starter body to carburetter body 2
60 AUD4417 SPRING, starter return 1
61 AUD4217 SUPPORT, starter return spring 1
62 AJD8104Z NUT, starter spindle 2
63 AUD3323 LOCK TAB, starter spindle 2
64 12H4271 GASKET, air filter 1 For FZX1531 carburetters.
  AUD4705 GASKET, air filter 1 For MAC10031 and MAC10032 carburetters.
65 GUG705561 GASKET, carburetter to abutment plate 1
66 FNZ205 NUT, carburetter to manifold 4
67 PWZ105 WASHER, plain 4
View As
Sort by:
Show items
Items 1 to 12 of 78 total
1 2 3 4 5 6 ...
Part No: WZX1099
  In Stock
Required Quantity: 1
£19.67 inc VAT £16.39 exc VAT
Add to Basket
Part No: FNZ205
  No Longer Available
Required Quantity: 4
£0.00 inc VAT £0.00 exc VAT
Add to Basket
Part No: WZX2100
  In Stock
Required Quantity: 1
£28.28 inc VAT £23.57 exc VAT
Add to Basket
Part No: WZX1509
  In Stock
Required Quantity: 1
£51.84 inc VAT £43.20 exc VAT
Add to Basket
Part No: WZX1505
  In Stock
Required Quantity: 1
£16.92 inc VAT £14.10 exc VAT
Add to Basket
Part No: WZX1453
  In Stock
Required Quantity: 1
£29.44 inc VAT £24.53 exc VAT
Add to Basket
Part No: WZX1441
  In Stock
Required Quantity: 1
£19.01 inc VAT £15.84 exc VAT
Add to Basket
Part No: WZX1414
  In Stock
Required Quantity: 1
£34.38 inc VAT £28.65 exc VAT
Add to Basket
Part No: WZX1387
  Available to Customer Order
Required Quantity: 1
£16.45 inc VAT £13.71 exc VAT
Add to Basket
Part No: WZX1276
  In Stock
Required Quantity: 1
£7.36 inc VAT £6.13 exc VAT
Add to Basket
Part No: WZX1269
  Available to Customer Order
Required Quantity: 1
£13.19 inc VAT £10.99 exc VAT
Add to Basket
Part No: WZX1268
  In Stock
Required Quantity: 1
£4.00 inc VAT £3.33 exc VAT
Add to Basket
Items 1 to 12 of 78 total
1 2 3 4 5 6 ...
Request a free catalogue
