Tools, manuals and workshop consumables

Original Tool Kits
1959-69

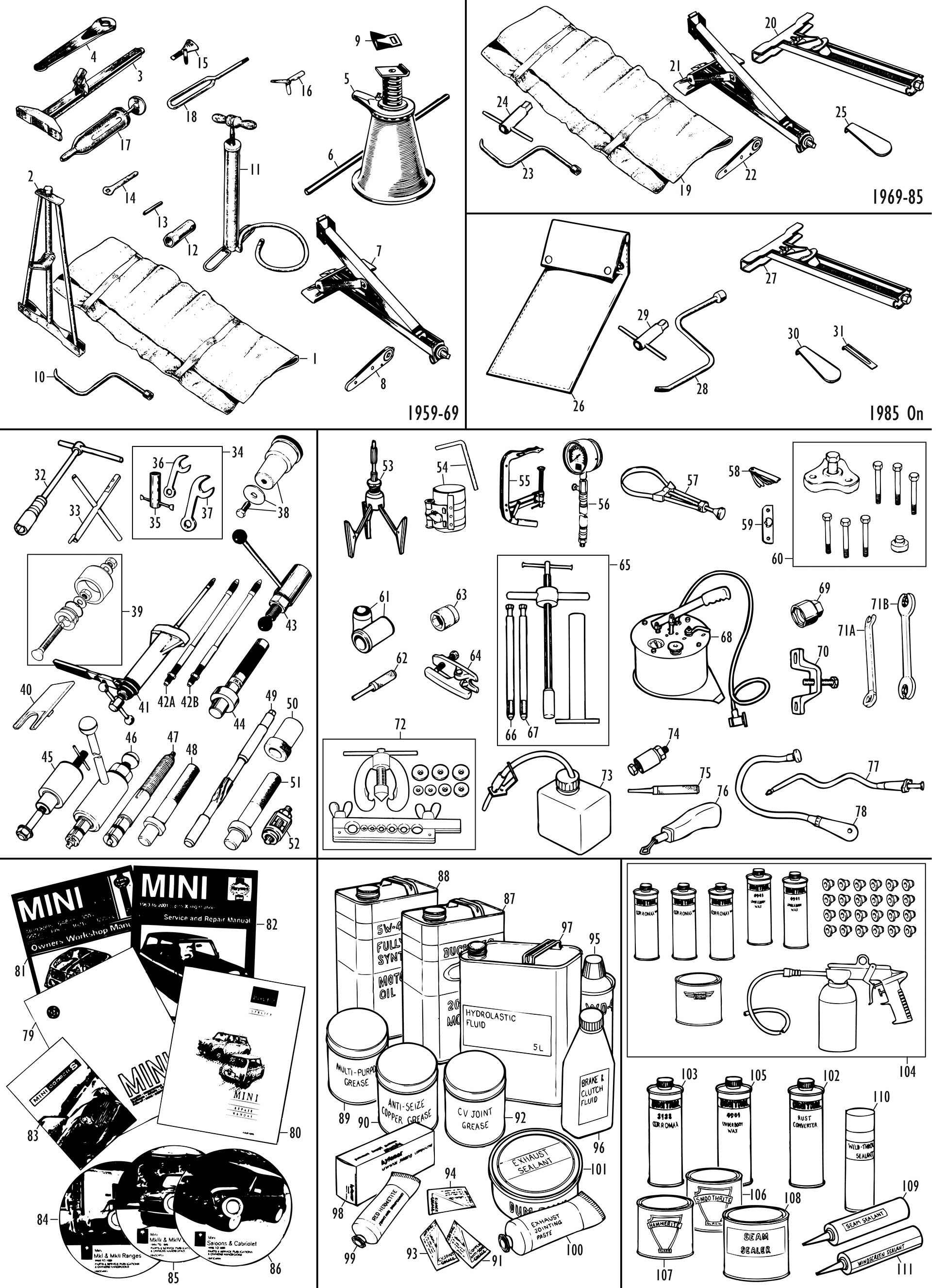

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
1	11H169	TOOL BAG, Hardura, black	1
2	13H838	JACK, side lift, 'A' frame type	1	Saloon.
3	21A98	JACK, side lift, tubular type	1	Saloon; alternative.
4	13H482	RATCHET HANDLE, jack	1	For 13H838 and 21A98 jacks.
5	13H443	JACK, lifting, bottle type	1	Traveller, Van and Pick Up.
	13H527	JACK, lifting, bottle type	1	Traveller, Van and Pick Up; alternative.
6	13H444	TOMMY BAR, bottle jack, 1/2" dia.	1	For 13H443 jack.
	13H518	TOMMY BAR, bottle jack, 3/8" dia.	1	For 13H527 jack.
7	21A1643	JACK, lifting, cantilever type	1	Traveller, Van and Pick Up; alternative.
8	ACA9932	RATCHET HANDLE, jack	1	For 21A1643 jack.
9	21A590	BRACKET, levelling, front	1	Traveller, Van and Pick Up.
10	2A5891	WHEEL BRACE AND JACK HANDLE	1
11	523638A	TYRE PUMP	1	Original BMC type.
12	2A5379	BOX SPANNER, spark plug	1
13	88G570	TOMMY BAR, box spanner	1
14	2A5892	SPANNER, brake adjustment	1
15	500905	GAUGE AND SCREWDRIVER, ignition adjustment	1	Original Lucas type.
16	97H2724	GAUGE, spark plug and tappet clearance	1
17	119218	GREASE GUN	1	Original BMC type.
18	2H4614	SCREWDRIVER	1

1969-85
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
19	11H169	TOOL BAG, Hardura, black	1	1969-76.
	AHH6540	TOOL BAG, Hardura, black	1	1976-85.
20	CHM64	JACK, side lift, tubular type	1	Saloon.
21	21A2533	JACK, lifting, cantilever type	1	Clubman Estate, Van and Pick Up.
22	13H6692	RATCHET HANDLE, jack	1	For 21A2533 jack.
23	21A2818	WHEEL BRACE AND JACK HANDLE	1
24	FAM2568	WHEEL BRACE AND JACK HANDLE	1	1982-85, alternative.
25	31G957	LEVER, hub cap removal	1

1985 On
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
26	FAM2840	TOOL BAG, PVC, black	1
	KAC100100	TOOL BAG, PVC, Citrus Green	1	Paul Smith limited edition.
27	CHM64	JACK, side lift, tubular type	1	Saloons.
	KAJ10005	JACK, scissor type	1	Rover Mini Cabriolet.
	FAM8223	HANDLE, scissor jack	1	Rover Mini Cabriolet.
28	21A2818	WHEEL BRACE AND JACK HANDLE	1
29	FAM2568	WHEEL BRACE AND JACK HANDLE	1	Alternative.
30	31G957	LEVER, hub cap removal	1
31	NAM1412	LEVER, hub cap removal	1	Alternative.

Service Tools
Original BMC/Leyland/Rover Service Tools
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
32	GAT140 (Moss)	SPARK PLUG SPANNER, 14mm, universal jointed	1
33	18G1308	ADJUSTING TOOL, distributor	1	Ducellier distributor.
34	AUE670 (Burlen)	SU SERVICE TOOL KIT	1
35	SUT1	TUBE SPANNER, for needle and seat	1	Included in SU service tool kit.
36	AUD2693	SPANNER, carburetter adjustment	1	Included in SU service tool kit.
37	JZX1187	SPANNER, carburetter adjustment	1	Included in SU service tool kit.
38	18G571	CENTRALISER, clutch plate	1	For early ('wet' bush primary gear) clutch.
	18G684	CENTRALISER, clutch plate	1	For later ('dry' bush primary gear) clutch and Verto clutch..
39	18G617C	PULLER, first motion shaft bearing	1	All gearboxes except very early 3 synchro and Metro Turbo.
40	18G1240	EXTRACTOR, 'pot' joint, drive shaft	1
41	18G574B	COMPRESSOR, rubber cone, suspension	1	With imperial threaded spindle.
42A	18G574A	SPINDLE, cone compressor	1	Imperial thread.
42B	18G574-1	SPINDLE, cone compressor	1	Metric thread.
43	18G581	EXTRACTOR, upper arm and idler gear needle bearing	1
44	18G582	REPLACER, upper arm and idler gear needle bearing	1
45	18G1340	EXTRACTOR/REPLACER, lower arm bush	1
46	18G583	EXTRACTOR, radius arm bush	1
47	18G583B	ADAPTOR, radius arm bush extractor	1
48	18G584	REPLACER, radius arm bush	1
49	18G588	REAMER, radius arm bush	1
50	18G588A	GUIDE, radius arm bush reamer	1
51	18G620	REPLACER, radius arm needle bearing	1
52	CCT001	CIRCLIP TOOL, wheel cylinder	1

Other Quality Service Tools
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
53	028100	HONING TOOL, cylinder block	1
54	660370	COMPRESSOR, piston ring	1
55	660210	COMPRESSOR, valve spring	1
56	31400000	COMPRESSION TESTER	1
57	038400	REMOVAL TOOL, oil filter	1
58	660940	FEELER GAUGE SET, imperial	1
59	085105	LOCKING TOOL, flywheel	1
60	660300	PULLER, flywheel, UNF and metric	1
61	TOOL01	FITTING TOOL AND SLEEVE, clutch oil seal	1
62	TOOL04	PUNCH, gear selector roll pin removal	1	1973 on; rod gearchange.
63	015205	SOCKET, ball joint	1
64	660550	SPLITTER, ball joint, heavy duty	1
65	660330	COMPRESSOR, rubber cone, suspension	1
66	085916	SPINDLE, cone compressor	1	Imperial thread.
67	085917	SPINDLE, cone compressor	1	Metric thread.
68	18G703V	PUMP, Hydrolastic and Hydragas suspension	1
69	615215	SOCKET, 1 5/16" AF, disc hub and steering wheel	1
70	660260	PULLER, rear hub bearing	1
71A	660120	SPANNER, brake adjusting, 5/16" AF open end	1
71B	660670	SPANNER, brake pipe nut, 7/16" and 9/16" AF	1
72	TOOL017	BRAKE PIPE FLARING KIT	1	10 piece set.
73	660500	BRAKE BLEEDING KIT, one man operation	1
74	TOOL02	EXTRACTOR/REPLACER, door hinge bush	1	External hinge doors.
75	TOOL03	PUNCH, door hinge pin removal	1	External hinge doors.
76	5406/1	FITTING TOOL, windscreen filler strip	1
77	670003	PICK-UP TOOL, claw type	1
78	670005	PICK-UP TOOL, magnetic type	1

Manuals
Workshop Manuals
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
79	AKD4935	WORKSHOP MANUAL, original publication	1	1959-76.
	AKD4935/2	WORKSHOP MANUAL, original publication	1	1959-76; includes supplement for Australia and Moke.
80	AKM6353	WORKSHOP MANUAL, original publication	1	1976-92.
	AKM7169ENG	WORKSHOP MANUAL, original publication	1	1993 on.
	RCL0193ENG	WORKSHOP MANUAL, original publication	1	1997 on; supplements AKM7169ENG.
81	BK002	WORKSHOP MANUAL, Haynes	1	1959-69.
82	BK001	WORKSHOP MANUAL, Haynes	1	1969 on.
We also stock many other publications to help you maintain, modify, learn more about or simply love your Mini (as if we needed to help with that one). While some old favourites are always in stock, others periodically slip in and out of print. Why not contact us to see what we currently have in stock?

Handbooks
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
	AKD3891 (Br/Books)	OWNER'S HANDBOOK, original publication	1	1961-67, Cooper and Cooper S Mk I.
	AKD4997 (M/Spares)	OWNER'S HANDBOOK, original publication	1	1967-69, Cooper and Cooper S Mk II.
83	AKD7364 (M/Spares)	OWNER'S HANDBOOK, original publication	1	1969-71, Cooper S Mk III.
A selection of original owner's handbooks for late model Minis (1985-2000) are still available from Rover. If you require one for your car, please contact us with the year and model of your Mini and we will, having checked availability and price, order one in for you.

Original Technical Publications CD Roms
Now, thanks to the Heritage Motor Centre, you can get all the original publications for your car on one handy and cost-effective CD Rom. Each of the Mini CDs contain the original factory parts catalogues, workshop manuals and handbooks for one era in Mini production, together with details about clubs and the Heritage Motor Centre itself. The Special Tuning CD contains tuning manuals, handbooks, data sheets and parts lists for a large selection of BMC and Leyland cars, including of course Minis. All CD content is reproduced in easily accessed and printed PDF form, the CD also containing PDF reader software if needed.
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
84	HMCC4001	CD ROM, Original Technical Publications	1	Mk I and Mk II Ranges, 1959 to 1969.
85	HMCC4002	CD ROM, Original Technical Publications	1	Mk III and Mk IV Ranges, 1969 to 1985.
86	HMCC4003	CD ROM, Original Technical Publications	1	Saloons and Cabriolet, 1985 to 2000.
	HMCC4004	CD ROM, Original Technical Publications	1	Moke, Authi, Innocenti and ERA, 1964 to 1991.
	HMCC2002	CD ROM, Original Technical Publications	1	BMC and Leyland Special Tuning.

Workshop Consumables
Mechanical Consumables
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
87	DUCKHAMS	MOTOR OIL, Duckhams green 20W/50, 4.5 litre can	A/R
88	GUL1005A	MOTOR OIL, fully synthetic 5W/40, 5 litre can	A/R
89	WC012	GREASE, multi-purpose, 500g can	A/R
90	WC010	GREASE, copper, anti-seize, 500g can	A/R
91	BGS102	GREASE, copper, anti-seize, 5ml sachet	A/R
92	WC011	GREASE, C.V. joint, 500g can	A/R
93	AKF1457	GREASE, C.V. joint, 5ml sachet	A/R
94	BGS101	GREASE, rubber, red, 5ml sachet	A/R
95	WC015	WD-40, 400ml aerosol	A/R
96	GBF4102	BRAKE AND CLUTCH FLUID, DOT 4, 500ml bottle	A/R
	ABF004	BRAKE AND CLUTCH FLUID, silicone, 1 litre bottle	A/R
97	GZS1486	HYDROLASTIC FLUID, 5 litre can	A/R
98	BHYL001	GASKET SEALANT, 'Hylomar', 100g tube	A/R
99	HERMRED	GASKET SEALANT, 'Red Hermetite', 50g tube	A/R
100	GTP1	EXHAUST JOINTING PASTE, 140g tube	A/R
101	WC014	EXHAUST SEALANT, 'Dum-Dum', 400g can	A/R

Bodywork Consumables
Somerford Mini is proud to be able to offer the Dinitrol range to protect your cherished Mini from the dreaded rust threat. Acclaimed as 'Best in Test' by Practical Classics magazine, Dinitrol 3125 cavity wax and 4941 underbody wax are used by the UK armed forces and protect their vehicles (with intact underbody paint) in up to 1.5 metres of salt water!
The Dinitrol Complete Rust-Proofing Kit includes a 500ml can of Rust Converter, two 1 litre cans of 3125 Cavity Wax, three 1 litre cans of 4941 Underbody Wax, the Professional Wax Injection Kit, a 10mm drill and a car set of 10mm body plugs - everything you need to give your Mini the ultimate rust protection.
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
102	WC001	RUST CONVERTER, 'Dinitrol', 1 litre can	A/R
103	WC002	CAVITY WAX, 'Dinitrol 3125 Corromax', 1 litre can	A/R
104	WC003	RUST PROOFING KIT, 'Dinitrol', complete	A/R
105	WC004	UNBERBODY WAX, 'Dinitrol 4941', 1 litre can	A/R
106	WC005	'SMOOTHRITE' PAINT, brush-on, black, 500ml can	A/R
107	WC006	'HAMMERITE' PAINT, brush-on, black, 500ml can	A/R
108	WC007	SEAM SEALANT, brush-on, 1 kg can	A/R
109	WC013	SEAM SEALANT, polyurethane, 300ml cartridge	A/R
110	WC008	ZINC-RICH SEALANT, weld-through, 400ml aerosol	A/R
111	WC009	WINDSCREEN SEALANT, 300ml cartridge	A/R
