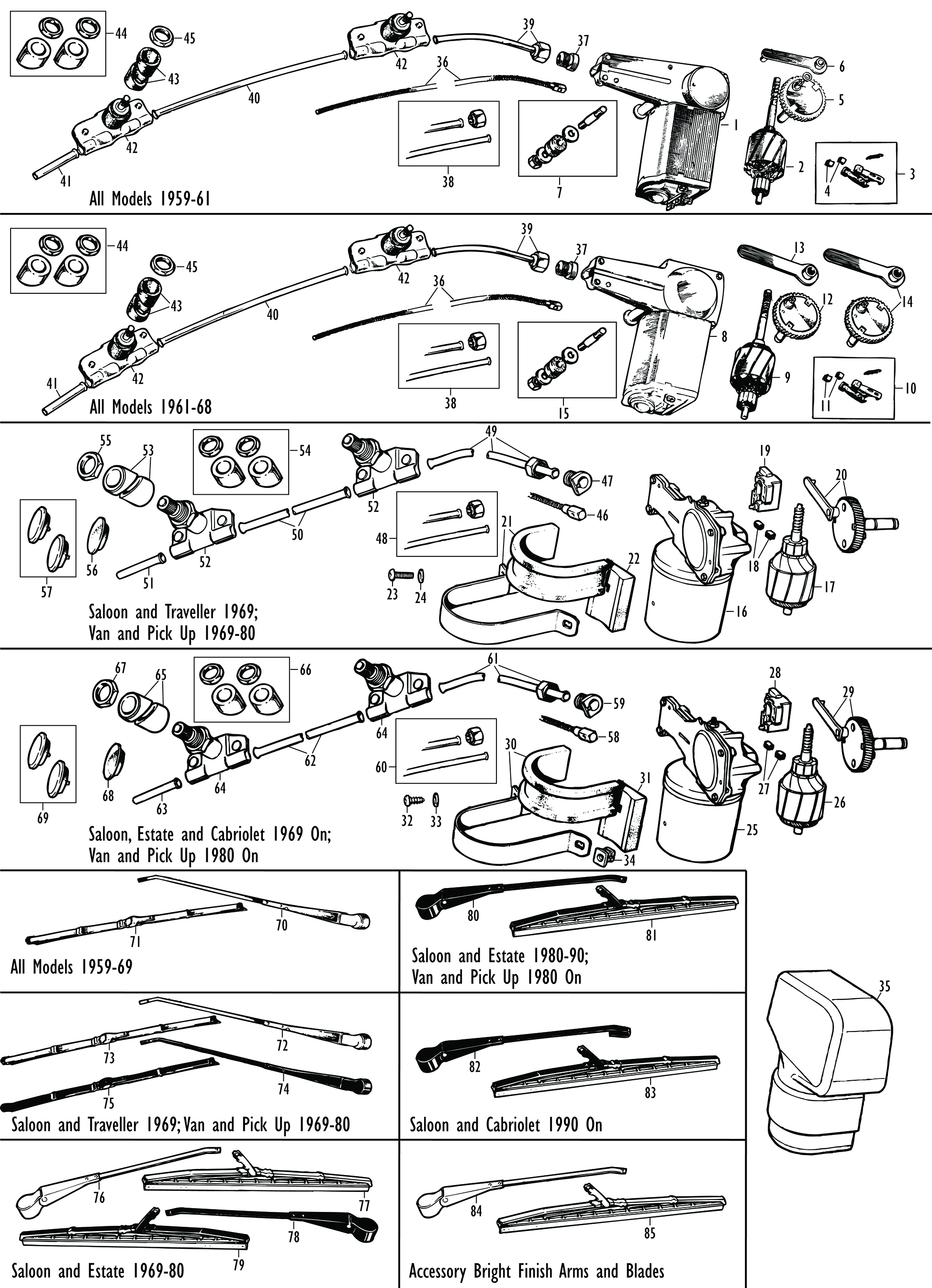

Windscreen Wiper Motor
Lucas Type DR2
All Models, 130˚ Angle of Wipe, 1959-61
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
1	14A5892	WIPER MOTOR, reconditioned, exchange	1	Does not include shaft and gear.
2	17H5255	ARMATURE	1
3	17H5396	BRUSH GEAR ASSEMBLY	1	Includes brushes.
4	508170	CARBON BRUSHES, pair	1
5	47H5155	SHAFT AND GEAR	1	130˚ angle of wipe.
6	37H5470	LINK	1
7	17H5431	MOUNTING KIT	3	Includes stud, nut, grommet and two washers.

Lucas Type DR3A
All Models, 130˚ Angle of Wipe, 1961-63
All Models, 120˚ Angle of Wipe, 1964-68
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
8	GXE7714	WIPER MOTOR, reconditioned, exchange	1	Does not include shaft and gear.
9	511003	ARMATURE	1
10	17H5396	BRUSH GEAR ASSEMBLY	1	Includes brushes.
11	508170	CARBON BRUSHES, pair	1
12	57H5586	SHAFT AND GEAR	1	130˚ angle of wipe.
13	17H2458	LINK	1	Use with 57H5586 shaft and gear.
14	37H7296	SHAFT GEAR AND LINK	1	120˚ angle of wipe.
15	17H5431	MOUNTING KIT	3	Includes stud, nut, grommet and two washers.

Lucas Type 14W With Single or Two Speed Operation
MkII Saloon and Traveller, 1969
Van and Pick Up, 1969-80
There were many versions of this motor, all interchangeable. However, when overhauling a 14W motor, the brush gear and parking switches are specific to early and late versions. The motor you have may be identified by the suffix to the Lucas 5 digit part number stamped on the casing: A or B indicates an early type motor, whereas any other suffix or no suffix at all indicates a late type.

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
16	GXE7708	WIPER MOTOR, new	1	Does not include shaft and gear.
	GEU7708	WIPER MOTOR, reconditioned, exchange	1	Does not include shaft and gear.
17	37H8222	ARMATURE	1
18	37H2733	BRUSH GEAR AND PLATE ASSY.	1	Use on A or B suffix motors.
	RTC198A	BRUSH GEAR AND PLATE ASSY.	1	Use on all other motors.
19	517645A	PARKING SWITCH, screw-on	1	Use on A or B suffix motors.
	520160A	PARKING SWITCH, clip-on	1	Use on all other motors.
	520160KIT	MULTIPLUG-TWIN SPEED WIPER MOTOR	1
20	37H2737	SHAFT GEAR AND LINK	1	RHD.
	37H2736	SHAFT GEAR AND LINK	1	LHD.
21	37H4836	STRAP AND SLEEVE, motor securing	1
	37H4836SS	STRAP AND SLEEVE, motor securing	1	Stainless steel alternative.
22	13H4718	PAD, motor mounting	1
23	PMZ410	SCREW, strap to body	2
24	LWZ204	WASHER, locking	2

Lucas Type 14W With Single or Two Speed Operation
MkIII Onwards Saloon, Cabriolet and Clubman Estate, 1969 On
Van and Pick Up, 1980 On
Please see notes on identifying early and late 14W motors in the previous section.

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
25	GEU7708	WIPER MOTOR, reconditioned, exchange	1	Does not include shaft and gear.
	GXE7708	WIPER MOTOR-2 SPEED	1
26	37H8222	ARMATURE	1
27	37H2733	BRUSH GEAR AND PLATE ASSY.	1	Use on A or B suffix motors.
	RTC198A	BRUSH GEAR AND PLATE ASSY.	1	Use on all other motors.
28	517645A	PARKING SWITCH, screw-on	1	Use on A or B suffix motors.
	520160A	PARKING SWITCH, clip-on	1	Use on all other motors.
	520160KIT	MULTIPLUG-TWIN SPEED WIPER MOTOR	1
29	608092A	SHAFT GEAR AND LINK	1
30	37H4836	STRAP AND SLEEVE, motor securing	1
	37H4836SS	STRAP AND SLEEVE, motor securing	1	Stainless steel alternative.
31	13H4718	PAD, motor mounting	1	RHD.
	CZH1401	PAD, motor mounting	1	LHD.
32	AB612051	SCREW, self tapping, strap to body	2
33	PWZ104	WASHER, plain	2
34	DLP10004	NUT, lokut	2
35	DLH10006	COVER, wiper motor	1	RHD, 1981 on.
	DLH10002	COVER, wiper motor	1	LHD, 1981 on.

Wiper Rack and Wheelboxes
For DR2 and DR3A Wiper Motors
All Models, 1959-68
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
36	57H5090	CROSSHEAD AND RACK	1
37	37H5282	FERRULE, rack to motor	1
38	AAU1909A	RACK TUBE AND NUT KIT	A/R	Cut and flare to correct lengths.
39	14A6846	RACK TUBE AND NUT, motor to wheelbox	1
40	14A6847	RACK TUBE, wheelbox to wheelbox	1
41	13H5412	RACK TUBE, second wheelbox extension	1
42	37H6100	WHEELBOX ASSEMBLY, 22 tooth gear	2
43	37H6042	BUSH KIT, standard black finish	2	Includes under-scuttle bush and black bezel.
44	37H6042C	BEZEL AND NUT KIT, alternative chromed finish	1	Includes chromed bezels and nuts, plus bezel gaskets.
	37H6042C6	WIPER WHEELBOX BEZELS- CHROME PAIR with 6 sided nuts	1
45	37H6316	NUT, chromed, 6 sided	2

For 14W Wiper Motor
MkII Saloon and Traveller, 1969
Van and Pick Up, 1969-80
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
46	57H5090	CROSSHEAD AND RACK	1
47	37H3694	FERRULE, rack to motor	1
48	AAU1909A	RACK TUBE AND NUT KIT	A/R	Cut and flare to correct lengths.
49	13H4521	RACK TUBE AND NUT, motor to wheelbox	1
50	13H4522	RACK TUBE, wheelbox to wheelbox	1
51	13H5412	RACK TUBE, second wheelbox extension	1
52	37H7200	WHEELBOX ASSEMBLY, 32 tooth gear	2
53	37H7201	BUSH KIT, standard black finish	2	Includes under-scuttle bush and black bezel.
54	37H6042C	BEZEL AND NUT KIT, alternative chromed finish	1	Includes chromed bezels and nuts, plus bezel gaskets.
55	37H7738	NUT, chromed, 8 sided	2
56	14A7091	PLUG, wiper spindle holes, 15/16" dia.	2	Late 1969 on; use to seal unused holes in windscreen panel.
57	CWB001	PLUGS, pair, wiper spindle holes, chromed finish	1	Aftermarket alternative.

For 14W Wiper Motor
MkIII Onwards Saloon, Cabriolet and Clubman Estate, 1969 On
Van and Pick Up, 1980 On
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
58	508182A	CROSSHEAD AND RACK, with ferrule	1	MkIII onwards Saloon and Clubman Estate, 1969 on.
59	37H3694	FERRULE, rack to motor	1
60	AAU1909A	RACK TUBE AND NUT KIT	A/R	Cut and flare to correct lengths.
61	CZH770	RACK TUBE AND NUT, motor to wheelbox	1	RHD.
	CZH771	RACK TUBE AND NUT, motor to wheelbox	1	LHD, 1969-89.
	DKJ10004	RACK TUBE AND NUT, motor to wheelbox	1	LHD, 1989 on.
62	CZH769	RACK TUBE, wheelbox to wheelbox	1
63	13H5412	RACK TUBE, second wheelbox extension	1
64	37H7200	WHEELBOX ASSEMBLY, 32 tooth gear	2
65	37H7201	BUSH KIT, standard black finish	2	Includes under-scuttle bush and black bezel.
66	37H6042C	BEZEL AND NUT KIT, alternative chromed finish	1	Includes chromed bezels and nuts, plus bezel gaskets.
67	37H7738	NUT, chromed, 8 sided	2
68	14A7091	PLUG, wiper spindle holes, 15/16" dia.	2	Use to seal unused holes in windscreen panel.
69	CWB001	PLUGS, pair, wiper spindle holes, chromed finish	1	Aftermarket alternative.

Wiper Arms and Blades
For DR2 and DR3A Wiper Motors
All Models, 1959-68
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
70	37H4952	WIPER ARM, bright finish, for 10" blade	2	RHD; RH parking.
	37H5932	WIPER ARM, bright finish, for 10" blade	2	LHD; LH parking.
71	GWB219	WIPER BLADE, bright finish, 10"	2

For 14W Wiper Motor
MkII Saloon and Traveller, 1969
Van and Pick Up, 1969-80
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
72	13H5626	WIPER ARM, bright finish, for 10" blade	2	RHD; RH parking. 1969-80.
	13H5629	WIPER ARM, bright finish, for 10" blade	2	LHD; LH parking. 1969-80.
73	GWB219	WIPER BLADE, bright finish, 10"	2	1969-80.
74	CZH4173	WIPER ARM, black finish, for 11" blade	2	RHD; RH parking. 1980 on.
	CZH4331	WIPER ARM, black finish, for 11" blade	2	LHD; LH parking. 1980 on.
75	GWB811	WIPER BLADE, black finish, 11"	2	1980 on.

For 14W Wiper Motor
MkIII and MkIV Saloon and Clubman Estate, 1969-80
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
76	13H5629	WIPER ARM, bright finish, for 10" blade	2	RHD; LH parking.
	13H5626	WIPER ARM, bright finish, for 10" blade	2	LHD; RH parking.
77	GWB219	WIPER BLADE, bright finish, 10"	2
78	CZH4173	WIPER ARM, black finish, for 11" blade	2	LHD; RH parking. For certain European markets.
79	GWB811	WIPER BLADE, black finish, 11"	2	For certain European markets.

For 14W Wiper Motor
MkIV Saloon and Clubman Estate, 1980-90
Van and Pick Up, 1980 On
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
80	CZH4331	WIPER ARM, black finish, for 11" blade	2	RHD; LH parking.
	CZH4173	WIPER ARM, black finish, for 11" blade	2	LHD; RH parking.
81	GWB811	WIPER BLADE, black finish, 11"	2

For 14W Wiper Motor
Saloon and Cabriolet, 1990 On
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
82	DKB101480	WIPER ARM, black finish, for hook fitting blade	2	RHD; LH parking.
	DKB101490	WIPER ARM, black finish, for hook fitting blade	2	LHD; RH parking.
83	GWB377	WIPER BLADE, black finish, hook fitting	2

Accessory Bright Finish Wiper Arms and Blades
Designed primarily as chrome/stainless replacements for later model black wiper arms and blades, in fact these will fit all Minis. Note that the arms are specifically designed to hold 11" blades.
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
84	13H5630	WIPER ARM, bright finish	2	LH parking.
	13H5627	WIPER ARM, bright finish	2	RH parking.
85	GWB220	WIPER BLADE, bright finish, 11"	2
