Brake Pipes, Nuts and Clips

Return back to contents

Brake pipe is available in easy-to-shape, non-corroding copper or the superior, durable cunifer material. A range of tube nuts (brake pipe end fittings) are also offered, both in the imperial sizes usually encountered on Minis and also in metric sizes for the few metric unions introduced from 1980 onwards (e.g. the brake master cylinder).

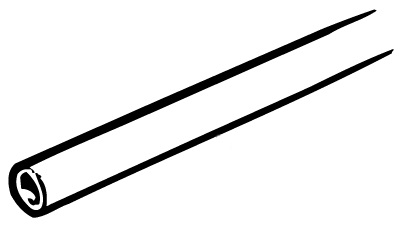

Brake Pipes (per metre)
Part No Description Remarks
CNF316 Brake Pipe, Cunifer Per Metre
HCP316 Brake Pipe, Copper Per Metre

Imperial Male Tube Nuts
Part No Nut Type Thread Material Pipe Bore
TM606031 Male 3/8 UNF Steel 3/16"
HU1 Male 3/8 UNF Brass 3/16"
BHA4706 Male 7/16 UNF Steel 3/16"
HU7 Male 7/16 UNF Brass 3/16"

Imperial Female Tube Nuts
Part No Nut Type Thread Material Pipe Bore
TN606031 Female 3/8 UNF Steel 3/16"
HU1A Female 3/8 UNF Brass 3/16"

Metric Tube Nuts
Part No Nut Type Thread Material Pipe Bore
TM110051 Male M10 Steel 3/16"
HU2 Male M10 Brass 3/16"
TM112051 Male M12 Steel 3/16"
HU9 Male M12 Brass 3/16"

Brake Pipe Clips
Part No Clip Type Material Pipe Dia.

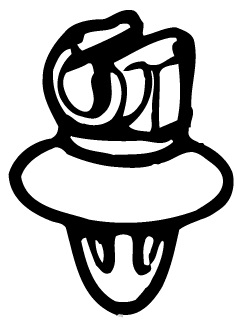

GHF1192 Single Pipe Clip Nylon 3/16"

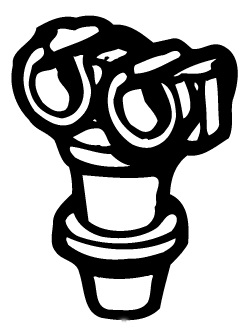

CAC402 Double Pipe Clip Nylon 3/16"

Bleed Nipples
Part No Thread Applications
513118 1/4 UNF Front drums (single cyl. type), rear drums (not 9/16” wheel cyl.).
3H2428 3/8 UNF Front drums (not single cyl. type), front discs, rear drums (9/16” wheel cyl. only), clutch slave cyl.
BAU1790 M7 Metro ventilated front discs.
