Fuel tanks - carburetter models

Part No: LWZ204
  In Stock
WASHER-SPRING, 1/4''
Required Quantity: 1
£0.22 inc VAT
£0.18 ex VAT
Part No: LWZ205
  In Stock
WASHER-SPRING, 5/16''
Required Quantity: 4
£0.37 inc VAT
£0.31 ex VAT
Part No: ALA7905
  Awaiting Stock - On Order

£17.64 inc VAT
£14.70 ex VAT
Part No: 21A1329
  No Longer Available
USE: 21A1330
Required Quantity: 1
Includes neoprene seating strip.
£0.00 inc VAT
£0.00 ex VAT
Part No: 21A1330
  In Stock
CHANNEL-RH FUEL TANK SUPPORT
Required Quantity: 1
£16.87 inc VAT
£14.06 ex VAT
Part No: 21A1335
  In Stock

£9.00 inc VAT
£7.50 ex VAT
Part No: PTZ803
  No Longer Available
USE: AB608031
Required Quantity: 12
8 for channel, 4 for bracket.
£0.00 inc VAT
£0.00 ex VAT
Part No: 2A2231
  In Stock
£7.24 inc VAT
£6.03 ex VAT
Part No: SH605051
  In Stock
SET SCREW- 5/16 UNF x 5/8''
Required Quantity: 2
£0.36 inc VAT
£0.30 ex VAT
Part No: FNZ105
  In Stock
NUT - 5/16" UNF
Required Quantity: 4
£0.35 inc VAT
£0.29 ex VAT
Part No: PWZ105
  In Stock
WASHER - PLAIN - 5/16"
Required Quantity: 2
£0.20 inc VAT
£0.17 ex VAT
Part No: LNZ105
  In Stock
NUT-AEROTIGHT 5/16'' UNF
Required Quantity: 1
£0.84 inc VAT
£0.70 ex VAT
Part No: SH605081
  In Stock
SET SCREW-5/16 UNF x 1''
Required Quantity: 1
£0.35 inc VAT
£0.29 ex VAT
Part No: SH605061
  In Stock
SET SCREW-5/16'' UNF x 3/4''
Required Quantity: 1
£0.41 inc VAT
£0.34 ex VAT
Part No: 53K3721
  No Longer Available
USE: PWZ205 AND LWZ505
Required Quantity: 2
£0.00 inc VAT
£0.00 ex VAT
Part No: PTZ602
  No Longer Available
USE: AB606021
Required Quantity: 6
£0.00 inc VAT
£0.00 ex VAT
Part No: ARA967
  In Stock
£0.29 inc VAT
£0.24 ex VAT
Part No: 708653
  In Stock

£23.50 inc VAT
£19.58 ex VAT
Part No: 13H7583
  No Longer Available
USE:SH605201
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: 14A7057
  In Stock
£4.60 inc VAT
£3.83 ex VAT
Part No: 14A7057E
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 18G8601A
  No Longer Available
USE: WLD100350
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: 21A1333
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 21A1401
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 21A1468
  No Longer Available
FUEL TANK-RH-10 GALLONS
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: 21A1469
  No Longer Available
FUEL TANK-RH-13 1/4 GALLONS
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: 21A2109
  In Stock
£3.76 inc VAT
£3.13 ex VAT
Part No: 21A2167
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 21A2171
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 21A2172
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 21A2181
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 21A2183
  Awaiting Stock - On Order

£351.79 inc VAT
£293.16 ex VAT
Part No: 21A2183P
  Available to Customer Order
£344.52 inc VAT
£287.10 ex VAT
Part No: 21A2188
  In Stock
£10.74 inc VAT
£8.95 ex VAT
Part No: 21A248
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 21A2793
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 21A2795
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 21A2838
  In Stock
£12.10 inc VAT
£10.08 ex VAT
Part No: 21A291
  In Stock
£270.07 inc VAT
£225.06 ex VAT
Part No: 21A291P
  In Stock
£114.67 inc VAT
£95.56 ex VAT
Part No: 21A303
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 21A304
  In Stock
£1.19 inc VAT
£0.99 ex VAT
Part No: 21A305
  In Stock
£0.71 inc VAT
£0.59 ex VAT
Part No: 21A352
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 21A36712
  In Stock
£11.22 inc VAT
£9.35 ex VAT
Part No: 21A409
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 21A415
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 21A512
  No Longer Available
USE: WLD100350
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: 2A2069
  In Stock
£2.56 inc VAT
£2.13 ex VAT
Part No: 2A2088
  In Stock
£0.50 inc VAT
£0.42 ex VAT
Part No: 2A2163
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 2A2164
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 2A2226
  In Stock
£6.66 inc VAT
£5.55 ex VAT
Part No: 346071A
  In Stock
£0.95 inc VAT
£0.79 ex VAT
Part No: 53K165
  In Stock
SCREW - 8/32" x 1/2" UNC
Required Quantity: 6
£0.58 inc VAT
£0.48 ex VAT
Part No: 88G482
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 8G654
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 8G702
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: AAU8340
  In Stock
£25.54 inc VAT
£21.28 ex VAT
Part No: ARA1160
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: ARA144
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: ARA1501
  In Stock
£2.87 inc VAT
£2.39 ex VAT
Part No: ARA1502
  In Stock
£1.26 inc VAT
£1.05 ex VAT
Part No: ARA261
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: ARA365
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: ARA959
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: ARH672
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: ARP1043
  In Stock
£301.36 inc VAT
£251.13 ex VAT
Part No: ARP1044
  Awaiting Stock - On Order

£327.12 inc VAT
£272.60 ex VAT
Part No: ARP1063
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: BHH175
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: BHH178
  Available to Customer Order
£19.32 inc VAT
£16.10 ex VAT
Part No: FAM3135
  In Stock
SEAL-FUEL TANK TO BODY-SALOON
Required Quantity: 1

£3.54 inc VAT
£2.95 ex VAT
Part No: FAM9545
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: FAM9548
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: GSS154A
  In Stock

£13.38 inc VAT
£11.15 ex VAT
Part No: GSS212A
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: GUG705711
  In Stock
£1.92 inc VAT
£1.60 ex VAT
Part No: NAM3927
  Available to Customer Order
£11.69 inc VAT
£9.74 ex VAT
Part No: PTZ1406
  In Stock
£0.25 inc VAT
£0.21 ex VAT
Part No: PTZ1410
  In Stock
£0.40 inc VAT
£0.33 ex VAT
Part No: RFR217
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: SH605161
  In Stock
SET SCREW-5/16 UNF x 2''
Required Quantity: 1
£0.65 inc VAT
£0.54 ex VAT
Part No: VTK001
  In Stock
£7.14 inc VAT
£5.95 ex VAT
Part No: WFE10093
  No Longer Available
USE: WFE10420
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: WFE10420
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: WJX10010
  In Stock
PROTECTOR-FUEL TANK-'92-'00
Required Quantity: 1

£19.80 inc VAT
£16.50 ex VAT
Part No: WLD100350
  Currently Unavailable
£14.29 inc VAT
£11.91 ex VAT
Part No: WZM10001
  In Stock
£1.44 inc VAT
£1.20 ex VAT
Part No: XNB10007
  In Stock
£26.29 inc VAT
£21.91 ex VAT
Part No: AAU8340FK
  In Stock
£4.74 inc VAT
£3.95 ex VAT
Part No: 21A2183FK
  In Stock
FITTING KIT- RH FUEL TANK
Required Quantity: 1
£69.76 inc VAT
£58.13 ex VAT

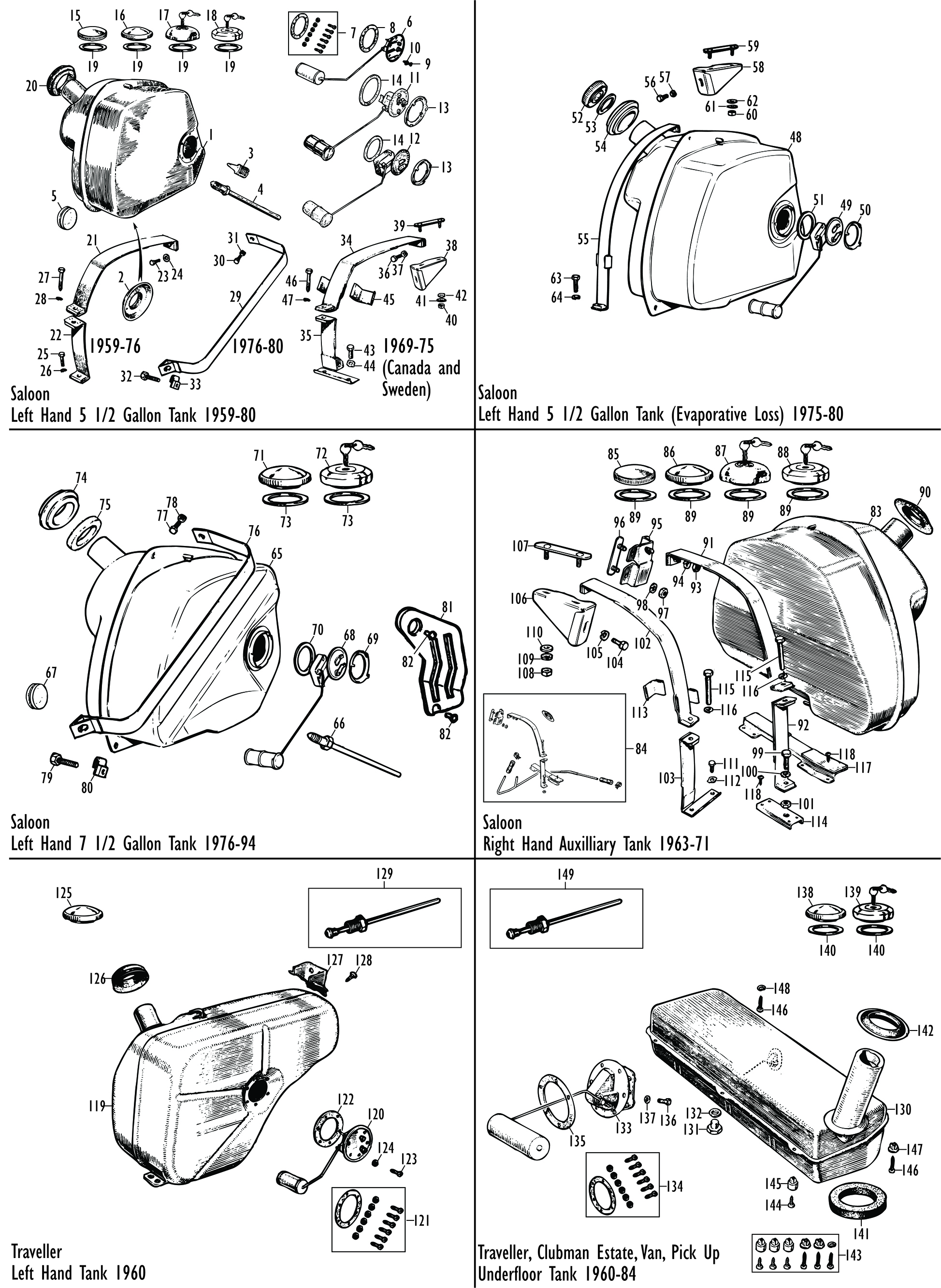

Saloon Left Hand Tanks
Left Hand 5 1/2 Gallon Fuel Tank
Saloons, 1959-80; Not Canada and Sweden, 1976-80
At time of writing (2006) new 5 1/2 gallon fuel tanks have not been available for many years.  There is however some demand for them, and it is not therefore inconceivable that the situation might change in the future; please contact us to check on availability.  The 7 1/2 gallon tank fitted from 1976/1980 onwards may easily be fitted as a replacement for 1964-80 tanks with locking ring type sender units, but some boot space will be lost as a result.
Ill. No. Part No. Description Qty. Rqd. Remarks
1 ARA365 FUEL TANK ASS'Y, left hand, 5 1/2 gallons 1 Austin and Morris, 1959-64; for 'screw-on' sender unit.
  ARA144 FUEL TANK ASS'Y, left hand, 5 1/2 gallons 1 Riley and Wolseley, 1961-64; for 'screw-on' sender unit.
  ARP1044 FUEL TANK ASS'Y, left hand, 5 1/2 gallons 1 Austin and Morris, 1964-80; for 'locking ring' sender unit.
  ARA261 FUEL TANK ASS'Y, left hand, 5 1/2 gallons 1 Riley and Wolseley, 1964-69; for 'locking ring' sender unit.
2 ARA1160 SEAL, dust, rubber 1 1960-69.
3 21A352 PLUG, fuel tank drain 1 Early style; if fitted.
4 21A1401 PLUG, screwed, fuel tank drain 1 Later style; if fitted.
5 RFR217 PLUG, blanking, drain hole in floor 1 If fitted.
6 2A2163 SENDER UNIT, fuel gauge, screw-in type 1 1959-64.
7 AAU8340FK SENDER UNIT FITTING KIT 1 1959-64; includes gasket, screws and washers.
8 GUG705711 GASKET, sender unit to tank 1 1959-64.
9 53K165 SCREW, sender unit to tank 6 1959-64.
10 2A2088 WASHER, copper 6 1959-64.
11 ARA959 SENDER UNIT, fuel gauge, locking ring type 1 1964; models without voltage stabilizer.
12 XNB10007 SENDER UNIT, fuel gauge, locking ring type 1 1964-80; models with voltage stabilizer.
13 ARA1501 RING, locking sender unit to tank 1 1964-80.
14 ARA1502 SEAL, sender unit to tank 1 1964-80.
15 2A2164 FILLER CAP, non-ventilated, primed finish 1 Paint body colour; basic trim models only, 1959-84 approx.
16 8G702 FILLER CAP, non-ventilated, stainless finish 1 1959-69; all other models.
  WLD100350 FILLER CAP, non-ventilated, chrome finish 1 1969-80; alternative for earlier models.
17 708653 FILLER CAP, locking, ventilated, chrome finish 1 1959-69; Wilmot Breeden accessory type.
18 GSS154A FILLER CAP, locking, ventilated, stainless finish 1 1969-80; Unipart and Rover type.
19 21A2109 SEAL, filler cap 1 Fits most genuine filler caps.
20 14A7057 GROMMET, filler neck to back panel 1
21 2A2226 STRAP, tank retaining, upper 1 1959-76.
22 2A2231 STRAP, tank retaining, lower 1 1959-76.
23 SH605061 SCREW, upper strap to seat brace 1 1959-76.
24 LWZ205 WASHER, locking 1 1959-76.
25 SH605061 SCREW, lower strap to floor 1 1959-76.
26 LWZ205 WASHER, locking 1 1959-76.
27 SH605161 SCREW, upper strap to lower strap 1 1959-76.
28 LWZ205 WASHER, locking 1 1959-76.
29 21A2793 STRAP, tank retaining, diagonal 1 1976-80.
30 SH605061 SCREW, strap to seat brace 1 1976-80.
31 LWZ205 WASHER, locking 1 1976-80.
32 13H7583 BOLT, strap to floor bracket 1 1976-80.
33 346071A NUT RETAINER 1 1976-80.
34 21A2167 STRAP, tank retaining, upper 1 1969-75, Canada and Sweden.
35 21A2172 STRAP, tank retaining, lower 1 1969-75, Canada and Sweden.
36 SH605061 SCREW, upper strap to parcel shelf bracket 1 1969-75, Canada and Sweden.
37 LWZ205 WASHER, locking 1 1969-75, Canada and Sweden.
38 21A2181 BRACKET, upper strap to parcel shelf 1 1969-75, Canada and Sweden.
39 21A2188 STUD PLATE, bracket to parcel shelf 1 1969-75, Canada and Sweden.
40 FNZ105 NUT 2 1969-75, Canada and Sweden.
41 53K3721 WASHER, tab 2 1969-75, Canada and Sweden.
42 PWZ105 WASHER, plain 2 1969-75, Canada and Sweden.
43 SH605051 SCREW, lower strap to floor 2 1969-75, Canada and Sweden.
44 53K3721 WASHER, tab 2 1969-75, Canada and Sweden.
45 21A2171 CLIP, fuel tank vent pipe 1 1969-75, Canada and Sweden.
46 SH605161 SCREW, upper strap to lower strap 1 1969-75, Canada and Sweden.
47 LWZ205 WASHER, locking 1 1969-75, Canada and Sweden.

Left Hand 5 1/2 Gallon Fuel Tank
With Evaporative Loss Control
Saloons, Canada and Sweden, 1975-80
Ill. No. Part No. Description Qty. Rqd. Remarks
48 ARP1063 FUEL TANK ASS'Y, left hand, 5 1/2 gallons 1 Canada, 1975-78; Sweden, 1975-80.
  FAM9548 FUEL TANK ASS'Y, left hand, 5 1/2 gallons 1 Canada, 1978-80.
49 XNB10007 SENDER UNIT, fuel gauge, locking ring type 1
50 ARA1501 RING, locking sender unit to tank 1
51 ARA1502 SEAL, sender unit to tank 1
52 BHH178 FILLER CAP, non-ventilated, stainless steel 1 Canada, 1975-78; Sweden, 1975-80.
  FAM9545 FILLER CAP, non-ventilated, stainless steel 1 Canada, 1978-80.
53 BHH175 SEAL, filler cap 1 Included in filler caps.
54 14A7057 GROMMET, filler neck to back panel 1
55 21A2795 STRAP, tank retaining 1
56 SH605061 SCREW, strap to parcel shelf bracket 1
57 LWZ205 WASHER, locking 1
58 21A2181 BRACKET, strap to parcel shelf 1
59 21A2188 STUD PLATE, bracket to parcel shelf 1
60 FNZ105 NUT 2
61 53K3721 WASHER, tab 2
62 PWZ105 WASHER, plain 2
63 SH605051 SCREW, strap to floor 1
64 53K3721 WASHER, tab 1

Left Hand 7 1/2 Gallon Fuel Tank
Saloons, 1976-80 (Selected Models); 1980-94 (All Models)
Ill. No. Part No. Description Qty. Rqd. Remarks
65 ARP1043 FUEL TANK ASS'Y, left hand, 7 1/2 gallons 1 848,  998, 1098 and 1275cc (not Cooper), leaded fuel; 1976-90.
  WFE10093 FUEL TANK ASS'Y, left hand, 7 1/2 gallons 1 998 and 1275cc (Cooper), unleaded fuel; 1989-92.  Restricted filler neck.
  WFE10420 FUEL TANK ASS'Y, left hand, 7 1/2 gallons 1 1275cc (not Cooper), unleaded fuel; 1992-94. Restricted filler neck.
66 21A1401 PLUG, screwed, fuel tank drain 1 If fitted.
67 RFR217 PLUG, blanking, drain hole in floor 1 If fitted.
68 XNB10007 SENDER UNIT, fuel gauge, locking ring type 1
69 ARA1501 RING, locking sender unit to tank 1
70 ARA1502 SEAL, sender unit to tank 1
71 WLD100350 FILLER CAP, non-ventilated, chrome finish 1
  NAM3927 FILLER CAP, ventilated, black finish 1
72 GSS154A FILLER CAP, locking, ventilated, stainless finish 1
  GSS212A FILLER CAP, locking, non-ventilated, black finish 1
73 21A2109 SEAL, filler cap 1 Fits most genuine filler caps.
74 14A7057 GROMMET, filler neck to back panel 1
75 FAM3135 SEAL, tank to body 1
76 21A2838 STRAP, tank retaining, diagonal 1
77 SH605061 SCREW, strap to seat brace 1
78 LWZ205 WASHER, locking 1
79 13H7583 SCREW, strap to rear floor bracket 1
80 346071A NUT RETAINER, J type 1
81 WJX10010 PROTECTOR, fuel tank 1 1992-94.
82 WZM10001 FASTENER, protector 2 1992-94.

Saloon Right Hand Tanks
Right Hand Auxiliary Fuel Tank
Cooper S, 1963-66 (optional), 1966-71 (standard)
Ill. No. Part No. Description Qty. Rqd. Remarks
83 21A2183 FUEL TANK ASS'Y, right hand, 5 1/2 gallons 1 1071, 1275 and 970cc standard fitment; high quality reproduction.
  21A2183P FUEL TANK ASS'Y, right hand, 5 1/2 gallons 1 1071, 1275 and 970cc standard fitment; budget reproduction.
  21A1468 FUEL TANK ASS'Y, right hand, 10 gallons 1 970cc, optional fitment.
  21A1469 FUEL TANK ASS'Y, right hand, 13 1/4 gallons 1 1275cc, optional fitment.
84 21A2183FK FUEL TANK FITTING KIT, right hand tank 1 Includes brackets, fixings and pipes.
85 8G702 FILLER CAP, non-ventilated, stainless finish 1 1963-69.
86 WLD100350 FILLER CAP, non-ventilated, chrome finish 1 1969-71; alternative for earlier models.
87 708653 FILLER CAP, locking, ventilated, chrome finish 1 1963-69; Wilmot Breeden accessory type.
88 GSS154A FILLER CAP, locking, ventilated, stainless finish 1 1969-71; Unipart and Rover type.
89 21A2109 SEAL, filler cap 1 Fits most genuine filler caps.
90 14A7057 GROMMET, filler neck to back panel 1
91 2A2226 STRAP, tank retaining, upper 1
92 2A2231 STRAP, tank retaining, lower 1
93 FNZ105 NUT, upper strap to anchor bracket 1
94 LWZ205 WASHER, locking 1
95 ALA7905 ANCHOR BRACKET, upper strap 1 Includes stud plates, nuts and washers.
96 21A1333 STUD PLATE, anchor bracket to seat brace 2
97 FNZ105 NUT 4
98 LWZ205 WASHER, locking 4
99 SH605081 SCREW, lower strap to floor 1
100 PWZ105 WASHER, plain 1
101 LNZ105 NUT, nyloc 1
102 21A2167 STRAP, tank retaining, upper 1 1969 Canada and 1969-71 Sweden.
103 21A2172 STRAP, tank retaining, lower 1 1969 Canada and 1969-71 Sweden.
104 SH605061 SCREW, upper strap to parcel shelf bracket 1 1969 Canada and 1969-71 Sweden.
105 LWZ205 WASHER, locking 1 1969 Canada and 1969-71 Sweden.
106 21A2181 BRACKET, upper strap to parcel shelf 1 1969 Canada and 1969-71 Sweden.
107 21A2188 STUD PLATE, bracket to parcel shelf 1 1969 Canada and 1969-71 Sweden.
108 FNZ105 NUT 2 1969 Canada and 1969-71 Sweden.
109 53K3721 WASHER, tab 2 1969 Canada and 1969-71 Sweden.
110 PWZ105 WASHER, plain 2 1969 Canada and 1969-71 Sweden.
111 SH605051 SCREW, lower strap to floor 2 1969 Canada and 1969-71 Sweden.
112 53K3721 WASHER, tab 2 1969 Canada and 1969-71 Sweden.
113 21A2171 CLIP, fuel tank vent pipe 1 1969 Canada and 1969-71 Sweden.
114 21A1335 BRACKET, reinforcement, lower strap to floor 1
115 SH605161 SCREW, upper strap to lower strap 1
116 LWZ205 WASHER, locking 1
117 21A1329 CHANNEL ASS'Y, tank support 1 Includes neoprene seating strip.
  21A1330 CHANNEL, tank support 1 Without neoprene seating strip.
118 PTZ803 SCREW, self tapping, channel and bracket to floor 12 8 for channel, 4 for bracket.

Estate, Van and Pick Up Tanks
Left Hand Fuel Tank
Traveller and Countryman, 1960
Ill. No. Part No. Description Qty. Rqd. Remarks
119 21A409 FUEL TANK ASSEMBLY 1
Note that the filler neck is much smaller on this tank than on tanks fitted to other Mini variants.  As a result, the filler caps and filler neck grommet are unique to this model and equivalent items from other Minis will not fit.

Ill. No. Part No. Description Qty. Rqd. Remarks
120 21A248 SENDER UNIT, fuel gauge, screw-in type 1
121 AAU8340FK SENDER UNIT FITTING KIT 1 Includes gasket, screw and washer.
122 GUG705711 GASKET, sender unit to tank 1
123 53K165 SCREW, sender unit to tank 6
124 2A2088 WASHER, copper 6
125 21A512 FILLER CAP, ventilated, primed finish 1 Paint body colour; basic trim models only.
  88G482 FILLER CAP, ventilated, chromed finish 1
126 14A7057E GROMMET, filler neck to body side 1
127 21A415 BRACKET, tank retaining, upper 1
128 PTZ602 SCREW, self tapping, tank securing 6
129 21A36712 PIPE ASS'Y, tank end, 6" repair section 1 All models; form pipe to contours required.
The copper repair pipe assembly 21A36712 comes complete with tank union nut and olive, as the genuine full length pipes do.  It is intended primarily for those who, in the process of replacing their fuel tank, have twisted off the end of the pipe with the (seized) tank union nut!  It can be connected to the remaining fuel pipe on the car with a short length of 1/4" int. dia. rubber fuel hose (part no. FH006, sold per metre).

Underfloor Fuel Tank
Traveller and Countryman, 1961 On; Clubman Estate, HL Estate, Van and Pick Up
Ill. No. Part No. Description Qty. Rqd. Remarks
130 21A291 FUEL TANK ASSEMBLY 1
  21A291P FUEL TANK ASSEMBLY 1 Non-genuine.
Periodically the non-genuine fuel tank 21A291P is supplied with a marginally shorter filler neck than standard.  This does not affect fitment of the tank to the car, but may affect the fitment of a locking fuel filler cap, for which slightly more clearance is required than for a non-locking cap.

Ill. No. Part No. Description Qty. Rqd. Remarks
131 ARH672 PLUG, screwed, fuel tank drain 1 If fitted.
132 ARA967 WASHER, sealing plug 1
133 21A303 SENDER UNIT, fuel gauge, screw-in type 1 Up to 1964; models without voltage stabilizer.
  AAU8340 SENDER UNIT, fuel gauge, screw-in type 1 1964 on; models with voltage stabilizer.
134 AAU8340FK SENDER UNIT FITTING KIT 1 Includes gasket, screws and washers.
135 GUG705711 GASKET, sender unit to tank 1
136 53K165 SCREW, sender unit to tank 6
137 2A2088 WASHER, copper 6
138 8G654 FILLER CAP, ventilated, primed finish 1 Paint body colour; basic trim Estates, plus Van and Pick up.
  18G8601A FILLER CAP, ventilated, chromed finish 1 1961-81.
  NAM3927 FILLER CAP, ventilated, black finish 1 1981-84.
139 GSS154A FILLER CAP, locking, ventilated, stainless finish 1
140 21A2109 SEAL, filler cap 1 Fits most genuine filler caps.
141 2A2069 SEAL, filler neck to floor 1
142 14A7057 GROMMET, filler neck to body side cowl 1
143 VTK001 FITTING KIT, underfloor fuel tank 1
144 PTZ1406 SCREW, self tapping, tank to rear valance 3 Included in fitting kit.
145 21A304 NUT, Lokut, large 3 Included in fitting kit.
146 PTZ1410 SCREW, self tapping, tank to rear floor channel 3 Included in fitting kit.
147 21A305 NUT, lokut, small 2 Included in fitting kit.
148 LWZ204 WASHER, locking 1 Included in fitting kit.
149 21A36712 PIPE ASS'Y, tank end, 6" repair section 1 All models; form pipe to contours required.
The copper repair pipe assembly 21A36712 comes complete with tank union nut and olive, as the genuine full length pipes do.  It is intended primarily for those who, in the process of replacing their fuel tank, have twisted off the end of the pipe with the (seized) tank union nut!  It can be connected to the remaining fuel pipe on the car with a short length of 1/4" int. dia. rubber fuel hose (part no. FH006, sold per metre).
View as:
Show items
Items 1 to 12 of 92 total
1 2 3 4 5 6 ...
Part No: 21A2183FK
  In Stock
£69.76 inc VAT
£58.13 ex VAT
Part No: AAU8340FK
  In Stock
£4.74 inc VAT
£3.95 ex VAT
Part No: XNB10007
  In Stock
£26.29 inc VAT
£21.91 ex VAT
Part No: WZM10001
  In Stock
£1.44 inc VAT
£1.20 ex VAT
Part No: WLD100350
  Currently Unavailable
£14.29 inc VAT
£11.91 ex VAT
Part No: WJX10010
  In Stock

£19.80 inc VAT
£16.50 ex VAT
Part No: WFE10420
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: WFE10093
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: VTK001
  In Stock
£7.14 inc VAT
£5.95 ex VAT
Part No: SH605161
  In Stock
£0.65 inc VAT
£0.54 ex VAT
Part No: RFR217
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: PTZ1410
  In Stock
£0.40 inc VAT
£0.33 ex VAT
Add to cart
Items 1 to 12 of 92 total
1 2 3 4 5 6 ...
Request a free catalogue
