Heater hoses, water control valves and cables 1959-88

Part No: LWZ204
  In Stock
WASHER-SPRING, 1/4''
Required Quantity: 2
£0.22 inc VAT
£0.18 ex VAT
Part No: WF702101
  No Longer Available
USE: LWZ403
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: FNZ104
  In Stock
NUT - 1/4" UNF
Required Quantity: 2
£0.35 inc VAT
£0.29 ex VAT
Part No: 34G3651
  In Stock
1 points earn (£0.01)
£1.80 inc VAT
£1.50 ex VAT
Part No: CAM5969
  In Stock
1 points earn (£0.01)
£2.22 inc VAT
£1.85 ex VAT
Part No: FNZ206
  No Longer Available
USE: NT606041
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: LWZ606
  In Stock
£0.16 inc VAT
£0.13 ex VAT
Part No: 53K1016
  In Stock
SET SCREW-8 UNC x 3/8
Required Quantity: 1
£0.50 inc VAT
£0.42 ex VAT
Part No: GHC507
  In Stock
£0.41 inc VAT
£0.34 ex VAT
Part No: GHC608
  In Stock
£0.53 inc VAT
£0.44 ex VAT
Part No: 13H6107
  In Stock
1 points earn (£0.01)
£2.34 inc VAT
£1.95 ex VAT
Part No: 88G221
  No Longer Available
USE: 88G221B
Required Quantity: 1
£0.00 ex VAT
Part No: HHK002
  In Stock
16 points earn (£0.16)
£20.11 inc VAT
£16.76 ex VAT
Part No: GRH1006M
  In Stock
3 points earn (£0.03)
£3.82 inc VAT
£3.18 ex VAT
Part No: HCS112
  In Stock
£0.79 inc VAT
£0.66 ex VAT
Part No: BMP366
  No Longer Available
USE: BMP367
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: HH58
  In Stock
HOSE-HEATER-5/8'' DIAMETER PER METRE- '88 ON
Required Quantity: As Required
3 points earn (£0.03)
£4.74 inc VAT
£3.95 ex VAT
Part No: PCP10006
  In Stock
REDUCER-HEATER HOSE 5/8" TO 1/2"
Required Quantity: As Required
7 points earn (£0.07)
£9.47 inc VAT
£7.89 ex VAT
Part No: 12A479
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 13H549
  Available to Customer Order
£0.00 inc VAT
£0.00 ex VAT
Part No: 12A345
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 13H548
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 88G601
  In Stock
16 points earn (£0.16)
£19.98 inc VAT
£16.65 ex VAT
Part No: ADU9102
  In Stock
14 points earn (£0.14)
£17.56 inc VAT
£14.63 ex VAT
Part No: 27H1193
  Available to Customer Order
1 points earn (£0.01)
£1.56 inc VAT
£1.30 ex VAT
Part No: 27H1968
  No Longer Available
USE: 14A9988
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: 27H2280
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 17H823
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 17H824
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 17H825
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 14A9988
  In Stock
11 points earn (£0.11)
£14.00 inc VAT
£11.67 ex VAT
Part No: 24A2738
  No Longer Available
USE: CHM373
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: CHM373
  In Stock
10 points earn (£0.10)
£12.90 inc VAT
£10.75 ex VAT
Part No: 6K772
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 12A1347
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 12A372
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 12A433
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 17H153
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 24G1482
  In Stock
1 points earn (£0.01)
£1.62 inc VAT
£1.35 ex VAT
Part No: 53K126
  In Stock
£0.47 inc VAT
£0.39 ex VAT
Part No: 53K402
  In Stock
1 points earn (£0.01)
£1.66 inc VAT
£1.38 ex VAT
Part No: CAM4412
  In Stock

2 points earn (£0.02)
£3.06 inc VAT
£2.55 ex VAT
Part No: CZA4312
  No Longer Available
USE: PEU10016
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: GRH905
  No Longer Available
USE: BMP367
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: HHK001
  In Stock
7 points earn (£0.07)
£9.54 inc VAT
£7.95 ex VAT
Part No: PTZ804
  In Stock
£0.25 inc VAT
£0.21 ex VAT

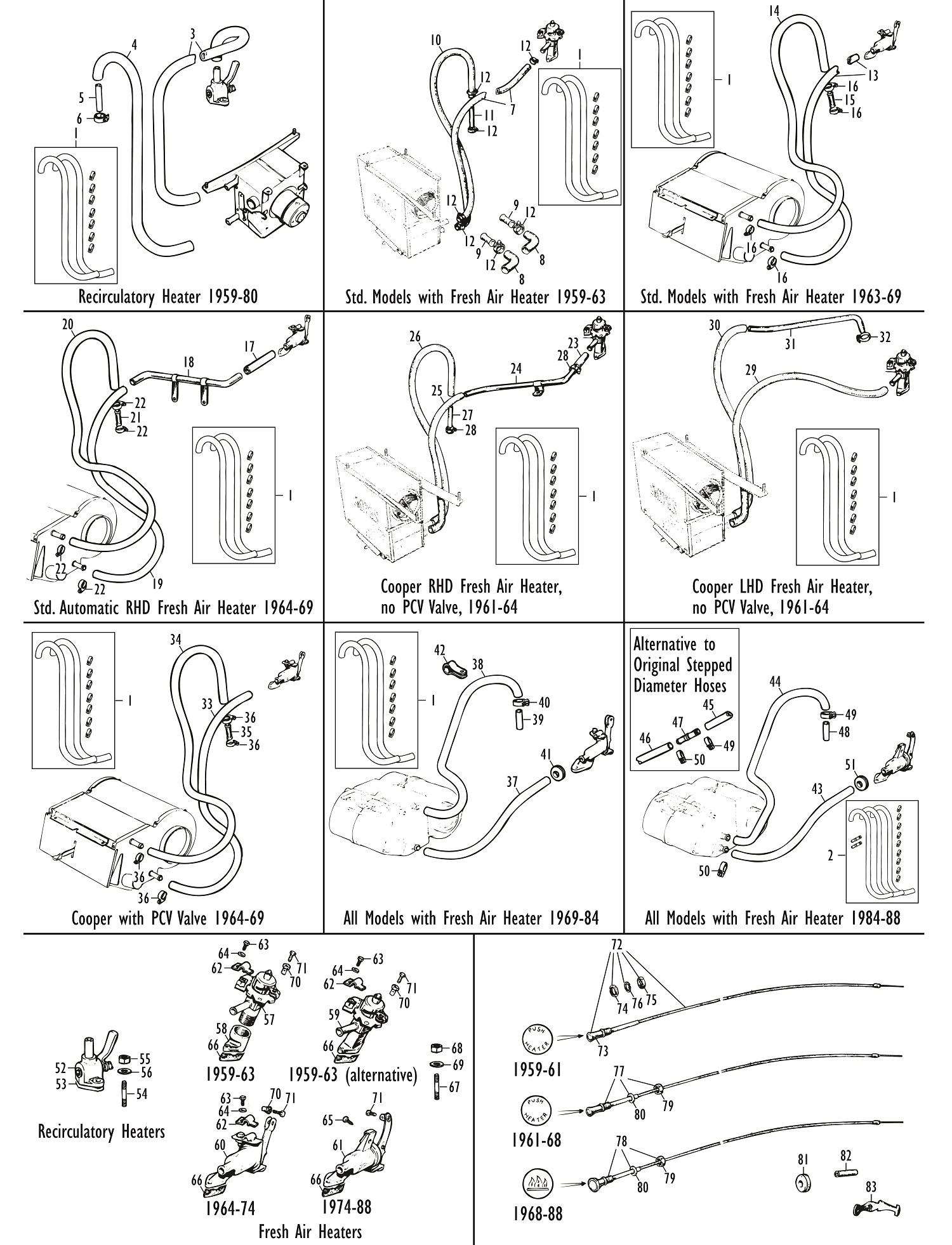

Heater Hose Kits
Two heater hose kits cover 1959-88 models.  The first includes 2 metres of 1/2” hose plus clips for 1959-84 Minis.  The second includes 2 metres of 1/2” hose, 1 metre of 5/8” hose, plus clips and connectors to replicate the stepped diameter hoses originally found on 1984-88 cars.  Refer to the hose lengths for your Mini listed in this section when trimming hoses to fit.
Ill. No. Part No. Description Qty. Rqd. Remarks
1 HHK001 HEATER HOSE KIT, with clips 1 1959-84 (1/2” hose).
2 HHK002 HEATER HOSE KIT, with clips  1 1984-88 (1/2” and 5/8” hose).

Heater Hoses and Pipes
All Models With Recirculatory Heater, 1959-80
Ill. No. Part No. Description Qty. Rqd. Remarks
3 GRH1006M HOSE, water tap to heater inlet (lower) A/R Sold per metre; RHD, 890mm required.
  GRH1006M HOSE, water tap to heater inlet (lower) A/R Sold per metre; LHD, 670mm required.
4 GRH1006M HOSE, heater outlet (upper) to bottom hose A/R Sold per metre, RHD, 460mm required.
  GRH1006M HOSE, heater outlet (upper) to bottom hose A/R Sold per metre; LHD, 830mm required.
5 CAM4412 TUBE, outlet hose to bottom hose 1
6 GHC507 CLIP, Jubilee, heater hose and bottom hose 5
  HCS112 CLIP, Supergrip, heater hose and bottom hose 5 Wire alternative to Jubilee clip.

Standard Models with Early Type Square Fresh Air Heater, 1959-63
Ill. No. Part No. Description Qty. Rqd. Remarks
7 GRH1006M HOSE, water valve to heater inlet (lower) A/R Sold per metre; RHD, 1050mm required.
  GRH1006M HOSE, water valve to heater inlet (lower) A/R Sold per metre; LHD, 720mm required.
8 17H153 ELBOW, rubber, heater inlet and outlet 2 1959-61.
9 CAM4412 TUBE, hose to elbow 2 1959-61.
10 GRH1006M HOSE, heater outlet (upper) to bottom hose A/R Sold per metre; RHD, 720mm long.
  GRH1006M HOSE, heater outlet (upper) to bottom hose A/R Sold per metre; LHD, 940mm long.
11 CAM4412 TUBE,  outlet hose to bottom hose 1
12 GHC507 CLIP, Jubilee, heater hose 9/5 Qty. 9 used 1959-61; qty. 5 used 1961-63.
  HCS112 CLIP, Supergrip, heater hose and bottom hose 9/5 Wire alternative to Jubilee clip.

Standard Manual Gearbox Models with Fresh Air Heater, 1963-69
Standard Automatic Gearbox LHD Models with Fresh Air Heater, 1964-69
Ill. No. Part No. Description Qty. Rqd. Remarks
13 GRH1006M HOSE, water valve to heater inlet (lower) A/R Sold per metre; RHD, 890mm required.
  GRH1006M HOSE, water valve to heater inlet (lower) A/R Sold per metre; LHD manual, 670mm required.
  GRH1006M HOSE, water valve to heater inlet (lower) A/R Sold per metre; LHD automatic, 890mm required.
14 GRH1006M HOSE, heater outlet (upper) to bottom hose A/R Sold per metre; RHD, 670mm required.
  GRH1006M HOSE, heater outlet (upper) to bottom hose A/R Sold per metre; LHD, 890mm required.
15 CAM4412 TUBE, outlet hose to bottom hose 1
16 GHC507 CLIP, Jubilee, heater hose and bottom hose 5
  HCS112 CLIP, Supergrip, heater hose and bottom hose 5 Wire alternative to Jubilee clip.

Standard Automatic Gearbox RHD Models with Fresh Air Heater, 1964-69
Ill. No. Part No. Description Qty. Rqd. Remarks
17 GRH1006M HOSE, water valve to pipe A/R Sold per metre; 80mm required.
18 12A1347 PIPE, water valve hose to heater inlet hose 1
19 GRH1006M HOSE, pipe to heater inlet (lower) A/R Sold per metre; 890mm required.
20 GRH1006M HOSE, heater outlet (upper) to bottom hose A/R Sold per metre; 670mm required.
21 CAM4412 TUBE, outlet hose to bottom hose 1
22 GHC507 CLIP, Jubilee, heater hose and bottom hose 7
  HCS112 CLIP, Supergrip, heater hose and bottom hose 7 Wire alternative to Jubilee clip.

Cooper RHD Models with Fresh Air Heater and Open Circuit Engine Breathing (without PCV valve), 1961-64
Ill. No. Part No. Description Qty. Rqd. Remarks
23 GRH1006M HOSE, water valve to pipe A/R Sold per metre; 80mm required.
24 12A372 PIPE, water valve hose to heater inlet hose 1
25 GRH1006M HOSE, pipe to heater inlet (lower) A/R Sold per metre; 940mm required.
26 GRH1006M HOSE, heater outlet (upper) to bottom hose A/R Sold per metre; 720mm long.
27 CAM4412 TUBE, outlet hose to bottom hose 1
28 GHC507 CLIP, Jubilee, heater hose and bottom hose 7
  HCS112 CLIP, Supergrip, heater hose and bottom hose 7 Wire alternative to Jubilee clip.

Cooper LHD Models with Fresh Air Heater and Open Circuit Engine Breathing (without PCV valve), 1961-64
Ill. No. Part No. Description Qty. Rqd. Remarks
29 GRH1006M HOSE, water valve to heater inlet (lower) A/R Sold per metre; 720mm required.
30 GRH1006M HOSE, heater outlet (upper) to pipe A/R Sold per metre; 940mm required.
31 12A433 PIPE, heater outlet hose to bottom hose 1
32 GHC507 CLIP, Jubilee, heater hose 5
  HCS112 CLIP, Supergrip, heater hose and bottom hose 5 Wire alternative to Jubilee clip.

Cooper Models with Fresh Air Heater and Closed Circuit Engine Breathing (with PCV valve), 1964-69
Ill. No. Part No. Description Qty. Rqd. Remarks
33 GRH1006M HOSE, water valve to heater inlet (lower) A/R Sold per metre; RHD, 890mm required.
  GRH1006M HOSE, water valve to heater inlet (lower) A/R Sold per metre; LHD, 670mm required.
34 GRH1006M HOSE, heater outlet (upper) to bottom hose A/R Sold per metre; RHD, 670mm required.
  GRH1006M HOSE, heater outlet (upper) to bottom hose A/R Sold per metre; LHD, 890mm required.
35 CAM4412 TUBE, outlet hose to bottom hose 1
36 GHC507 CLIP, Jubilee, heater hose and bottom hose 5
  HCS112 CLIP, Supergrip, heater hose and bottom hose 5 Wire alternative to Jubilee clip.

All Models with Fresh Air Heater (with 1/2" dia. matrix pipes), 1969-84
Ill. No. Part No. Description Qty. Rqd. Remarks
37 GRH1006M HOSE, water valve to heater inlet (lower) A/R Sold per metre; RHD, 740mm required.
  GRH1006M HOSE, water valve to heater inlet (lower) A/R Sold per metre; LHD, 670mm required.
38 GRH1006M HOSE, heater outlet (upper) to bottom hose A/R Sold per metre; RHD and LHD, 890mm required.
39 CAM4412 TUBE, outlet hose to bottom hose 1
40 GHC507 CLIP, Jubilee, heater hose and bottom hose 5
  HCS112 CLIP, Supergrip, heater hose and bottom hose 5 Wire alternative to Jubilee clip.
41 34G3651 GROMMET, heater inlet hose through dash 1 RHD.
42 CZA4312 CLIP, heater outlet hose to rocker cover 1 LHD, except 1275 GT.

All Models with Fresh Air Heater (with 5/8" dia. matrix pipes), 1984-88
Note that the hoses listed here have a stepped internal diameter, being 5/8" at one end and 1/2" at the other.  The 5/8" end of each hose connects to the heater, the 1/2" end connecting to the water valve or bottom hose, as appropriate.  The system described here was used before the brake servo was fitted to the Mini in 1988; for servo fitted models please see the next section of this catalogue.

Ill. No. Part No. Description Qty. Rqd. Remarks
43 BMP366 HOSE, water valve to heater inlet (lower) 1 RHD; trim to 740mm length.
  BMP366 HOSE, water valve to heater inlet (lower) 1 LHD; trim to 670mm length.
44 GRH905 HOSE, heater outlet (upper) to bottom hose 1 RHD; trimming not required.
  BMP366 HOSE, heater outlet (upper) to bottom hose 1 LHD; trimming not required.

In the event of the original stepped diameter hoses not being available (a common occurance), stepped hose assemblies can be made up from 1/2" hose and 5/8" hose, sold by the metre, with a reducing connector and one of each hose clip to join the two together:
Ill. No. Part No. Description Qty. Rqd. Remarks
45 GRH1006M HOSE, connecting to water valve or bottom hose A/R 1/2" internal diameter.  Sold per metre.
46 HH58 HOSE, connecting heater A/R 5/8" internal diameter.  Sold per metre.
47 PCP10006 CONNECTOR, reducing A/R Connects 1/2" to 5/8" internal diameter hose.
48 CAM4412 TUBE, outlet hose to bottom hose 1
49 GHC507 CLIP, Jubilee, valve and bottom hose connections 3 5 required if using reducing connectors detailed above.
50 GHC608 CLIP, Jubilee, heater connections 2 4 required if using reducing connectors detailed above.
51 34G3651 GROMMET, heater inlet hose through dash 1 RHD.

Water Valves and Tap
The method of governing the hot water supply to the heater matrix via a valve (or simple tap, for recirculatory heaters) on the cylinder head remained the same right the way through to 1988, from which date the arrival of the servo-assisted brake system required a redesign of the heater hose routing.

Recirculatory Heaters 1959-80
Ill. No. Part No. Description Qty. Rqd. Remarks
52 12A479 WATER TAP, heater 1
53 88G221 GASKET, tap to cylinder head 1
54 53K402 STUD, tap to cylinder head 2
55 FNZ104 NUT 2
56 LWZ204 WASHER, locking 2

Fresh Air Heaters 1959-88
Ill. No. Part No. Description Qty. Rqd. Remarks
57 13H549 WATER VALVE, heater, vertical 1 1959-63; use with adaptor.
58 12A345 ADAPTOR, valve to cylinder head 1
59 13H548 WATER VALVE, heater, vertical 1 1959-63 alternative; does not require adaptor.
60 88G601 WATER VALVE, heater, horizontal 1 1964-74.
61 ADU9102 WATER VALVE, heater, horizontal 1 1974-88.
62 27H1193 CLAMP, outer control cable  1 1959-74; included in valve ass'y.
63 53K126 SCREW, clamp 1 1959-74; included in valve ass'y.
64 WF702101 WASHER, shakeproof 1 1959-74; included in valve ass'y.
65 PTZ804 SCREW, clamp 1 1974-88; included in valve ass'y.
66 88G221 GASKET, valve to cylinder head 1
67 53K402 STUD, valve to cylinder head 2
68 FNZ104 NUT 2
69 LWZ204 WASHER, locking 2
70 24G1482 TRUNNION, inner control cable to water valve 1 1959-74 water valves.
71 53K1016 SCREW, inner control cable clamping 1

Water Valve Control Cables
1959-88
From 1959 to 1961, a cable with separate knob displaying 'Push Heater' text was used.  This cable can be further distinguished by its round chromed nut locking it to the switch panel.  From 1961 to 1968 a cable with non-removable knob also displaying 'Push Heater' text was fitted; this cable originally came in three different lengths, the latter two lengths being for later Cooper and Cooper S models - these are now superseded by the first length (part no. 14A9988), which may also be used if required to replace the original cable on 1959-61 models.

From 1968 a cable with a soft-feel plastic knob was fitted, most easily distinguished by its flame motif which replaced the previous text.  This cable is 25" long in its original form; however a 30" long version is also available and is chosen by most customers as it is easier to fit to all of the 1968 on models.

Ill. No. Part No. Description Qty. Rqd. Remarks
72 27H1968 CABLE ASS'Y, valve control 1 1959-61; knob displays 'Push Heater' text.
73 27H2280 KNOB, control cable, 'Push Heater' 1 Fits 27H1968 cable only.
74 17H823 NUT, locking, round 1 Fits 27H1968 cable only.
75 17H824 NUT, locking, hexagonal 1 Fits 27H1968 cable only.
76 17H825 WASHER, locking 1 Fits 27H1968 cable only.
77 14A9988 CABLE ASS'Y, valve control 1 1961-68; knob displays 'Push Heater' text.
78 24A2738 CABLE ASS'Y, valve control, 25" long 1 1968-88; knob displays flame motif. Original length.
  CHM373 CABLE ASS'Y, valve control, 30" long 1 1968-88; knob displays flame motif. Alternative length (easier to fit).
79 FNZ206 NUT, locking 1 Fits 14A9988, 24A2738 and CHM373 cables.
80 LWZ606 WASHER, shakeproof 1 Fits 14A9988, 24A2738 and CHM373 cables.
81 CAM5969 GROMMET, cable through dash 1
82 6K772 SLEEVE, rubber, cable 1 1959-69.
83 13H6107 CLEAT, fir tree, cable to heater hose 1
View as:
Show items
Items 1 to 12 of 46 total
1 2 3 4
Part No: PTZ804
  In Stock
£0.25 inc VAT
£0.21 ex VAT
Part No: HHK001
  In Stock
7 points earn (£0.07)
£9.54 inc VAT
£7.95 ex VAT
Part No: GRH905
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: CZA4312
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: CAM4412
  In Stock

2 points earn (£0.02)
£3.06 inc VAT
£2.55 ex VAT
Part No: 53K402
  In Stock
1 points earn (£0.01)
£1.66 inc VAT
£1.38 ex VAT
Part No: 53K126
  In Stock
£0.47 inc VAT
£0.39 ex VAT
Part No: 24G1482
  In Stock
1 points earn (£0.01)
£1.62 inc VAT
£1.35 ex VAT
Part No: 17H153
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 12A433
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 12A372
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 12A1347
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Add to cart
Items 1 to 12 of 46 total
1 2 3 4
Request a free catalogue
