Until 1984, heater hoses on the Mini were of the 1/2” diameter type. From 1984 onwards 5/8” diameter hose was gradually introduced, initially in the form of hoses that were stepped down from 5/8” at one end to 1/2” diameter at the other. Using the PCP10006 connector listed here allows these stepped down hoses to be replicated from off-the-roll hose.


Coolant Hoses (per metre) and Connectors
Part No Description Remarks

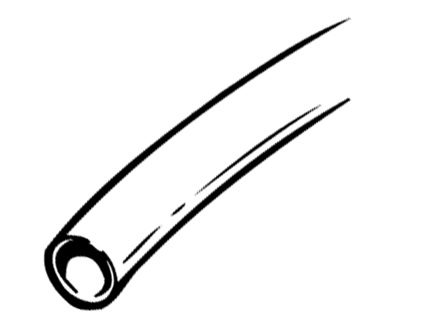

GRH1001 Radiator/Exp. Tank Overflow Hose Per Metre

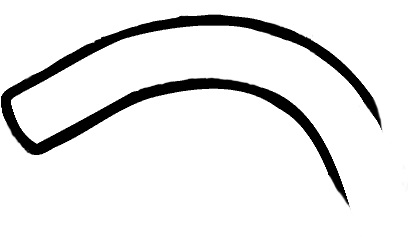

GRH1006M Heater Hose, 1/2" Dia. Per Metre
HH58 Heater Hose, 5/8" Dia. Per Metre
CAM4412 Heater hose connector 1/2" dia.
PCP10095 Heater hose connector 5/8" dia.
PCP10006 Heater Hose Step-Down Connector  5/8" to 1/2"

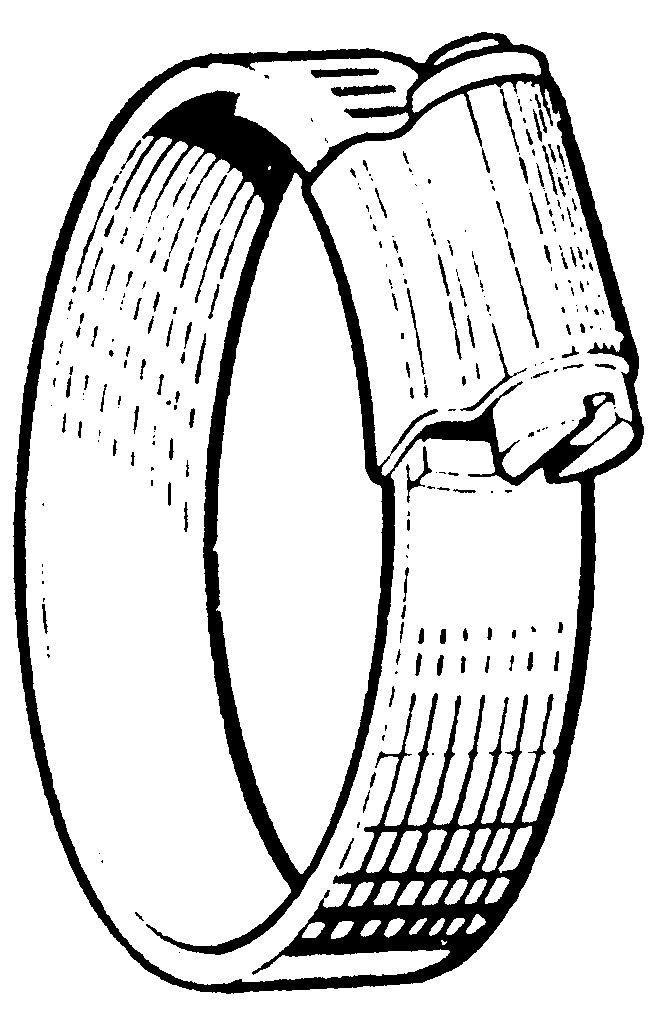

'Jubilee' Type Worm Drive Clips
Part No Nominal Dia. Min Dia. Max Dia.
GHC507 3/4" 5/8" (16mm) 7/8" (22mm)
CJ600164EVA 7/8" 5/8" (16mm) 1 1/16" (27mm)
GHC608 7/8" 3/4" (19mm) 1" (25mm)
CN100358 1 1/8" 57/64" (23mm) 1 3/8" (35mm)
HCS2540 1 9/32" 1" (25mm) 1 9/16" (39mm)
GHC913 1 3/8" 1 1/8" (28mm) 1 5/8" (40mm)
GHC1217 1 13/16" 1 1/2" (38mm) 2 1/8" (54mm)
CJ600564EVA 3 1/8" 2 3/4" (70mm) 3 1/2" (90mm)
CJ600744EVA 3 5/8" 3 1/4" (80mm) 4" (100mm)

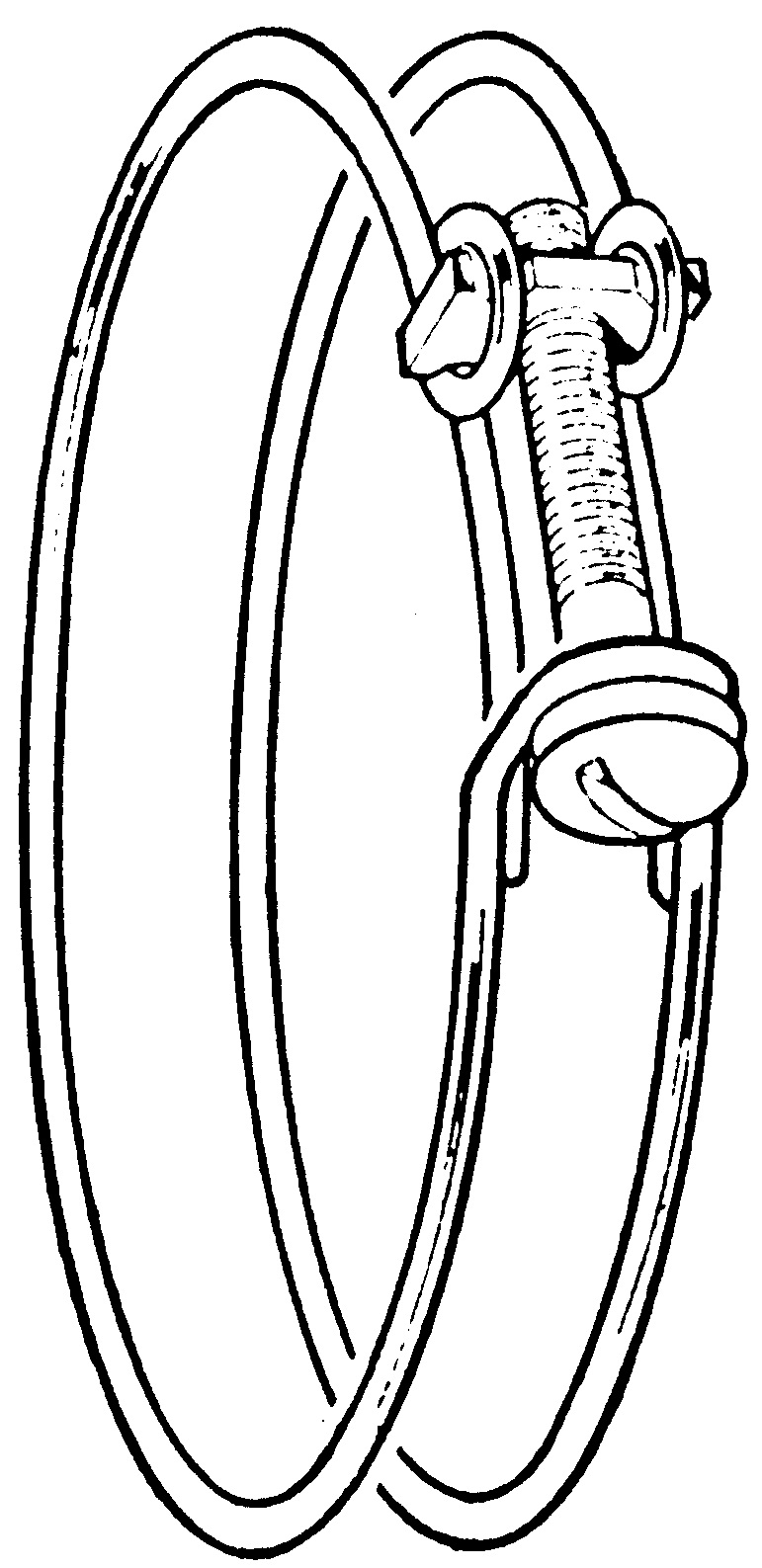

'Supergrip' Type Wire Clips
Part No Nominal Dia. Min Dia. Max Dia.
HCS112 3/4" 19/32" (15mm) 13/16" (21mm)
HCS118 1 1/8" 31/32" (25mm) 1 3/16" (30mm)
HCS122 1 3/8" 1 7/32" (31mm) 1 7/16" (37mm)
HCS130 1 7/8" 1 23/32" (44mm) 1 15/16" (49mm)
HCS144 2 3/4" 2 19/32" (66mm) 2 13/16" (71mm)
HCS156 3 1/2" 3 11/32" (85mm) 3 9/16" (90mm)
HCS168 4 1/4" 4 3/32" (104mm) 4 5/16" (110mm)
