Saloon and Cabriolet

Windscreens and Backlights
Important: Please note that the preferred method of supplying windscreens and window glass is for the customer to pre-arrange to pick it up, either directly from our premises or from our stand at one of the many shows we attend. Except in special circumstances we do not supply these items by mail order.

Mini saloon glazing came in clear, green, copper brown or bronze tinted versions, depending on the year and model of the car. Clear or green tinted specifications are widely available today; if your car (perhaps a late 1970s Mini Special?) is fitted with copper brown tinted glass, or the mid-1990s bronze tinted glass, please contact us for advice on current availability.

For door and rear door glass, please see the Door Locks, Glazing and Fittings sections.

Windscreen
Unlike other windows around the Mini, the windscreen never changed in dimensions, and the same design was used across all the body styles. In fact, such was the demand for windscreen panels (one of the few pressings which remained the same on all models) that it has been said by several Castle Bromwich staff that while Mini presswork was undertaken at that plant, the windscreen panel tools never came out of the presses!

Back in the 60s and 70s Minis came out of the factory with windscreens made from toughened glass (the type that shatters into thousands of granules that get into every nook and cranny in the car...), switching over a period of time to the eminently more practical laminated type as market forces (and local regulations) dictated.

Today, we offer a range of laminated windscreens allowing the customer the choice of clear, tinted or top tinted glass. We can even supply a thoroughly up-to-date heated windscreen for those exasperated by the well-known inefficiencies of the Mini's demister system. If you are converting your car to a heated windscreen, you really should consider purchasing our harness and relay kit (part no. HWWK01) to take the guesswork out of wiring it up.

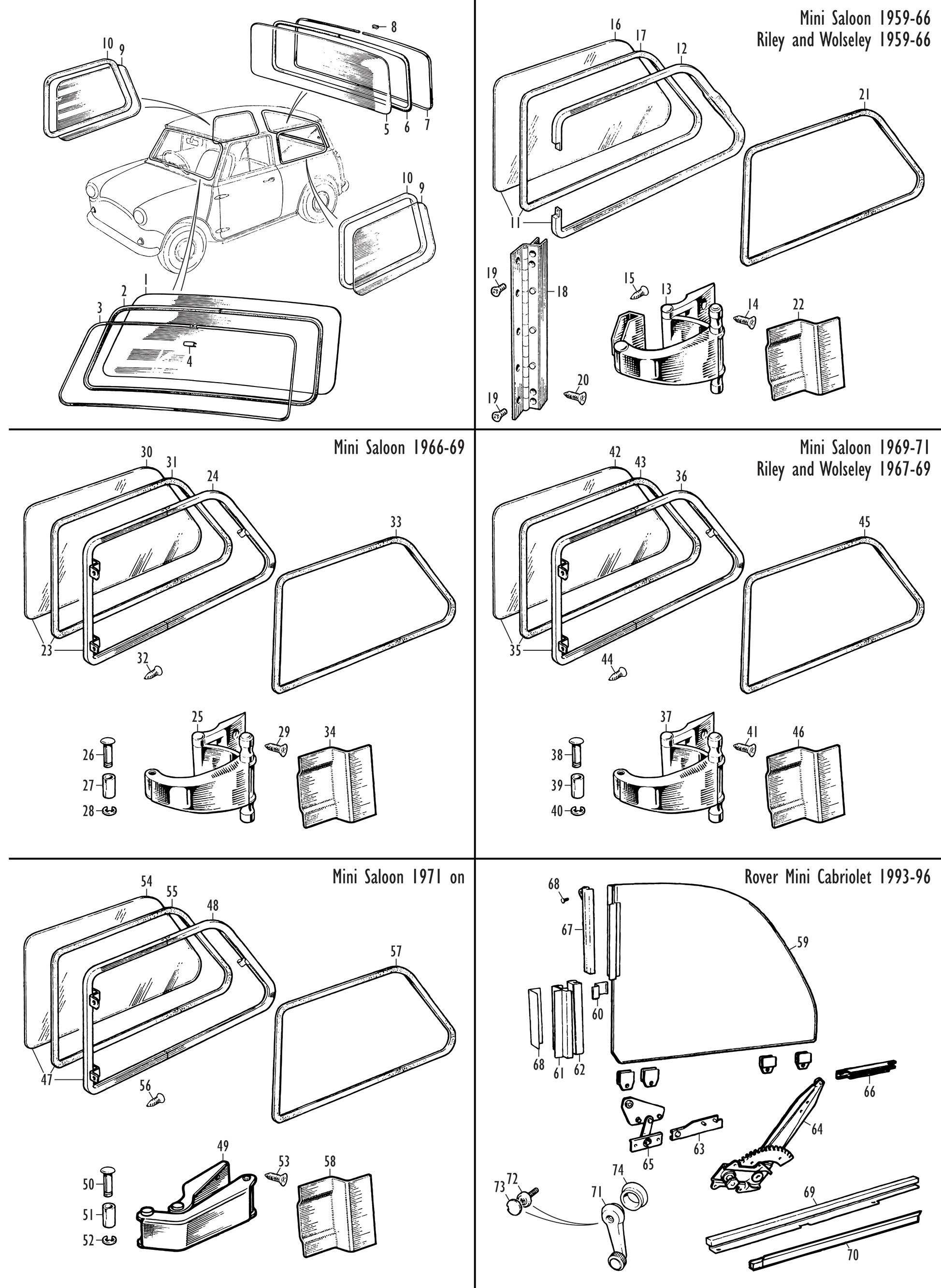

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
1	24A2236	GLASS, windscreen, laminated, clear	1	All models up to 1996 with clear glazing.
	CZH4048	GLASS, windscreen, laminated, green tinted	1	All models up to 1996 with green tinted glazing.
	CZH4048TT	GLASS, windscreen, laminated, green tinted, with top tint (sun strip)	1	Alternative to CZH4048.
	24A2236H	GLASS, windscreen, laminated, clear, heated	1	Alternative to 24A2236.
	24A2236MC	GLASS, windscreen, laminated, clear, heated	1	Period 'Monte Carlo' type alternative to 24A2236H.
	CZH4048H	GLASS, windscreen, laminated, green tinted, heated	1	Alternative to CZH4048.
	CMB100920	GLASS, windscreen, laminated, green tinted	1	1997 on; accepts windscreen mounted interior mirror.
2	14A8743	SEAL, rubber, windscreen glass	1	For original toughened glass windscreens; will fit laminated glass.
	CCB100130	SEAL, rubber, windscreen glass, wide	1	For laminated glass windscreens and all models from 1990
				approx. on.
To be honest, while these two screen seals look and are different, in reality both can be used with laminated glass. However, if you intend to refit an original toughened windscreen, the early seal 14A8743 should be used.

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
3	24A734	STRIP, filler, windscreen seal, black	1	1959-79; standard 850 models.
	37H8052F	STRIP, filler, windscreen seal, plastichrome	1	All models except pre-1980 standard 850.
4	JPC2017	CLIP, joint finisher, filler strip	1	1985 on.

Backlight - Saloon
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
5	14A7056	GLASS, backlight, clear	1	1959-67 (MkI).
	24A2223	GLASS, backlight, clear, heated	1	1959-67 (MkI).
	88G487	GLASS, backlight, clear	1	1967 on (MkII onwards).
	13H7323	GLASS, backlight, clear, heated	1	1967 on (MkII onwards).
	CZH4013	GLASS, backlight, green tinted, heated	1	1967 on (MkII onwards).
6	14A8744	SEAL, rubber, backlight glass	1	1959-67 (MkI).
	JRC2674	SEAL, rubber, backlight glass	1	1967 on (MkII onwards); may be cut to fit MkI.
7	24A735	STRIP, filler, backlight seal, black	1	1959-79; standard 850 models.
	37H8052R	STRIP, filler, backlight seal, plastichrome	1	All models except pre-1980 standard 850.
8	JPC2017	CLIP, joint finisher, filler strip	1	1985 on.

Rear Quarter Lights
Saloon Models
Fixed (non-opening) rear quarter lights were a feature of basic specification Minis throughout production. The only design change came in 1969 when the glass was made taller to match the top line of the wind-up window door introduced at that time. Converting a car with fixed quarter lights to the opening type necessitates the welding of catch brackets (14A7775, listed with the opening quarter lights below) if they are not present to the rear pillars, unless the car is a later model with rear seat belt mountings on the rear pillars: these mountings were also used to attach the quarter light catches.

Opening rear quarter lights were manufactured to four different styles. MkI saloons up to 1966 used chromed quarter lights with piano hinges attaching them to the B posts; later MkIs and MkIIs from 1966 to 1969 used a simpler (cheaper!) stainless steel design which dispensed with the hinges, substituting pairs of spring steel tabs instead. Riley and Wolseley MkI and MkII saloons followed suit, according to the year of build.

Upon the advent of the Riley and Wolseley MkIII saloons in 1967, the stainless steel quarter light was modified to give a greater glass height to match the new, taller, wind-up door windows. This quarter light was carried over in turn to the new Mini MkIII in 1969 when it too received wind-up door windows. In 1971 the quarter light catch was changed from the previous cast metal toggle style to a smoother pressed steel design, and that's how opening quarter lights remained for the rest of the Mini's production life.

Fixed Rear Quarter Lights
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
9	14A6824	GLASS, rear quarter light, clear	2	1959-69 (MkI and MkII).
	CZH1315	GLASS, rear quarter light, clear	2	1969 on (MkIII on).
	CPB101380	GLASS, rear quarter light, green tinted	2	1969 on (MkIII on).
10	JRC2673	SEAL, rubber, rear quarter light glass	2	Trim to fit for MkI and MkII applications.
	JRC2673P	SEAL, rubber, rear quarter light glass	2	Non-genuine.

Opening Chromed Rear Quarter Lights
Austin and Morris MkI Models Plus Riley and Wolseley Mk I and MkII Models, 1959-66
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
11	24A1203	QUARTER LIGHT ASSY., clear glass, RH	1
	24A1204	QUARTER LIGHT ASSY., clear glass, LH	1
12	17H3725	FRAME, quarter light	2
13	47H9501	CATCH ASSEMBLY, RH	1
	47H9500	CATCH ASSEMBLY, LH	1
14	RTP604	SCREW, catch to rear pillar bracket	4
15	CMZ204	SCREW, catch to quarter light frame	4
16	24A603	GLASS, quarter light, clear	2
17	47H9535M	RUBBER, glazing	A/R	Sold per metre.
18	24A684	HINGE, quarter light	2
19	CMZ204	SCREW, hinge to quarter light frame	8
20	CTP604	SCREW, self tapping, hinge to B post	10
21	ALA5897	SEAL, rubber, quarter light to body	2	Cut to fit.
22	14A7775	CATCH BRACKET, rear pillar	2	Weld to rear pillars.

Opening Stainless Rear Quarter Lights
Austin and Morris MkI and MkII Models, 1966-69
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
23	ALA7938	QUARTER LIGHT ASSY., clear glass, RH	1
	ALA7939	QUARTER LIGHT ASSY., clear glass, LH	1
24	ALA7940	FRAME, quarter light, RH	1
	ALA7941	FRAME, quarter light, LH	1
25	24A2132	CATCH ASSEMBLY, RH	1
	24A2133	CATCH ASSEMBLY, LH	1
26	24A2135	PIN, catch pivot	2
27	24A2134	TUBE, bearing	2
28	13H2899	CIRCLIP, pin securing	2
29	RTP604	SCREW, catch to rear pillar bracket	4
30	24A2130	GLASS, quarter light, clear	2
31	47H9535M	RUBBER, glazing	A/R	Sold per metre.
32	36036K	SCREW, self tapping, quarter light tab to B post	4
33	ALA5897	SEAL, rubber, quarter light to body	2	Cut to fit.
34	14A7775	CATCH BRACKET, rear pillar	2	Weld to rear pillars.

Opening Stainless Rear Quarter Lights
Mini MkIII, 1969-71 approx.; Riley and Wolseley MkIII Models, 1967-69
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
35	ALA7946	QUARTER LIGHT ASSY., clear glass, RH	1
	ALA7947	QUARTER LIGHT ASSY., clear glass, LH	1
36	ALA8256	FRAME, quarter light, RH	1
	ALA8257	FRAME, quarter light, LH	1
37	24A2132	CATCH ASSEMBLY, RH	1
	24A2133	CATCH ASSEMBLY, LH	1
38	24A2135	PIN, catch pivot	2
39	24A2134	TUBE, bearing	2
40	13H2899	CIRCLIP, pin securing	2
41	RTZ604	SCREW, catch to rear pillar bracket	4
42	CZH3541	GLASS, quarter light, clear	2
43	47H9535M	RUBBER, glazing	A/R	Sold per metre.
44	36036K	SCREW, self tapping, quarter light tab to B post	4
45	ALA5897	SEAL, rubber, quarter light to body	2
46	14A7775	CATCH BRACKET, rear pillar	2	Weld to rear pillars.

Opening Stainless Rear Quarter Lights
Mini MkIII, MkIV, Tbi and Mpi Models, 1971 approx. On
A few models in the 1990s had black quarter light frames instead of the more usual bright finish. These frames are not available. Similarly, some 1970s models were fitted with quarter light seals coloured to match the interior trim, rather than the customary black. Please contact us to enquire on current availability of these coloured seals.
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
47	CZH3522	QUARTER LIGHT ASSY., clear glass, RH	1
	CZH3523	QUARTER LIGHT ASSY., clear glass, LH	1
	CZH4010	QUARTER LIGHT ASSY., green tinted glass, RH	1
	CZH4011	QUARTER LIGHT ASSY., green tinted glass, LH	1
48	CZH3537	FRAME, quarter light, RH	1
	CZH3538	FRAME, quarter light, LH	1
49	CZH3535	CATCH ASSEMBLY, RH	1
	CZH3536	CATCH ASSEMBLY, LH	1
50	CZH3527	PIN, catch pivot	2
51	CZH3542	TUBE, bearing	2
52	13H2899	CIRCLIP, pin securing	2
53	PTZ604	SCREW, catch to rear pillar bracket	4
54	JRC5142	GLASS, quarter light, clear	2
	JRC5143	GLASS, quarter light, green tinted	2
55	47H9535M	RUBBER, glazing	A/R	Sold per metre.
56	36038Z	SCREW, self tapping, quarter light tab to B post	4
57	PAM1019	SEAL, rubber, quarter light to body, black	2	Cut to fit.
58	14A7775	CATCH BRACKET, rear pillar	2	If required; weld to rear pillars.

Rear Quarter Lights
Rover Mini Cabriolet, 1993-96
If you own a Lamm Cabriolet, you'll know that the hood incorporates the rear side windows. However, the Rover Mini Cabriolet had instead a rather nice pair of wind-up rear quarter lights:
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
59	CPD10058	GLASS, rear quarter, green tinted, RH	1
	CPD10059	GLASS, rear quarter, green tinted, LH	1
60	CFT100140	CLIP, quarter light	2
61	CGC10020	CHANNEL, glass run	2
62	CGE10062	SEAL, glass run channel	2
63	CVE100100	CHANNEL, glass guide, RH	1
	CVE100110	CHANNEL, glass guide, LH	1
64	CVH10090	REGULATOR, glass, RH	1
	CVH10091	REGULATOR, glass, LH	1
65	CVF10024	PLATE, regulator mounting, RH	1
	CVF10025	PLATE, regulator mounting, LH	1
66	CVF100280	PLATE, regulator, RH	1
	CVF100290	PLATE, regulator, LH	1
67	CFE101340PMA	SEAL, glass, RH	1
	CFE101350PMA	SEAL, glass, LH	1
68	CZE100010	STRIP, anti-rattle, rear quarter inner	2
69	DDF10052	FINISHER, lower, rear quarter outer	2
70	ENN10020	SEAL, rear quarter outer	2
71	YXX3199LOY	HANDLE, regulator, Granite	2
	YXX3199LNF	HANDLE, regulator, Ash Grey	2
	FVL100030	HANDLE, regulator, burr walnut	2	Alternative.
72	ADU8081	SCREW, handle to regulator	2
73	YXX3200LOY	PLUG, handle, Granite	2
	YXX3200LNF	PLUG, handle, Ash Grey	2
74	CZH701LOY	BEZEL, handle, Granite	2
	FVN10003LNF	BEZEL, handle, Ash Grey	2
