Fascias - instrument housing and face level air vents

Part No: LWZ204
  In Stock
WASHER-SPRING, 1/4''
Required Quantity: 4
£0.22 inc VAT
£0.18 ex VAT
Part No: PWZ104
  In Stock
£0.30 inc VAT
£0.25 ex VAT
Part No: PWZ103
  In Stock
£0.20 inc VAT
£0.17 ex VAT
Part No: WL700101
  In Stock
WASHER-SPRING 10/32''
Required Quantity: 8
£0.16 inc VAT
£0.13 ex VAT
Part No: FNZ103
  In Stock
£0.26 inc VAT
£0.22 ex VAT
Part No: PWZ203
  In Stock
1960-68.
£0.22 inc VAT
£0.18 ex VAT
Part No: CMZ308
  No Longer Available
USE: SF910161
Required Quantity: 4
No. 10 UNF x 1/2".
£0.00 inc VAT
£0.00 ex VAT
Part No: FNZ104
  In Stock
NUT - 1/4" UNF
Required Quantity: 4
£0.35 inc VAT
£0.29 ex VAT
Part No: PWZ204
  In Stock
£0.35 inc VAT
£0.29 ex VAT
Part No: LWZ403
  In Stock
£0.25 inc VAT
£0.21 ex VAT
Part No: PMZ310
  In Stock
SCREW-PAN HEAD-10 UNF x 5/8''
Required Quantity: 8
£0.35 inc VAT
£0.29 ex VAT
Part No: 14A7031
  In Stock
GROMMET-HYDRO UNIT RETAINER
Required Quantity: 1
£0.84 inc VAT
£0.70 ex VAT
Part No: 37H4887
  No Longer Available
USE: YYH10003
Required Quantity: 3
£0.00 inc VAT
£0.00 ex VAT
Part No: BAU2055
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: CZG3178
  No Longer Available
USE: DA608041
Required Quantity: 3/4
£0.00 inc VAT
£0.00 ex VAT
Part No: PCR607
  No Longer Available
USE: CP105051
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: PTP603
  In Stock
£0.84 inc VAT
£0.70 ex VAT
Part No: YQU10244
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: YQU10262
  In Stock
15 points earn (£0.15)
£18.24 inc VAT
£15.20 ex VAT
Part No: ALA6292
  In Stock

1 points earn (£0.01)
£2.34 inc VAT
£1.95 ex VAT
Part No: JBB100550
  In Stock
3 points earn (£0.03)
£4.51 inc VAT
£3.76 ex VAT
Part No: 37H7035
  No Longer Available
USE: JBB101000
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: 37H7036
  No Longer Available
USE: JBB101010
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: CZH3835
  No Longer Available
USE: JPC8632 AND JBB101000
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: CZH3836
  No Longer Available
USE: JPC8632 AND JBB101010
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: JPC8632
  In Stock
23 points earn (£0.23)
£28.20 inc VAT
£23.50 ex VAT
Part No: JBD100410PMA
  No Longer Available
USE: JPC8632 AND CUT DOWN
Required Quantity: 2
£0.00 inc VAT
£0.00 ex VAT
Part No: JBD100750PMA
  No Longer Available
USE: JPC8632 AND CUT DOWN
Required Quantity: 2
£0.00 inc VAT
£0.00 ex VAT
Part No: JPC8633
  No Longer Available
USE: JBB101000
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: JPC8634
  No Longer Available
USE: JBB101010
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: JBB101000
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: JBB101010
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: CZH659
  In Stock
20 points earn (£0.20)
£24.90 inc VAT
£20.75 ex VAT
Part No: 37H7034
  No Longer Available
USE: JPC8632
Required Quantity: 2
£0.00 inc VAT
£0.00 ex VAT
Part No: CZH658
  Awaiting Stock - On Order
20 points earn (£0.20)
£24.90 inc VAT
£20.75 ex VAT
Part No: JZL100050
  Available to Customer Order
4 points earn (£0.04)
£5.34 inc VAT
£4.45 ex VAT
Part No: 14A5889
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 14A8008
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 14A9796
  In Stock
1 points earn (£0.01)
£1.92 inc VAT
£1.60 ex VAT
Part No: 14A9815
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 14A9904
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 14A9906
  No Longer Available
USE: 37H3043
Required Quantity: 2
£0.00 inc VAT
£0.00 ex VAT
Part No: 14A9907
  Currently Unavailable
14 points earn (£0.14)
£17.83 inc VAT
£14.86 ex VAT
Part No: 24A1582
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 24A2702
  In Stock

32 points earn (£0.32)
£39.00 inc VAT
£32.50 ex VAT
Part No: 24A472
  In Stock
£0.67 inc VAT
£0.56 ex VAT
Part No: 24A53
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: 37H6119
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: ADA3741
  In Stock
59 points earn (£0.59)
£70.80 inc VAT
£59.00 ex VAT
Part No: ALE3478
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: BAU2063
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: BAU2073
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: BAU2267
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: CDU3231
  In Stock
55 points earn (£0.55)
£66.00 inc VAT
£55.00 ex VAT
Part No: CDU3233
  In Stock
65 points earn (£0.65)
£78.00 inc VAT
£65.00 ex VAT
Part No: CFP1000
  In Stock
£1.02 inc VAT
£0.85 ex VAT
Part No: CFP500
  In Stock
£0.59 inc VAT
£0.49 ex VAT
Part No: CZH1202
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: CZH245
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: CZH246
  Available to Customer Order
16 points earn (£0.16)
£19.50 inc VAT
£16.25 ex VAT
Part No: CZH247
  In Stock
17 points earn (£0.17)
£20.40 inc VAT
£17.00 ex VAT
Part No: CZH3007
  In Stock
26 points earn (£0.26)
£31.20 inc VAT
£26.00 ex VAT
Part No: CZH3008
  In Stock
26 points earn (£0.26)
£31.20 inc VAT
£26.00 ex VAT
Part No: CZH3503
  No Longer Available
USE: FCY100010PMA
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: CZH673
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: FAY100080
  In Stock
1 points earn (£0.01)
£1.80 inc VAT
£1.50 ex VAT
Part No: FCY100010PMA
  In Stock
2 points earn (£0.02)
£3.54 inc VAT
£2.95 ex VAT
Part No: FCY100100PMA
  In Stock
4 points earn (£0.04)
£5.40 inc VAT
£4.50 ex VAT
Part No: JPC6982
  No Longer Available
USE: FCY100100PMA
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: JRC8059LOY
  In Stock
1 points earn (£0.01)
£2.34 inc VAT
£1.95 ex VAT
Part No: JRC8059PMA
  In Stock
1 points earn (£0.01)
£2.34 inc VAT
£1.95 ex VAT
Part No: LGA7548
  Currently Unavailable
61 points earn (£0.61)
£73.96 inc VAT
£61.63 ex VAT
Part No: PMZ312
  In Stock
£0.31 inc VAT
£0.26 ex VAT
Part No: PMZ316
  In Stock
SCREW-PAN HEAD-10 UNF x 1''
Required Quantity: 2
£0.36 inc VAT
£0.30 ex VAT
Part No: YAQ10004
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: YAQ100090LOY
  In Stock
49 points earn (£0.49)
£58.80 inc VAT
£49.00 ex VAT
Part No: YAQ100100PMA
  No Longer Available
USE: YAQ100150
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: YAQ100110LOY
  In Stock
39 points earn (£0.39)
£46.80 inc VAT
£39.00 ex VAT
Part No: YAQ100120PMA
  No Longer Available
USE: YAQ100140PMA
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: YAQ100140PMA
  In Stock
52 points earn (£0.52)
£62.40 inc VAT
£52.00 ex VAT
Part No: YAQ100150PMA
  No Longer Available
USE: YAQ100150
Required Quantity: 1
£0.00 inc VAT
£0.00 ex VAT
Part No: YQU10256
  In Stock
11 points earn (£0.11)
£14.03 inc VAT
£11.69 ex VAT

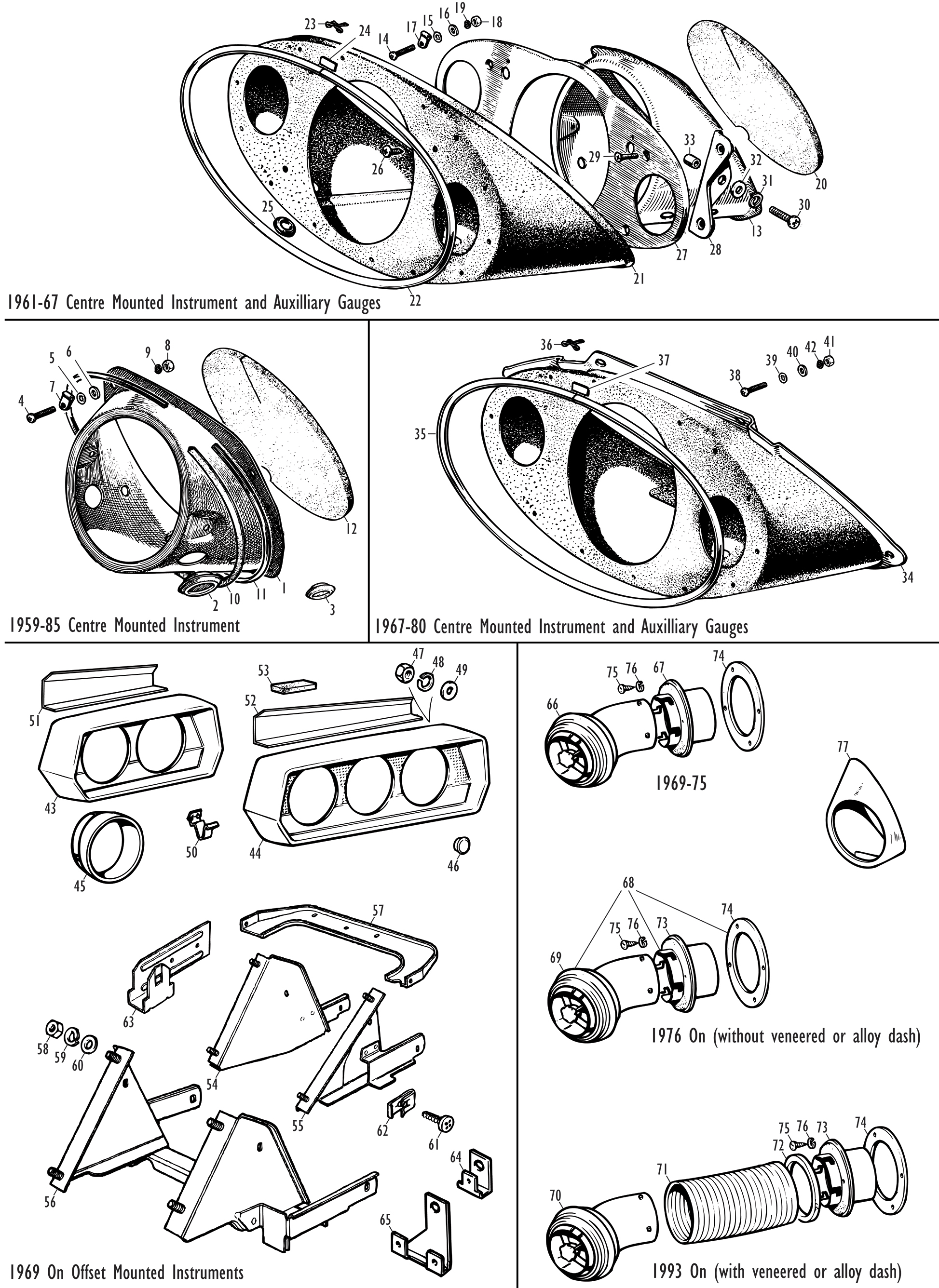

No. Part No. Description Qty. Remarks
Instrument Housings

Centre Mounted Single Instrument 1959-85

1 ADA3741 BINNACLE, instrument, Old English White 1 1959-69 (Van and Pick Up 1960-70)
  LGA7548 BINNACLE, instrument, black 1 1969-85 (Van and Pick Up 1970-84)
2 CFP1000 PLUG, binnacle, white 2
3 CFP500 PLUG, binnacle, panel light switch, white 1 When panel light switch not fitted.
  14A7031 PLUG, binnacle, panel light switch, black 1 When panel light switch not fitted.
4 PMZ312 SCREW, binnacle to dash panel 4
5 LWZ403 WASHER, shakeproof 4
6 PWZ103 WASHER, plain 4
7 PCR607 P CLIP 1
8 FNZ103 NUT 1 RHD models.
9 WL700101 WASHER, locking 1 RHD models.
10 14A5889 MOULDING, dash liner edge, Old English White 2
11 14A8008 MOULDING, dash liner edge, Plastichome 2
  ALE3478 MOULDING, dash liner edge, black 2
12 24A1582 DUST COVER, instrument 1


Centre Mounted Instrument with Auxilliary Gauges 1961-67

It should be noted that while several of the components listed here may not be currently available, the entire assembly can be replaced by the 1967-80 set up detailed in nos. 34 to 42, which is all available.  Once fitted in the car, there is very little visual difference between the two binnacle assemblies.

13 ADA3741 BINNACLE, instrument, Old English White 1
14 PMZ312 SCREW, binnacle to dash panel 4
15 LWZ403 WASHER, shakeproof 4
16 PWZ103 WASHER, plain 4
17 PCR607 P CLIP 1
18 FNZ103 NUT 1 RHD models.
19 WL700101 WASHER, locking 1 RHD models.
20 24A1582 DUST COVER, instrument 1
21 14A9815 COVER ASS'Y, instrument binnacle 1
22 14A9907 BEADING, cover, chrome 1 Included in cover assembly.
23 14A9796 CLIP, beading to cover 14 Included in cover assembly.
24 24A472 CLIP, beading joint 1
25 14A7031 PLUG, cover, panel light switch 1 When panel light switch not fitted.
26 PTP603 SCREW, cover to support plate, chrome 4
27 14A9904 PLATE, cover support 1
28 24A53 BRACKET, support plate to binnacle 2
29 CMZ308 SCREW, support plate to bracket 4
30 PMZ316 SCREW, bracket to binnacle 2
31 WL700101 WASHER, locking 2
32 PWZ203 WASHER, plain 2
33 14A9906 DISTANCE PIECE, bracket to binnacle 2


Centre Mounted Instrument with Auxilliary Gauges 1967-80

34 24A2702 BINNACLE, instrument 1
35 14A9907 BEADING, cover, chrome 1
36 14A9796 CLIP, beading to cover 14
37 24A472 CLIP, beading joint 1
38 PMZ312 SCREW, binnacle to dash panel 6
39 LWZ403 WASHER, shakeproof 6
40 PWZ103 WASHER, plain 6
41 FNZ103 NUT 1 RHD models.
42 WL700101 WASHER, locking 1 RHD models.


Offset Mounted Instruments 1969 On

43 CZH673 HOUSING, twin instruments, black with satin silver face 1 1969-82.
  BAU2063 HOUSING, twin instruments, black with matt grey face 1 1980-82; alternative.
  BAU2267 HOUSING, twin instruments, black 1 1982-85.
  CDU3231 HOUSING, twin instruments, Flint Grey 1 1985-90.
  YAQ100110LOY HOUSING, twin instruments, Granite 1 1991-96.  Use with one off JRC8059LOY plug on 1991-93 models.
  YAQ100120PMA HOUSING, twin instruments, black 1 1985-95.  Use with one off JRC8059PMA plug on 1985-93 models.
  YAQ100140PMA HOUSING, twin instruments, black 1 1995-96.
44 CZH1202 HOUSING, triple instruments, black with satin silver face 1 1969-84.
  BAU2073 HOUSING, triple instruments, black with matt grey face 1 1977-86; alternative.
  CDU3233 HOUSING, triple instruments, Flint Grey 1 1985-90.  Use with one off JRC8059PMA plug.
  YAQ100090LOY HOUSING, triple instruments, Granite 1 1991-96.  Use with one off JRC8059LOY plug on 1991-93 models.
  YAQ10004 HOUSING, triple instruments, black 1 1990-93, Cooper.
  YAQ100100PMA HOUSING, triple instruments, black 1 1986-95.  Use with one off JRC8059PMA plug on 1986-93 models.
  YAQ100150PMA HOUSING, triple instruments, black 1 1995-96.

Other colours of instrument housings from the 1980s may still be available.  If you require either a twin or triple instrument housing in Bitter Chocolate, Prussian Blue, or Coffee, please contact us for availability and price.  The only major difference design-wise in the housings was a piercing that was added on the face in the 1990s to take the warning lamp for the burglar alarm, which can be simply plugged on a car not so fitted.  Earlier colours of housings were in more recent years manufactured as spare parts to the later style with the hole and may also require the plug.

45 37H6119 CONE, housing 2/3 Included in housing.
46 JRC8059PMA PLUG, warning lamp hole, black 1 Use when burglar alarm not fitted.
  JRC8059LOY PLUG, warning lamp hole, Granite 1 Use when burglar alarm not fitted.
47 FNZ104 NUT, securing housing 4
48 PWZ204 WASHER, plain 4
49 LWZ204 WASHER, locking 4
50 BAU2055 CLIP, housing to instruments 4/6 Quantity increases for triple instrument housing.
51 CZH3503 FILLER, twin instrument housing to fascia 1 1969-92.
  FCY100010PMA FILLER, twin instrument housing to fascia 1 1993-96.
52 JPC6982 FILLER, triple instrument housing to fascia 1 1969-92.
  FCY100100PMA FILLER, triple instrument housing to fascia 1 1993-96.
53 FAY100080 PAD, anti-squeak 2 1993-96.
54 CZH3007 BRACKET, outer, twin instrument ass'y to fascia 1
55 CZH3008 BRACKET, inner, twin instrument ass'y to fascia 1
56 CZH245 BRACKET, triple instrument ass'y to fascia 1 RHD.
  CZH246 BRACKET, triple instrument ass'y to fascia 1 LHD.
57 CZH247 SUPPORT, upper, instrument ass'y 1
58 FNZ104 NUT, bracket to fascia 4
59 LWZ204 WASHER, locking 4
60 PWZ104 WASHER, plain 4
61 CZG3178 SCREW, instrument ass'y securing 3/4 Quantity increases for triple instrument ass'y.
62 37H4887 NUT, spire 3
63 YQU10256 BRACKET, control unit 1 1994 0n.
64 YQU10244 BRACKET, flasher unit to instrument ass'y 1 1991 on.
65 YQU10262 BRACKET, flasher unit/relay to instrument ass'y 1 1991 on, alternative.


Face Level Air Vents

Face level air vents or 'eyeball' vents were fitted to higher specification Minis as standard features from 1969 through to 1985, after which they were fitted to all models in the Mini line-up.  Actually, they first appeared long before 1969 on the Riley Elf and Wolseley Hornet, but as is often the case with those models their vents were of a unique design and have not been available for many years.

66 37H7034 VENT, face level, chrome 2 1969-75.
67 37H7035 HOUSING, rear, face level vent, RH 1 1969-75.
  37H7036 HOUSING, rear, face level vent, LH 1 1969-75.
68 CZH3835 VENT AND HOUSING, face level, black, RH 1 1976-96.
  CZH3836 VENT AND HOUSING, face level, black, LH 1 1976-96.
69 JPC8632 VENT, face level, black 2 1976-96; not veneered or alloy dashboards.
70 JBD100410PMA VENT, face level, black 2 1993-96; for veneered or alloy dashboards.
  JBD100750PMA VENT, face level, black 2 1997 on; for veneered or alloy dashboards.
71 JBB100550 DUCT, housing to face level vent 2 1993 on; for veneered or alloy dashboards.
72 JZL100050 FOAM STRIP, self adhesive, duct securing A/R 1993 on; for veneered or alloy dashboards.
73 JPC8633 HOUSING, rear, face level vent, RH 1 1976-97.
  JPC8634 HOUSING, rear, face level vent, LH 1 1976-97.
  JBB101000 HOUSING, rear, face level vent, RH 1 1998 on.
  JBB101010 HOUSING, rear, face level vent, LH 1 1998 on.
74 ALA6292 SEAL, vent housing 2 Included with vent housings.
75 PMZ310 SCREW, housing to body 8
76 WL700101 WASHER, locking 8
77 CZH658 BINNACLE, face level vent, RH 1 Not models with veneered or alloy dashboards.
  CZH659 BINNACLE, face level vent, LH 1 Not models with veneered or alloy dashboards.
View as:
Show items
Items 1 to 12 of 82 total
1 2 3 4 5 6 ...
Part No: YQU10256
  In Stock
11 points earn (£0.11)
£14.03 inc VAT
£11.69 ex VAT
Part No: YAQ100150PMA
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: YAQ100140PMA
  In Stock
52 points earn (£0.52)
£62.40 inc VAT
£52.00 ex VAT
Part No: YAQ100120PMA
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: YAQ100110LOY
  In Stock
39 points earn (£0.39)
£46.80 inc VAT
£39.00 ex VAT
Part No: YAQ100100PMA
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: YAQ100090LOY
  In Stock
49 points earn (£0.49)
£58.80 inc VAT
£49.00 ex VAT
Part No: YAQ10004
  No Longer Available
£0.00 inc VAT
£0.00 ex VAT
Part No: PMZ316
  In Stock
£0.36 inc VAT
£0.30 ex VAT
Part No: PMZ312
  In Stock
£0.31 inc VAT
£0.26 ex VAT
Part No: LGA7548
  Currently Unavailable
61 points earn (£0.61)
£73.96 inc VAT
£61.63 ex VAT
Part No: JRC8059PMA
  In Stock
1 points earn (£0.01)
£2.34 inc VAT
£1.95 ex VAT
Add to cart
Items 1 to 12 of 82 total
1 2 3 4 5 6 ...
Request a free catalogue
